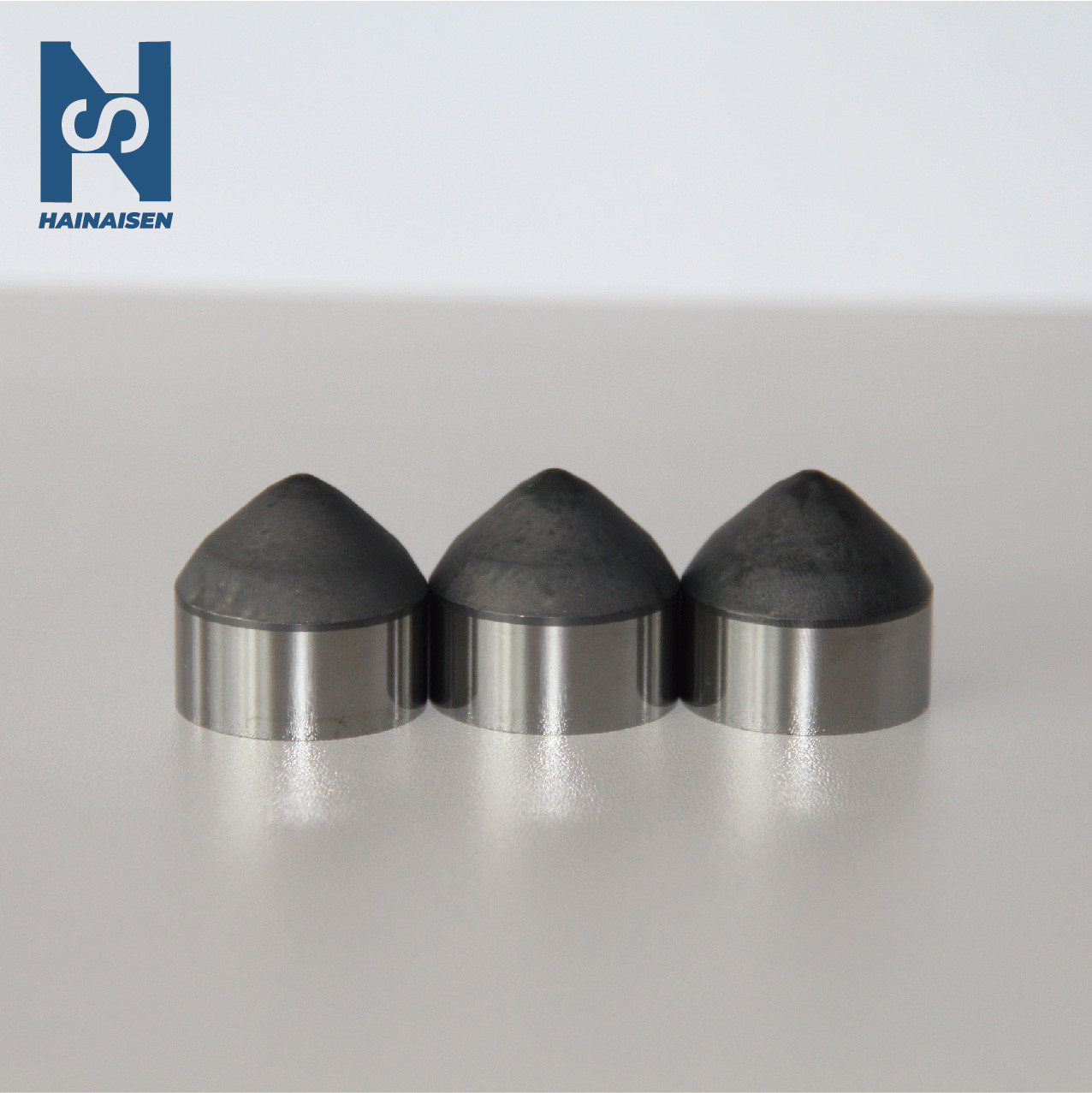

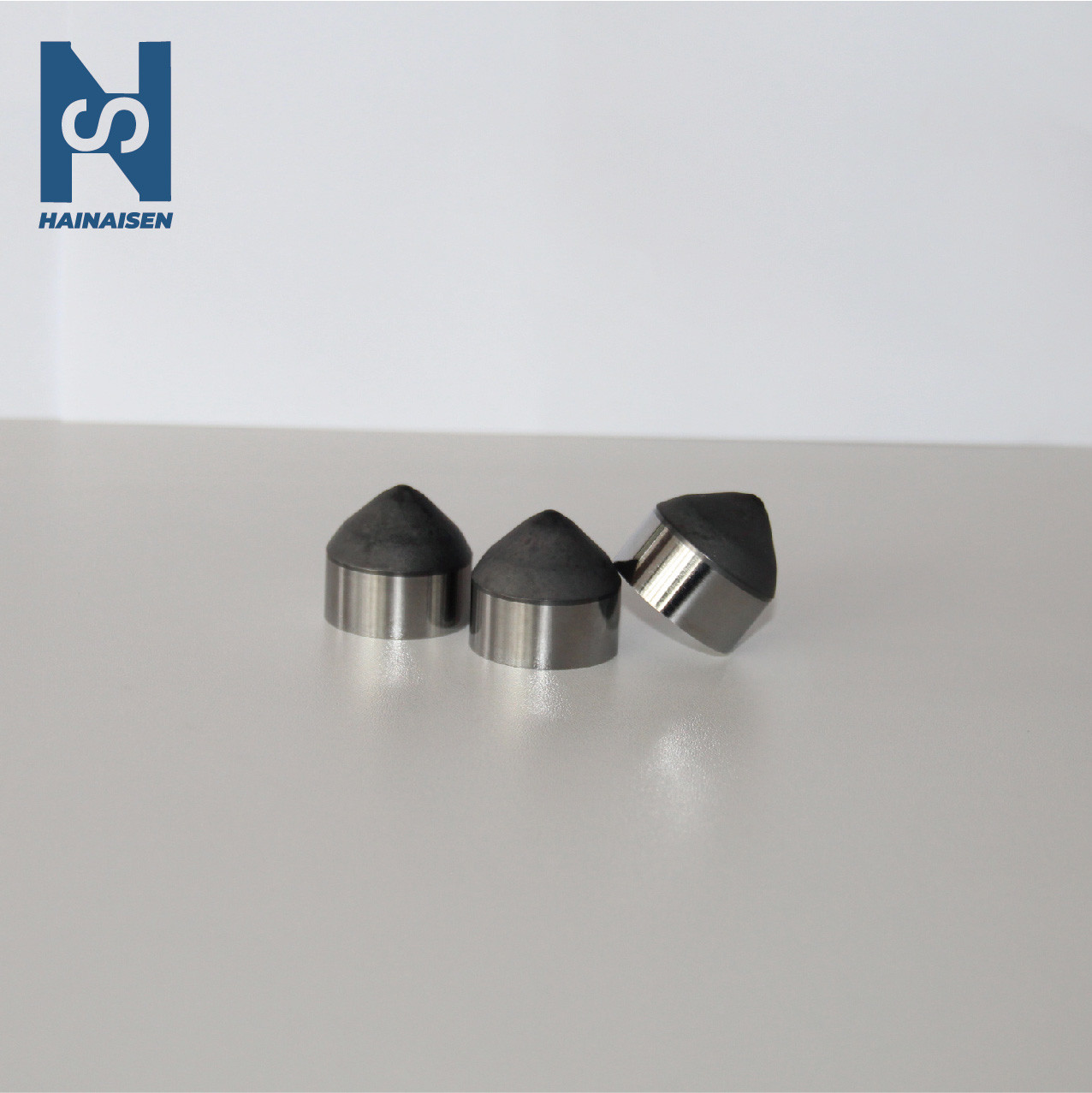

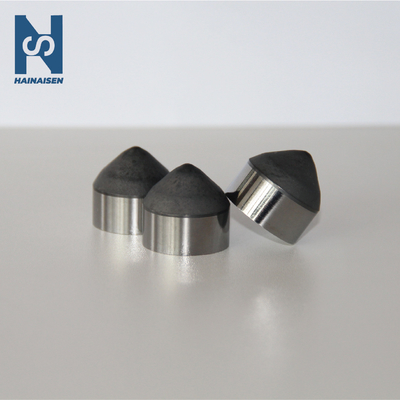

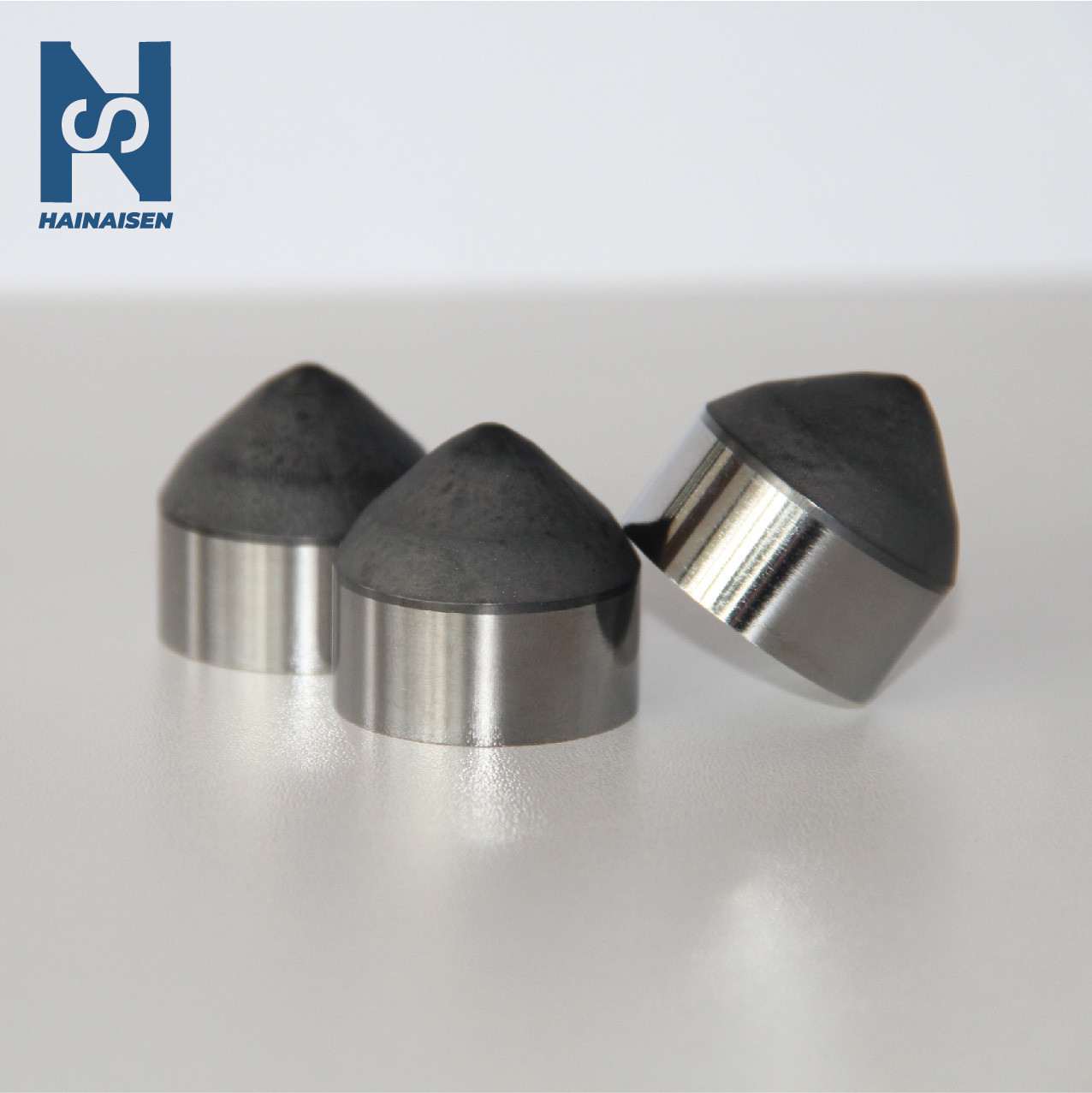

30mm Cone Diamond PDC Cutter Inserts For Well Drilling
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Height | 30mm | Color | Black, Sliver, Customized |
|---|---|---|---|
| Material | Carbide, Carbon Steel | Use | Well Drilling,Coal Mining,Ore Mining |
| Advantage | High Wear Resistant,Most Favorable Prices | Diamond Thickness | 1-2.5mm,2.0mm |
| High Light | PDC Carbide Cutter Inserts,Cone Diamond Cutter 30mm,Well Drilling Cone PDC Cutter |
||
Product Description
PDC Cutter Tungsten Carbide Cutters For Drilling Tools Pdc Diamond
PDC is made of diamond particles and cemented carbide substrate sintered under the conditions of 60,000 atmospheres and temperatures above 1500 °C. The product has both the high wear resistance of diamond and the high toughness of cemented carbide. The PDC produced by Nine Stones is mainly used as cutting teeth for oil drilling bits, which are used in oil and gas drilling and other fields.
| Product Model | Diameter | Height | SR Radius of Dome | Exposed Height |
| C0606 | 6.421 | 6.350 | 2 | 2.4 |
| C0609 | 6.400 | 9.300 | 1.5 | 3.3 |
| C1114 | 11.176 | 13.716 | 2.0 | 5.5 |
| C1210 | 12.000 | 10.000 | 2.0 | 6.0 |
| C1214 | 12.000 | 14.500 | 2 | 6 |
| C1217 | 12.000 | 17.000 | 2.0 | 6.0 |
| C1218 | 12.000 | 18.000 | 2.0 | 6.0 |
| C1310 | 13.700 | 9.855 | 2.3 | 6.4 |
| C1313 | 13.440 | 13.200 | 2 | 6.5 |
| C1315 | 13.440 | 15.000 | 2.0 | 6.5 |
| C1316 | 13.440 | 16.500 | 2 | 6.5 |
| C1317 | 13.440 | 17.050 | 2 | 6.5 |
| C1318 | 13.440 | 18.000 | 2.0 | 6.5 |
| C1319 | 13.440 | 19.050 | 2.0 | 6.5 |
| C1420 | 14.300 | 20.000 | 2 | 6.5 |
| C1421 | 14.870 | 21.000 | 2.0 | 6.2 |
| C1621 | 15.880 | 21.000 | 2.0 | 7.9 |
| C1925 | 19.050 | 25.400 | 2.0 | 9.8 |
| C2525 | 25.400 | 25.400 | 2.0 | 10.9 |
| C3028 | 29.900 | 28.000 | 3 | 14.6 |
| C3129 | 30.500 | 28.500 | 3.0 | 14.6 |
FAQ
1. Are you a trading company or manufacturer?
We have been a professional manufacturer of PDC bits since 2013.
2. Whether accept customized according to clients' requirements?
Yes, We accept customized products, no matter what size and what type. Please feel free to contact us.
3. Is it produced according to the standard? And can I expect a quality product?
Yes, all our activities are accredited to ISO9001: 2015, both in products and services. At the same time, mature production technology will ensure the quality to satisfy the international request. We have strictly inspection in the production. Our bits are exported to the Middle East, Europe, North America, South America, Australia, and other countries and regions.
4. About lead time and shipping time?
The lead time depends on the quantity of the order. Usually, it will take 3-5 days to ship to Tianjin Port or XI'AN Airport, China. For the small order or urgent order, we can send you by air once the order is confirmed.
5. How do you guarantee your quality?
We select the advanced production technology and equipment, strictly control the whole production process, and inspect the finished drill bits. We can also make several design changes according to the customer's feedback, and finally ensure the customer's excellent drilling effect.
