Well Drilling PDC Cutter Oilfield 1913 Tungsten Carbide Button

Certification
China Shaanxi Hainaisen Petroleum Technology Co.,Ltd certification
China Shaanxi Hainaisen Petroleum Technology Co.,Ltd certification
I'm Online Chat Now

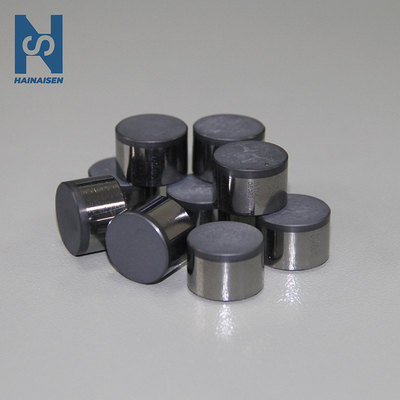

Well Drilling PDC Cutter Oilfield 1913 Tungsten Carbide Button

Well Drilling PDC Cutter Oilfield 1913 Tungsten Carbide Button
Well Drilling PDC Cutter Oilfield 1913 Tungsten Carbide Button Well Drilling PDC Cutter Oilfield 1913 Tungsten Carbide Button Well Drilling PDC Cutter Oilfield 1913 Tungsten Carbide Button Well Drilling PDC Cutter Oilfield 1913 Tungsten Carbide Button

Large Image :  Well Drilling PDC Cutter Oilfield 1913 Tungsten Carbide Button

Product Details:
Place of Origin: China
Brand Name: Hainaisen
Certification: ISO9001
Model Number: 1913
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: To be negotiable
Packaging Details: customized
Delivery Time: 5-7 work days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs per day

Well Drilling PDC Cutter Oilfield 1913 Tungsten Carbide Button

Description
Processing Type: Forging Use: Well Drilling,Oil Or Gas Drilling
Certification: API,ISO Size: Required,customized
Cutter Model: 1913
High Light:

well drilling PDC Cutter

,

oilfield drilling PDC Cutter

,

1913 tungsten carbide button

PDC Cutter Tungsten Carbide Cutters Drilling Tools



PDC tools are mainly used for oil drilling equipment and wearing parts of oil drill bits, coal drill bits and machining tools. They are made from high-quality synthetic diamond powder and tungsten carbide powder.

PDC tools combine the high hardness and wear resistance of diamond and tungsten carbide and can be used in a wide variety of drill tools.



Cutter Model Diameter(mm) Total Height(mm) Height of Diamond Layer Chamfer of Diamond Layer
0808 8.0±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1008 10.0±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1308 13.44±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1313 13.44±0.05 13.00±0.1 2.0±0.1 0.41±0.05
1608 16.0±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1613 16.0±0.05 13.00±0.1 2.0±0.1 0.41±0.05
1616 16.0±0.05 16.0±0.1 2.0±0.1 0.41±0.05
1908 19.0±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1913 19.0±0.05 13.00±0.1 2.0±0.1 0.41±0.05
1916 19.0±0.05 16.0±0.1 2.0±0.1 0.41±0.05
2216 22.22±0.05 16.0±0.1 2.0±0.1 0.41±0.05
2219 22.22±0.05 19.0±0.1 2.0±0.1 0.41±0.05



Advantages of PDC inserts: 10 times longer life than cemented carbide!

1.High hardness, high wear resistance, high impact resistance.
2. The service life is 5-10 times longer than ordinary cemented carbide, which significantly reduces the frequency of replacing drill bits.
3. Effective and stable drilling speed, protect equipment and reduce drilling cost (accounting for 30%-40% of total cost)



Well Drilling PDC Cutter Oilfield 1913 Tungsten Carbide Button 0



Our Principle

We adhere to the principles of high quality, excellent service, and the courage to innovate. We also adhere to provide efficient products and quality services. Please feel free to contact us if you are interested in our drills. We are looking forward to cooperating with you!



FAQ

1. Is your company a distributor or a manufacturer?
A: We are a professional Rock Bits manufacturer in China.


2. How about your products?
A: All our activities are accredited to ISO9001: 2008, both in products and services, at the same time, mature production technology ensuring the quality satisfy international request. We have many high quality prducts (the more information).


3. What is the Packaging & Delivery?
A: We used high quality export carton or standard export woodern case.


4. How to order the products?
A: Send the inquiry with detail item description or with Model number. If there is no packing demand we take it as sea-way packing. If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.



Communication knows no boundaries, no matter how far we are. Please feel free to contact us if you have any questions.
