Half PCD Polycrystalline Diamond Carbide , 1mm PDC Diamond

Certification
China Shaanxi Hainaisen Petroleum Technology Co.,Ltd certification
China Shaanxi Hainaisen Petroleum Technology Co.,Ltd certification
I'm Online Chat Now

Half PCD Polycrystalline Diamond Carbide , 1mm PDC Diamond

Half PCD Polycrystalline Diamond Carbide , 1mm PDC Diamond
Half PCD Polycrystalline Diamond Carbide , 1mm PDC Diamond Half PCD Polycrystalline Diamond Carbide , 1mm PDC Diamond Half PCD Polycrystalline Diamond Carbide , 1mm PDC Diamond Half PCD Polycrystalline Diamond Carbide , 1mm PDC Diamond Half PCD Polycrystalline Diamond Carbide , 1mm PDC Diamond

Large Image :  Half PCD Polycrystalline Diamond Carbide , 1mm PDC Diamond

Product Details:
Place of Origin: China
Brand Name: Hainaisen
Certification: ISO9001
Model Number: 1305ban
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: To be negotiable
Packaging Details: customized
Delivery Time: 5-7 work days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs per day

Half PCD Polycrystalline Diamond Carbide , 1mm PDC Diamond

Description
Sample: Available Feature: Top Impact-resistance,Hardness And High Heat Resistance Carbide
Packaging: Carton Outside,Plastic Box Inside Diamond Thickness: 1-2.5mm
Size: Half Cutter Material: Tungsten
High Light:

Half PCD Polycrystalline Diamond

,

Carbide PCD Polycrystalline Diamond

,

1mm PDC Diamond

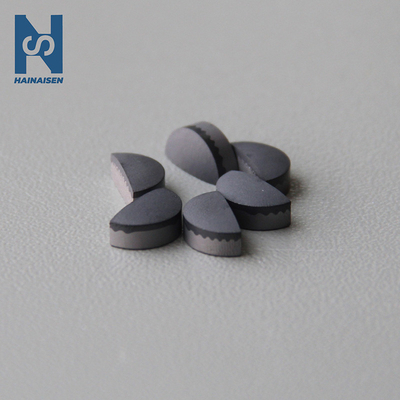

Half Cutter Polycrystalline Diamond Compact Tungsten Carbide Cutter



PDC cutters are mainly used for oil drilling equipment and wearing parts of oil drill bits, coal drill bits and machining tools. They are made from high-quality synthetic diamond powder and tungsten carbide powder.

PDC tools combine the high hardness and wear resistance of diamond and tungsten carbide and can be used in a wide variety of drill tools.



Cutter Model Diameter(mm) Total Height(mm) Height of Diamond Layer Chamfer of Diamond Layer
0808 8.0±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1008 10.0±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1308 13.44±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1313 13.44±0.05 13.00±0.1 2.0±0.1 0.41±0.05
1608 16.0±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1613 16.0±0.05 13.00±0.1 2.0±0.1 0.41±0.05
1616 16.0±0.05 16.0±0.1 2.0±0.1 0.41±0.05
1908 19.0±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1913 19.0±0.05 13.00±0.1 2.0±0.1 0.41±0.05
1916 19.0±0.05 16.0±0.1 2.0±0.1 0.41±0.05
2216 22.22±0.05 16.0±0.1 2.0±0.1 0.41±0.05
2219 22.22±0.05 19.0±0.1 2.0±0.1 0.41±0.05



1.High hardness, high wear resistance, high impact resistance.
2. The service life is 5-10 times longer than ordinary cemented carbide, which significantly reduces the frequency of replacing drill bits.
3. Effective and stable drilling speed, protect equipment and reduce drilling cost (accounting for 30%-40% of total cost)



Half PCD Polycrystalline Diamond Carbide , 1mm PDC Diamond 0



Our Principle

We adhere to the principles of high quality, high quality service, and innovation. We also insist on providing efficient products and excellent service. Please feel free to contact us if you are interested in our drills. We look forward to working with you!



FAQ

1. Are you manufacture?
A: Yes, we are pdc cutter manufacturer since 2013.



2. Where are you located in?
A: We are located in Xi'an City Shaanxi China.



3. What are your main products?
A: Our mainly products are PDC drill bit, core drill bit, coal mining bits, pdc cutters and other drilling bits.



4. What's your MOQ?
A: Our MOQ is 100 pieces, but if you just want sample test quality we can surely supply to you.



5. How many days with your delivery?
A: We can delivery goods with 7 days if we have goods in stock, if need produce with your demand we will negotiation with you.





Communication knows no boundaries, no matter how far we are. Please feel free to contact us if you have any questions.
