Product Details:
|
| Material: | Tungsten Carbide | Condition: | New |
|---|---|---|---|
| Use: | Well Drilling,Coal Mining | Certification: | ISO |
| Cutter Model: | 1308 | ||
| High Light: | polycrystalline PDC Cutter,tungsten PDC Cutter,1308 fixed cutter bits |
||

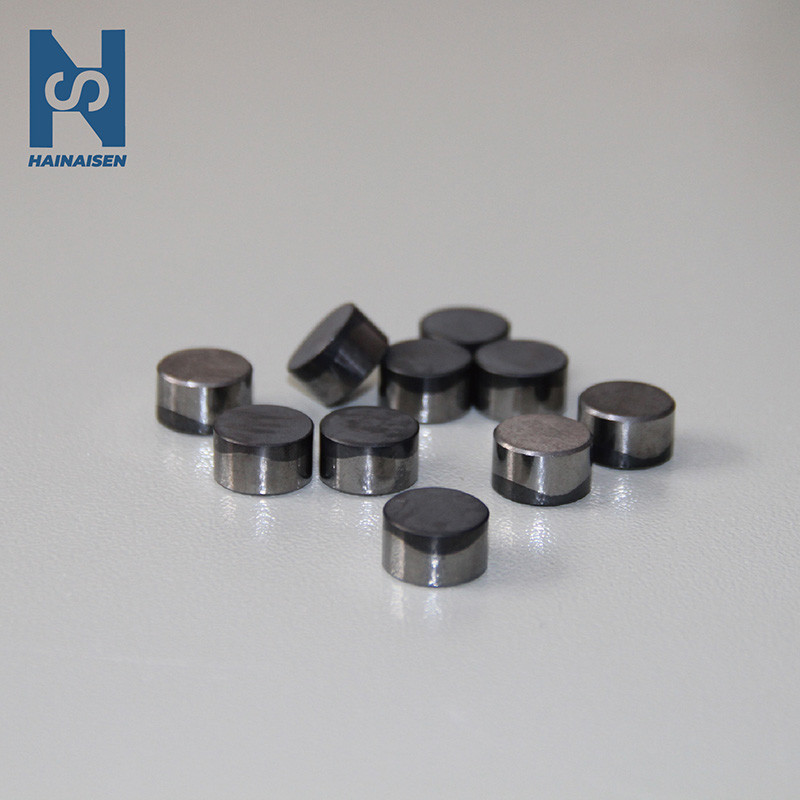

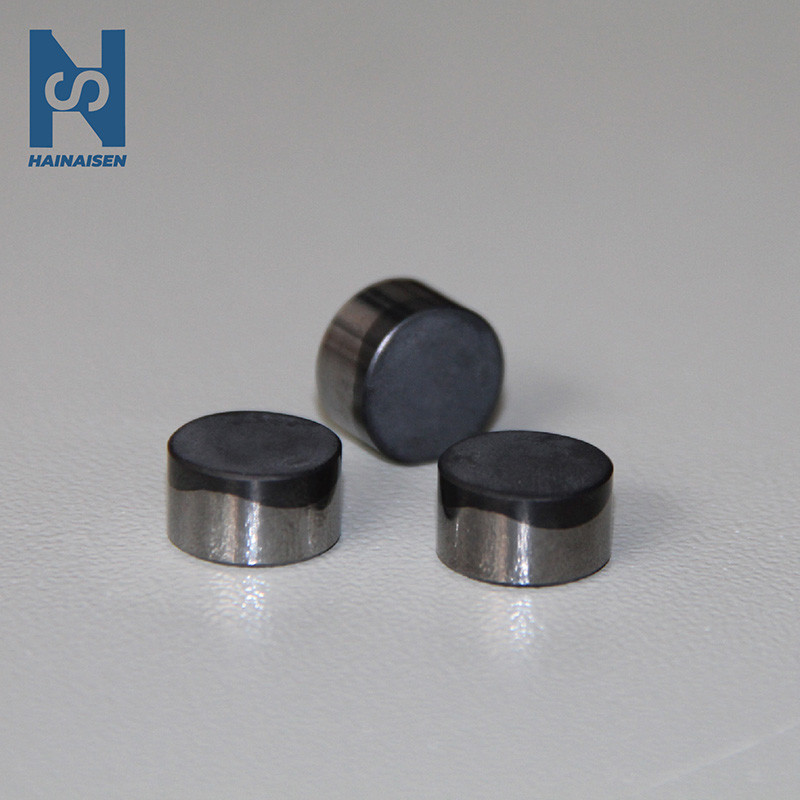

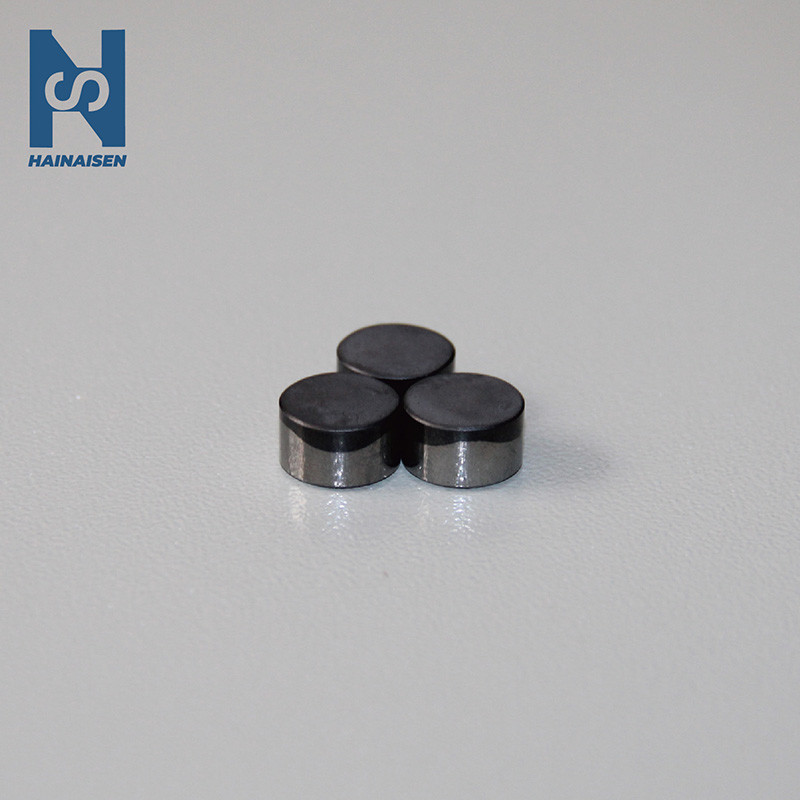

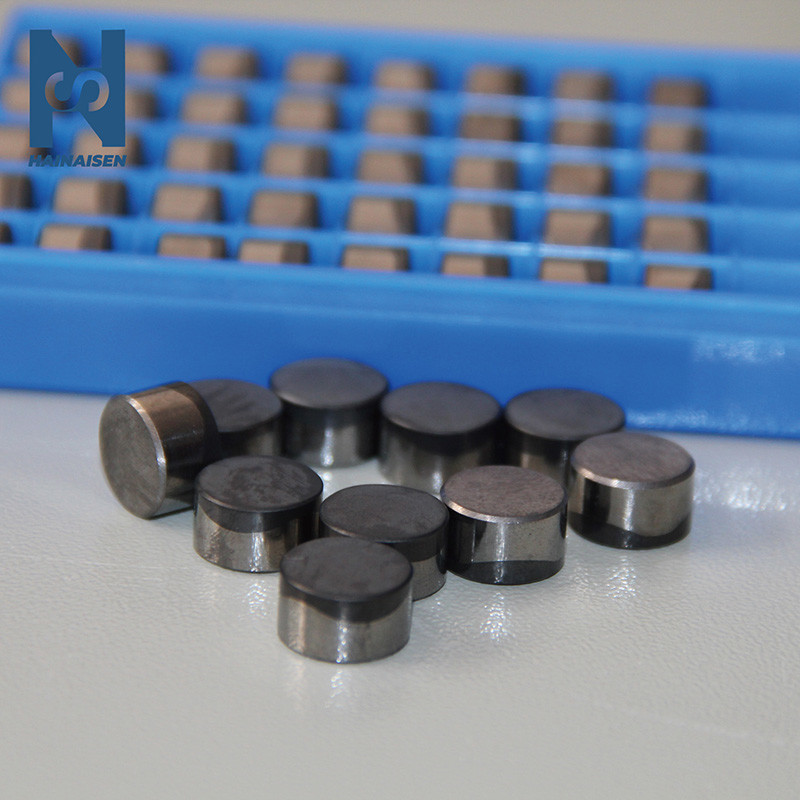

PDC Cutter Tungsten Carbide Cutters For Drilling Tools PDC Diamond
PDC cutters are mainly used for oil drilling equipment and wear parts of oil drill bits, coal drill bits and machining tools. They are made of high quality synthetic diamond powder and tungsten carbide powder. Combining the high hardness and wear resistance of diamond and tungsten carbide, PDC tools are used in a wide range of different drilling tools.
| Cutter Model | Diameter(mm) | Total Height(mm) | Height of Diamond Layer | Chamfer of Diamond Layer |
| 0808 | 8.0±0.05 | 8.0±0.1 | 2.0±0.1 | 0.41±0.05 |
| 1008 | 10.0±0.05 | 8.0±0.1 | 2.0±0.1 | 0.41±0.05 |
| 1308 | 13.44±0.05 | 8.0±0.1 | 2.0±0.1 | 0.41±0.05 |
| 1313 | 13.44±0.05 | 13.00±0.1 | 2.0±0.1 | 0.41±0.05 |
| 1608 | 16.0±0.05 | 8.0±0.1 | 2.0±0.1 | 0.41±0.05 |
| 1613 | 16.0±0.05 | 13.00±0.1 | 2.0±0.1 | 0.41±0.05 |
| 1616 | 16.0±0.05 | 16.0±0.1 | 2.0±0.1 | 0.41±0.05 |
| 1908 | 19.0±0.05 | 8.0±0.1 | 2.0±0.1 | 0.41±0.05 |
| 1913 | 19.0±0.05 | 13.00±0.1 | 2.0±0.1 | 0.41±0.05 |
| 1916 | 19.0±0.05 | 16.0±0.1 | 2.0±0.1 | 0.41±0.05 |
| 2216 | 22.22±0.05 | 16.0±0.1 | 2.0±0.1 | 0.41±0.05 |
| 2219 | 22.22±0.05 | 19.0±0.1 | 2.0±0.1 | 0.41±0.05 |
Advantages of PDC inserts: 10 times longer service life than carbide!
1. High hardness, high wear resistance and high impact resistance.
2. The service life is 5-10 times longer than that of ordinary cemented carbide, which significantly reduces the frequency of replacing drill bits.
3. Effective and stable drilling speed, protect equipment and reduce drilling cost (30%-40% of total cost)
Our Principle
We are insisting in the principle of high quality, superior service and the courage to innovate. We are also adhering to providing the efficient products and excellent services. If you are interested in our drill bits, please feel free to contact us. We are looking forward to cooperating with you!
FAQ
1. Accepted Payment Terms:
T/T, L/C, D/P, Paypal, Western Union, etc.
2. Guarantee and Warranty of Quality:
We are API&ISO certified factory, we have one integral set of system to control quality in production and make after-sale service.
3. Referenced Letters:
We have many Referenced Letter issued by our customers from many countries for checking our quality and service.
4. Can I visit your factory online?
Yes, we can show our workshop, warehouse, offices online by WeChat, Whatsapp or Skype.
