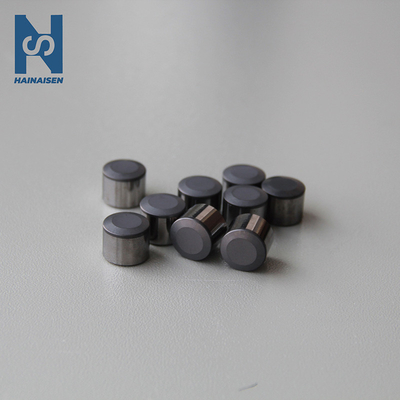

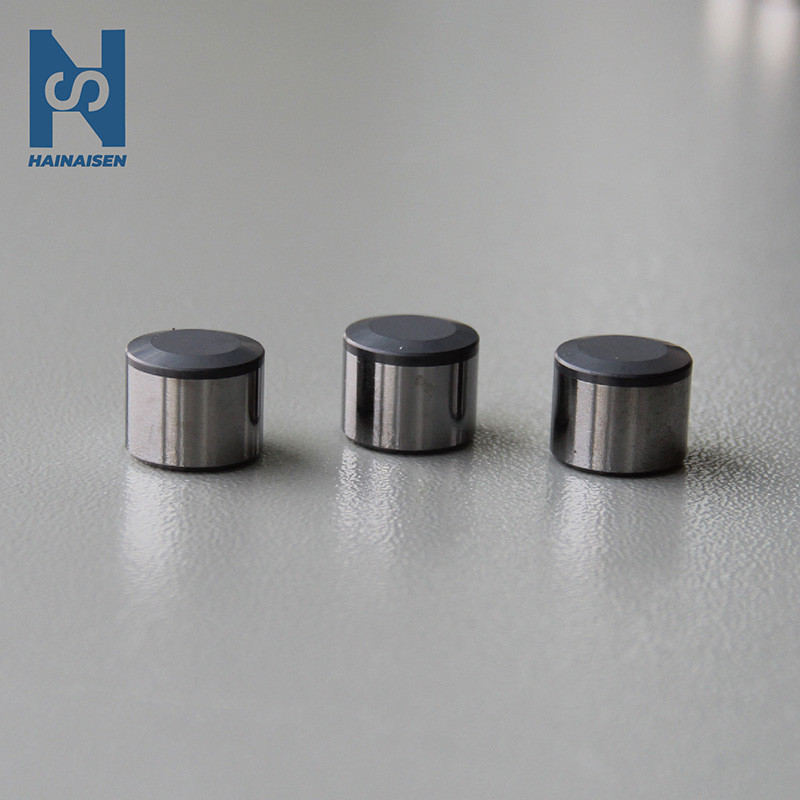

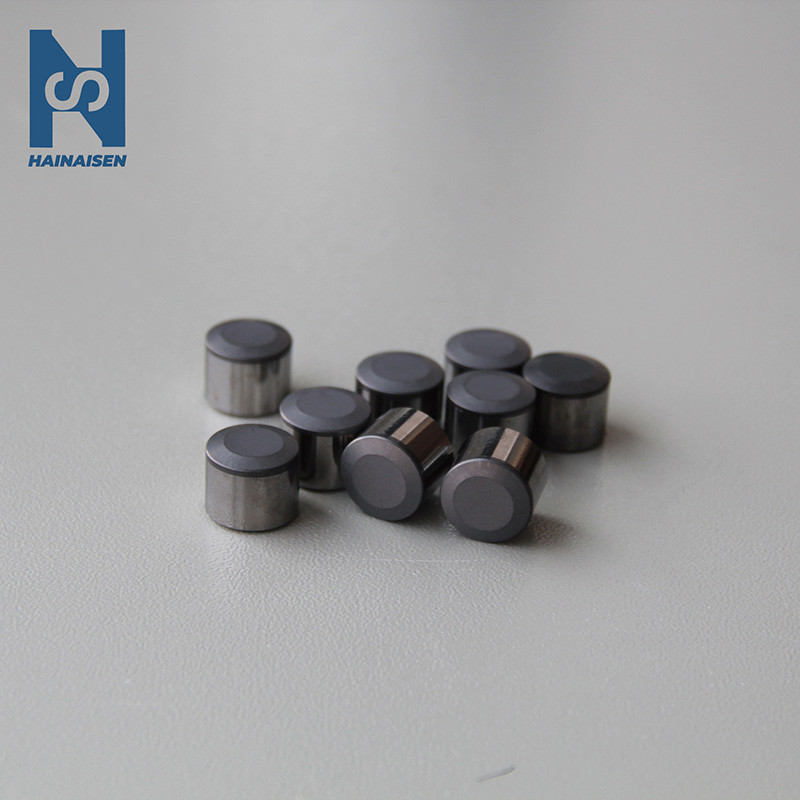

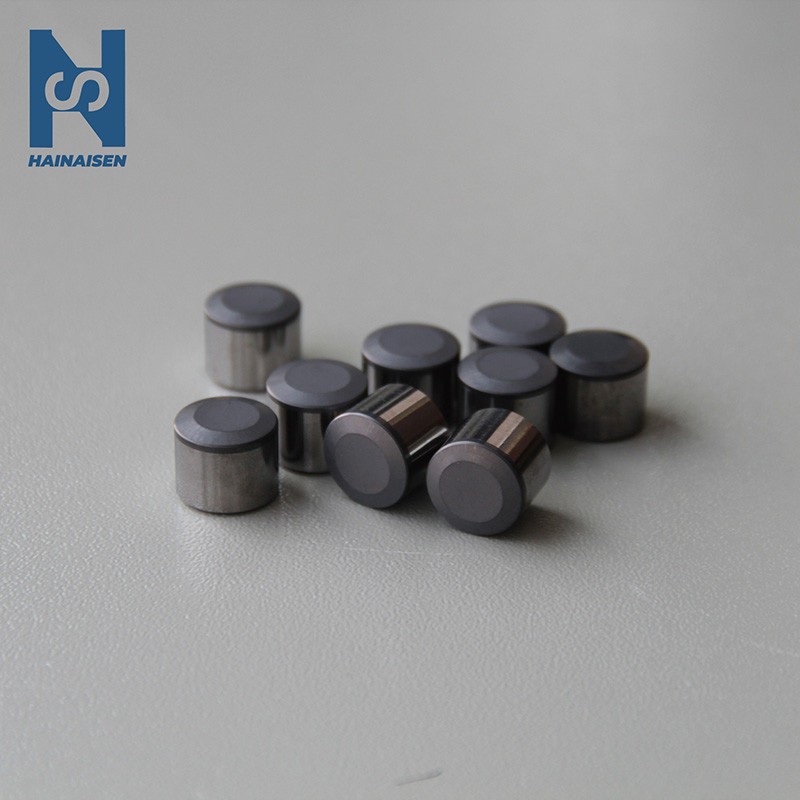

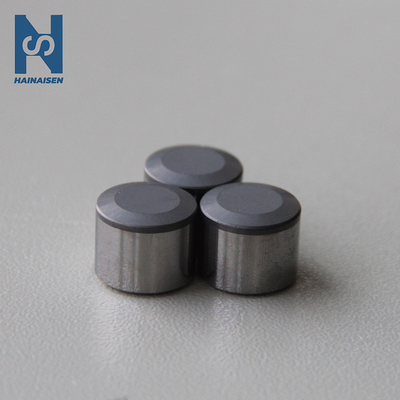

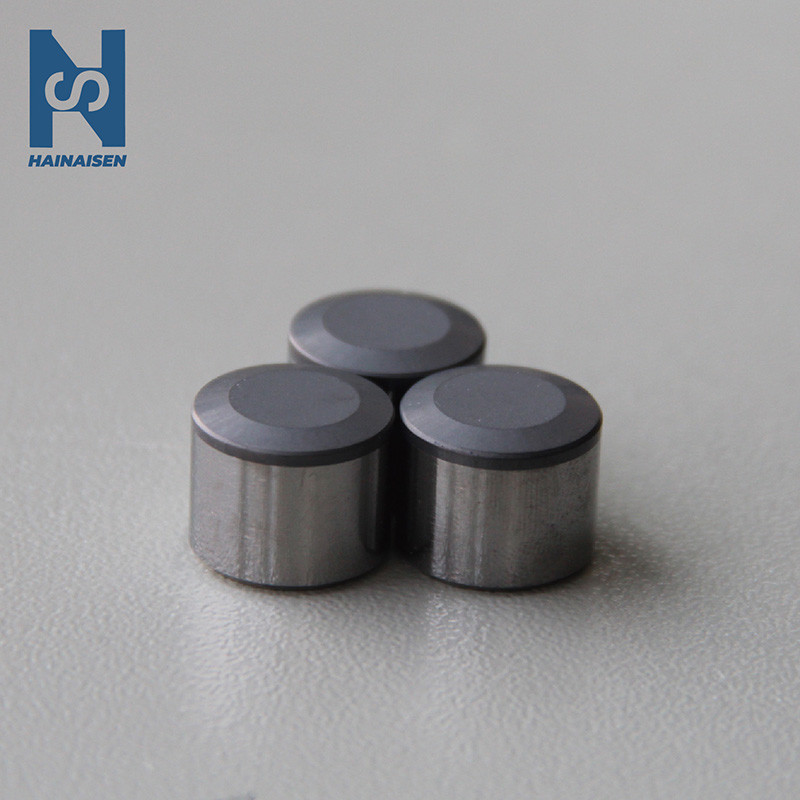

Arc PDC Synthetic Polycrystalline Diamond 1908 Hole Cutter

Arc PDC Synthetic Polycrystalline Diamond 1908 Hole Cutter
Arc PDC Synthetic Polycrystalline Diamond 1908 Hole Cutter Arc PDC Synthetic Polycrystalline Diamond 1908 Hole Cutter Arc PDC Synthetic Polycrystalline Diamond 1908 Hole Cutter Arc PDC Synthetic Polycrystalline Diamond 1908 Hole Cutter Arc PDC Synthetic Polycrystalline Diamond 1908 Hole Cutter

Large Image :  Arc PDC Synthetic Polycrystalline Diamond 1908 Hole Cutter

Product Details:
Place of Origin: China
Brand Name: Hainaisen
Certification: ISO9001
Model Number: hu1613
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: To be negotiable
Packaging Details: customized
Delivery Time: 5-7 work days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs per day

Arc PDC Synthetic Polycrystalline Diamond 1908 Hole Cutter

Description
Advantage: High Wear Resistant,Most Favorable Prices Sample: Available
Feature: High Wear Resistance Packaging: Plastic Box Inside
Type: Arc Angle Chamfer Of Diamond Layer: 0.41±0.05
High Light:

arc synthetic polycrystalline diamond

,

PDC synthetic polycrystalline diamond

,

1908 PDC hole cutter

PDC Cutter Arc Angle PDC Cutter Manufacturers Oilfield Drilling Tool



PDC tools are mainly used for oil drilling equipment and wearing parts of oil drill bits, coal drill bits and machining tools. They are made from high-quality synthetic diamond powder and tungsten carbide powder.

PDC tools combine the high hardness and wear resistance of diamond and tungsten carbide and can be used in a wide variety of drill tools.



Cutter Model Diameter(mm) Total Height(mm) Height of Diamond Layer Chamfer of Diamond Layer
0808 8.0±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1008 10.0±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1308 13.44±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1313 13.44±0.05 13.00±0.1 2.0±0.1 0.41±0.05
1608 16.0±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1613 16.0±0.05 13.00±0.1 2.0±0.1 0.41±0.05
1616 16.0±0.05 16.0±0.1 2.0±0.1 0.41±0.05
1908 19.0±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1913 19.0±0.05 13.00±0.1 2.0±0.1 0.41±0.05
1916 19.0±0.05 16.0±0.1 2.0±0.1 0.41±0.05
2216 22.22±0.05 16.0±0.1 2.0±0.1 0.41±0.05
2219 22.22±0.05 19.0±0.1 2.0±0.1 0.41±0.05



Advantages of PDC inserts: 10 times longer life than cemented carbide!

1, high hardness, high wear resistance, high impact resistance.
2. The service life is 5-10 times longer than ordinary cemented carbide, which significantly reduces the frequency of replacing drill bits.
3. Effective and stable drilling speed, protect equipment and reduce drilling cost (accounting for 30%-40% of total cost)



Arc PDC Synthetic Polycrystalline Diamond 1908 Hole Cutter 0



Our Principle

We adhere to the principles of high quality, excellent service, and the courage to innovate. We also adhere to provide efficient products and quality services. Please feel free to contact us if you are interested in our drills. We are looking forward to cooperating with you!



FAQ

1. How can we guarantee the product quality?
We provide pre-production sample before mass production.
We provide final inspection before shipment.



2. Why you choose us?
We are factory of drill bits, so the price is affordable, and the quality can be controlled. Also, we can do customized products according to client's request.
Our promises: reasonable prices, short production period, and satisfactory after-sales services.



3. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW, Express Delivery;
Accepted Payment Type: T/T, L/C, PayPal, Western Union,Escrow;
Language Spoken: English, Chinese, Russian.


4. How to order the products?
Send the inquiry with detail item description or with Model number. If there is no packing demand we take it as sea-way packing. If possible please attach one reference picture to avoid any misunderstanding or any links from our website for us to get a better understanding.



Communication knows no boundaries, no matter how far we are. Please feel free to contact us if you have any questions.
