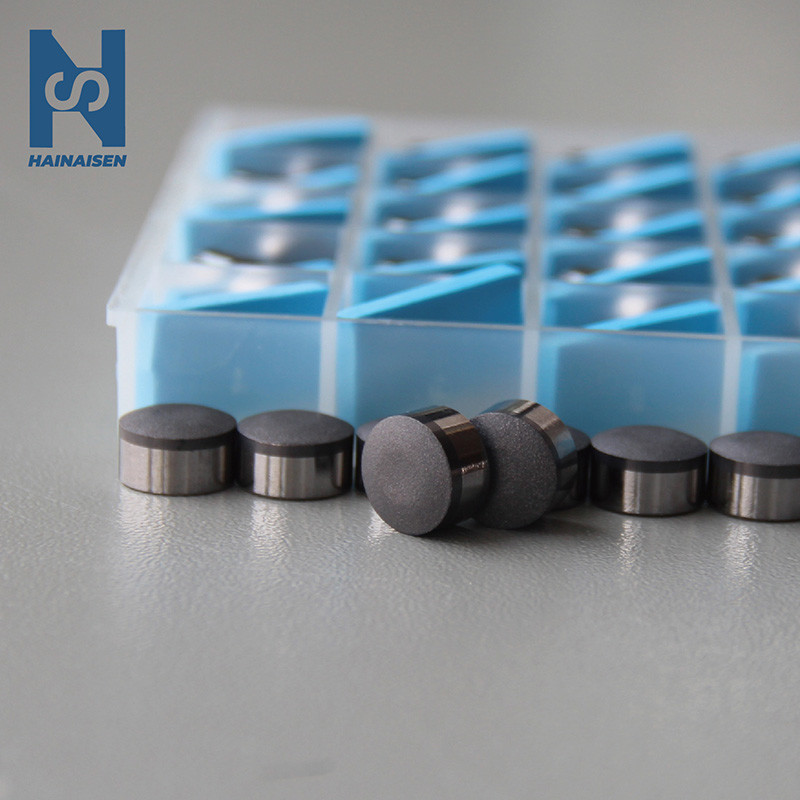

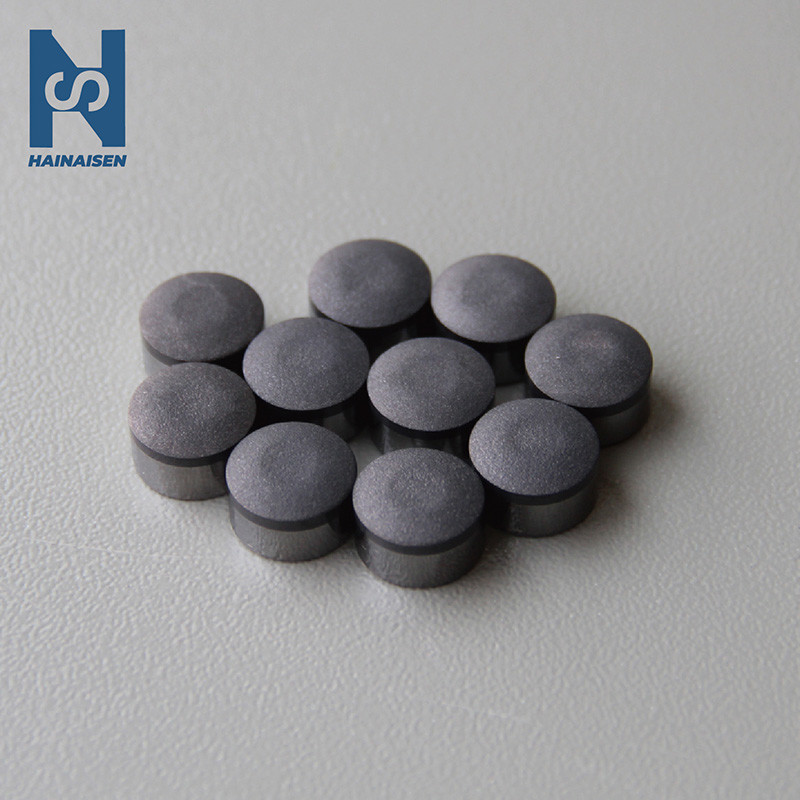

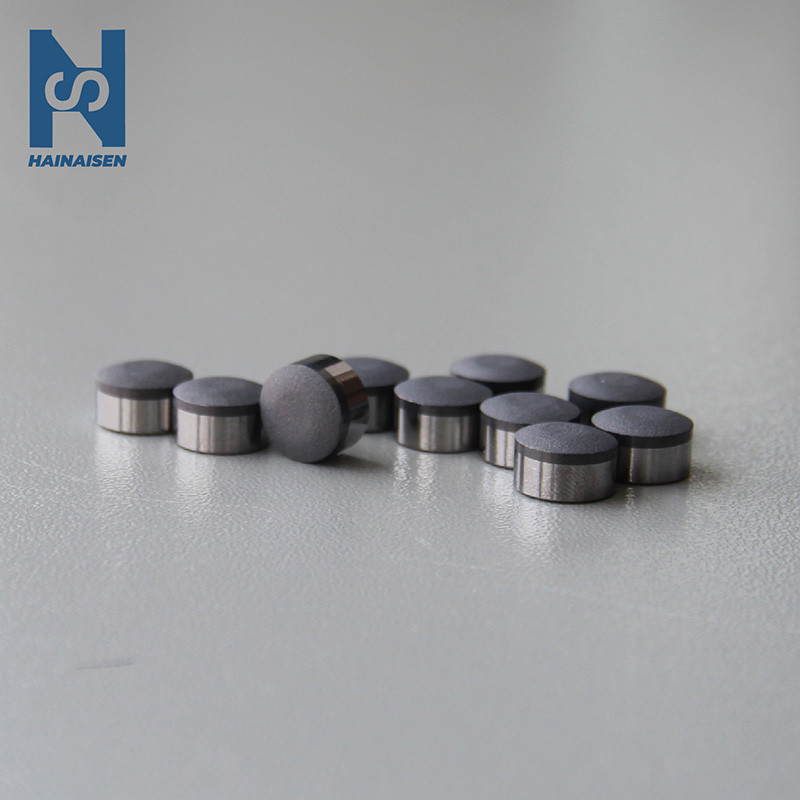

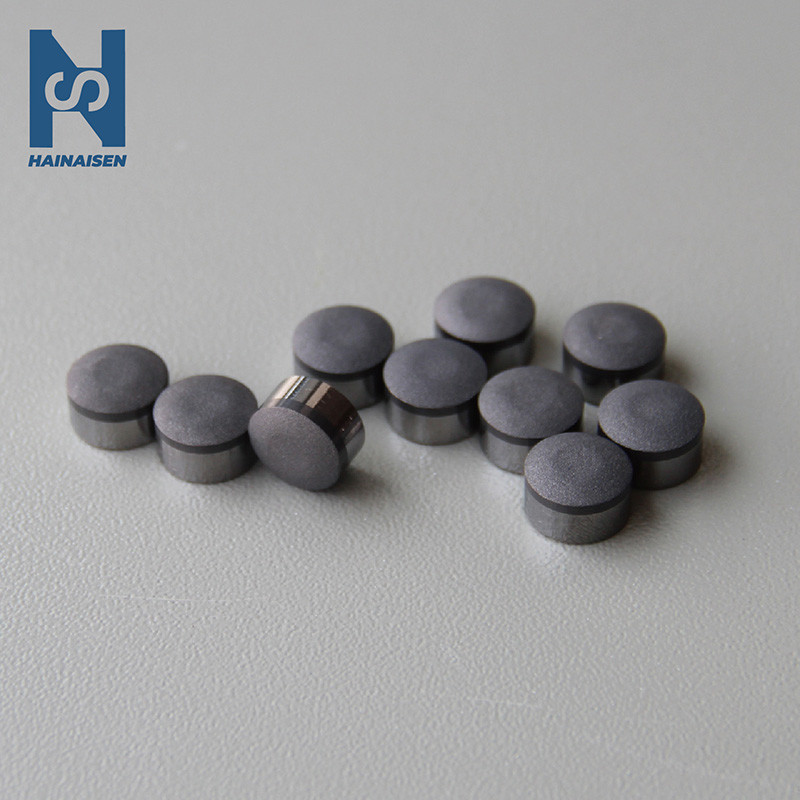

Flat Synthetic Polycrystalline Diamond Cutter 16mm PDC Insert

Flat Synthetic Polycrystalline Diamond Cutter 16mm PDC Insert
Flat Synthetic Polycrystalline Diamond Cutter 16mm PDC Insert Flat Synthetic Polycrystalline Diamond Cutter 16mm PDC Insert Flat Synthetic Polycrystalline Diamond Cutter 16mm PDC Insert Flat Synthetic Polycrystalline Diamond Cutter 16mm PDC Insert

Large Image :  Flat Synthetic Polycrystalline Diamond Cutter 16mm PDC Insert

Product Details:
Place of Origin: China
Brand Name: Hainaisen
Certification: ISO9001
Model Number: pinghu1308
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: To be negotiable
Packaging Details: customized
Delivery Time: 5-7 work days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs per day

Flat Synthetic Polycrystalline Diamond Cutter 16mm PDC Insert

Description
Application: Coal Mining,cutting Advantage: Most Favorable Prices,Hight Effiency
Packing: Plastic Box,wooden Box Certification: Iso9001
Type: Flat Arc
High Light:

flat polycrystalline diamond cutter

,

synthetic polycrystalline diamond cutter

,

16mm PDC Insert

Flat Arc Tooth Cutter PDC Cutter Polycrystalline Diamond Compact



Flat Arc Tooth PDC cutters are mainly used for oil drilling equipment and wearing parts of oil drill bits, coal drill bits and machining tools. They are made from high-quality synthetic diamond powder and tungsten carbide powder.

PDC tools combine the high hardness and wear resistance of diamond and tungsten carbide and can be used in a wide variety of drill tools.

Cutter Model Diameter(mm) Total Height(mm) Height of Diamond Layer Chamfer of Diamond Layer
0808 8.0±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1008 10.0±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1308 13.44±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1313 13.44±0.05 13.00±0.1 2.0±0.1 0.41±0.05
1608 16.0±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1613 16.0±0.05 13.00±0.1 2.0±0.1 0.41±0.05
1616 16.0±0.05 16.0±0.1 2.0±0.1 0.41±0.05
1908 19.0±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1913 19.0±0.05 13.00±0.1 2.0±0.1 0.41±0.05
1916 19.0±0.05 16.0±0.1 2.0±0.1 0.41±0.05
2216 22.22±0.05 16.0±0.1 2.0±0.1 0.41±0.05
2219 22.22±0.05 19.0±0.1 2.0±0.1 0.41±0.05



1.High hardness, high wear resistance, high impact resistance.
2. The service life is 5-10 times longer than ordinary cemented carbide, which significantly reduces the frequency of replacing drill bits.
3. Effective and stable drilling speed, protect equipment and reduce drilling cost (accounting for 30%-40% of total cost)



Flat Synthetic Polycrystalline Diamond Cutter 16mm PDC Insert 0



Our Principle

We adhere to the principles of high quality, high quality service, and innovation. We also insist on providing efficient products and excellent service. Please feel free to contact us if you are interested in our drills. We look forward to working with you!



FAQ

1. Are you a trading company or manufacturer?

We have been a professional manufacturer of PDC bits since 2013.



2. Whether accept customized according to clients' requirements?

Yes, We accept customized products, no matter what size and what type. Please feel free to contact us.



3. About lead time and shipping time?

The lead time depends on the quantity of the order. Usually, it will take 3-5 days to ship to Tianjin Port or XI'AN Airport, China. For the small order or urgent order, we can send you by air once the order is confirmed.



4. Is it produced according to the standard? And can I expect a quality product?

Yes, all our activities are accredited to ISO9001: 2015, both in products and services. At the same time, mature production technology will ensure the quality to satisfy the international request. We have strictly inspection in the production. Our bits are exported to the Middle East, Europe, North America, South America, Australia, and other countries and regions.





Communication knows no boundaries, no matter how far we are. Please feel free to contact us if you have any questions.
