High Heat Resistance PCD Tungsten Carbide Cutter Coal Mining Tool
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Sample | Available | Feature | Hardness And High Heat Resistance |
|---|---|---|---|
| Product Name | PDC Cutter, Pdc Inserts | Application | Coal Mining, Rock Drilling |
| High Light | Coal Mining PDC Tool,High Heat Resistance PDC Cutter,PCD Tungsten Carbide Cutter Bits |
||
Product Description

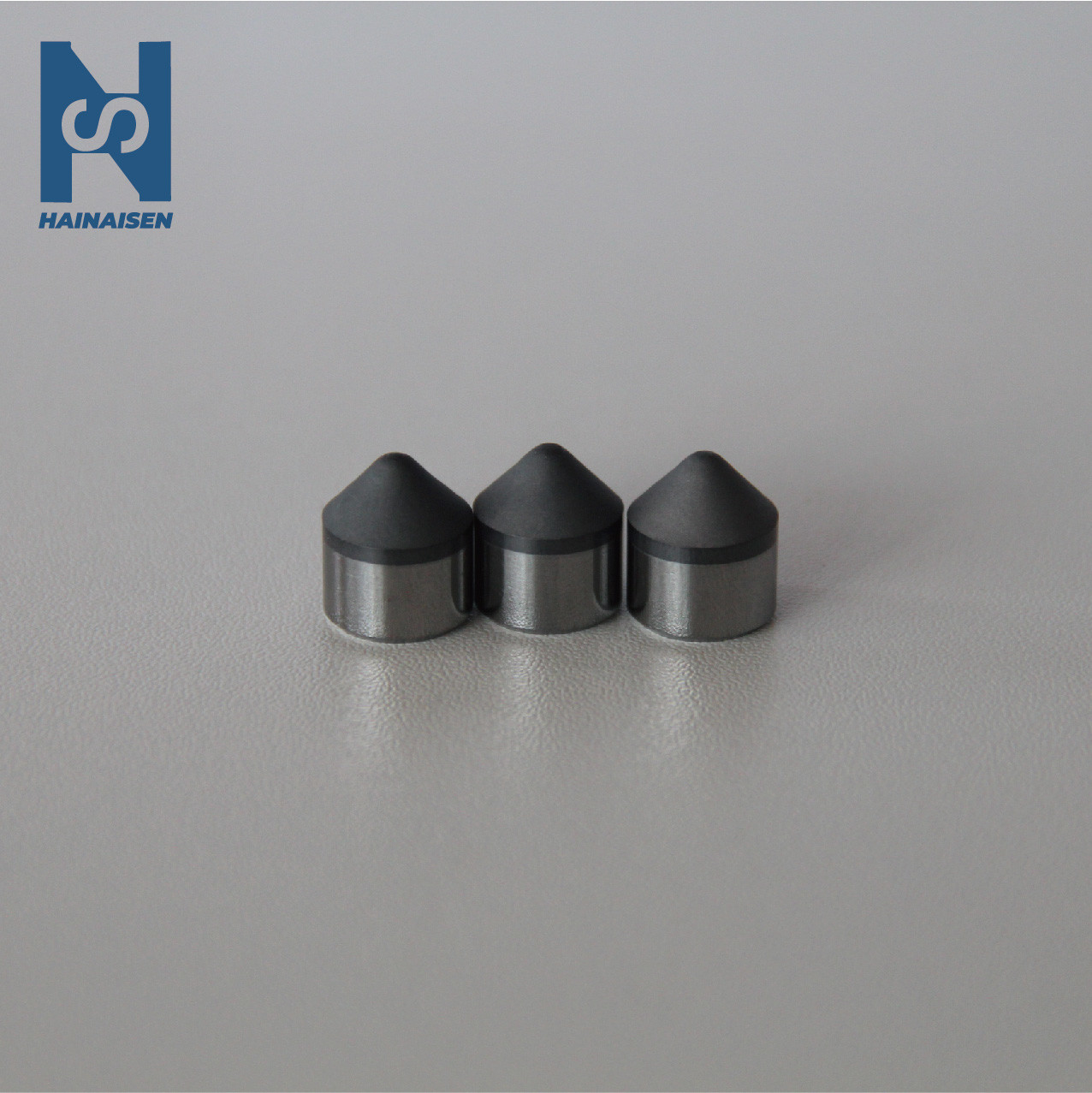

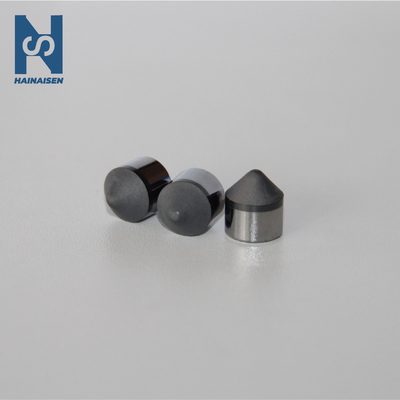

PDC Cutter Tungsten Carbide Cutters For Drilling Tools Pdc Diamond
PDC tools are mainly used for oil drilling equipment and wearing parts of oil drill bits, coal drill bits and machining tools. They are made of high quality synthetic diamond powder and tungsten carbide powder. PDC tools combine the high hardness and wear resistance of diamond and tungsten carbide and can be used in a variety of drilling tools.
| Product Model | Diameter | Height | SR Radius of Dome | Exposed Height |
| C0606 | 6.421 | 6.350 | 2 | 2.4 |
| C0609 | 6.400 | 9.300 | 1.5 | 3.3 |
| C1114 | 11.176 | 13.716 | 2.0 | 5.5 |
| C1210 | 12.000 | 10.000 | 2.0 | 6.0 |
| C1214 | 12.000 | 14.500 | 2 | 6 |
| C1217 | 12.000 | 17.000 | 2.0 | 6.0 |
| C1218 | 12.000 | 18.000 | 2.0 | 6.0 |
| C1310 | 13.700 | 9.855 | 2.3 | 6.4 |
| C1313 | 13.440 | 13.200 | 2 | 6.5 |
| C1315 | 13.440 | 15.000 | 2.0 | 6.5 |
| C1316 | 13.440 | 16.500 | 2 | 6.5 |
| C1317 | 13.440 | 17.050 | 2 | 6.5 |
| C1318 | 13.440 | 18.000 | 2.0 | 6.5 |
| C1319 | 13.440 | 19.050 | 2.0 | 6.5 |
| C1420 | 14.300 | 20.000 | 2 | 6.5 |
| C1421 | 14.870 | 21.000 | 2.0 | 6.2 |
| C1621 | 15.880 | 21.000 | 2.0 | 7.9 |
| C1925 | 19.050 | 25.400 | 2.0 | 9.8 |
| C2525 | 25.400 | 25.400 | 2.0 | 10.9 |
| C3028 | 29.900 | 28.000 | 3 | 14.6 |
| C3129 | 30.500 | 28.500 | 3.0 | 14.6 |
Advantages of PDC cutters: 10 times longer life than carbides!
1.High hardness, high wear resistance, high impact resistance.
2. The service life is 5 to 10 times longer than ordinary cemented carbide, which significantly reduces the frequency of replacing drill bits.
3. Effective and stable drilling speed, protect equipment and reduce drilling cost (30%-40% of total cost)
Our Principle
We adhere to the principles of high quality, excellent service and innovation. We also adhere to provide efficient products and quality services. If you are interested in our drills, please feel free to contact us. We look forward to working with you!
FAQ
1. Whether accept customized according to clients' requirements?
Yes, We accept customized products, no matter what size and what type. Please feel free to contact us.
2. About lead time and shipping time?
The lead time depends on the quantity of the order. Usually, it will take 3-5 days to ship to Tianjin Port or XI'AN Airport, China. For the small order or urgent order, we can send you by air once the order is confirmed.
3. Is it produced according to the standard? And can I expect a quality product?
Yes, all our activities are accredited to ISO9001: 2015, both in products and services. At the same time, mature production technology will ensure the quality to satisfy the international request. We have strictly inspection in the production. Our bits are exported to the Middle East, Europe, North America, South America, Australia, and other countries and regions.
4. How do you guarantee your quality?
We select the advanced production technology and equipment, strictly control the whole production process, and inspect the finished drill bits. We can also make several design changes according to the customer's feedback, and finally ensure the customer's excellent drilling effect.
5. What is your payment terms?
Our payment terms: T/T (normally 30% deposit ,balance 70% before shippment )
or LC at sight.
