Cemented Carbide Buttons Polycrystalline Diamond Cutter Drilling Tool
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Sample | Available | Feature | Hardness And High Heat Resistance Carbide |
|---|---|---|---|
| Machine Type | Drilling Tool | Type | Bucket Teeth,Cutting Tools |
| High Light | Cemented Carbide Buttons PDC Cutter,Drilling Polycrystalline Diamond Cutter,Hard Polycrystalline Diamond Cutter |
||
Product Description

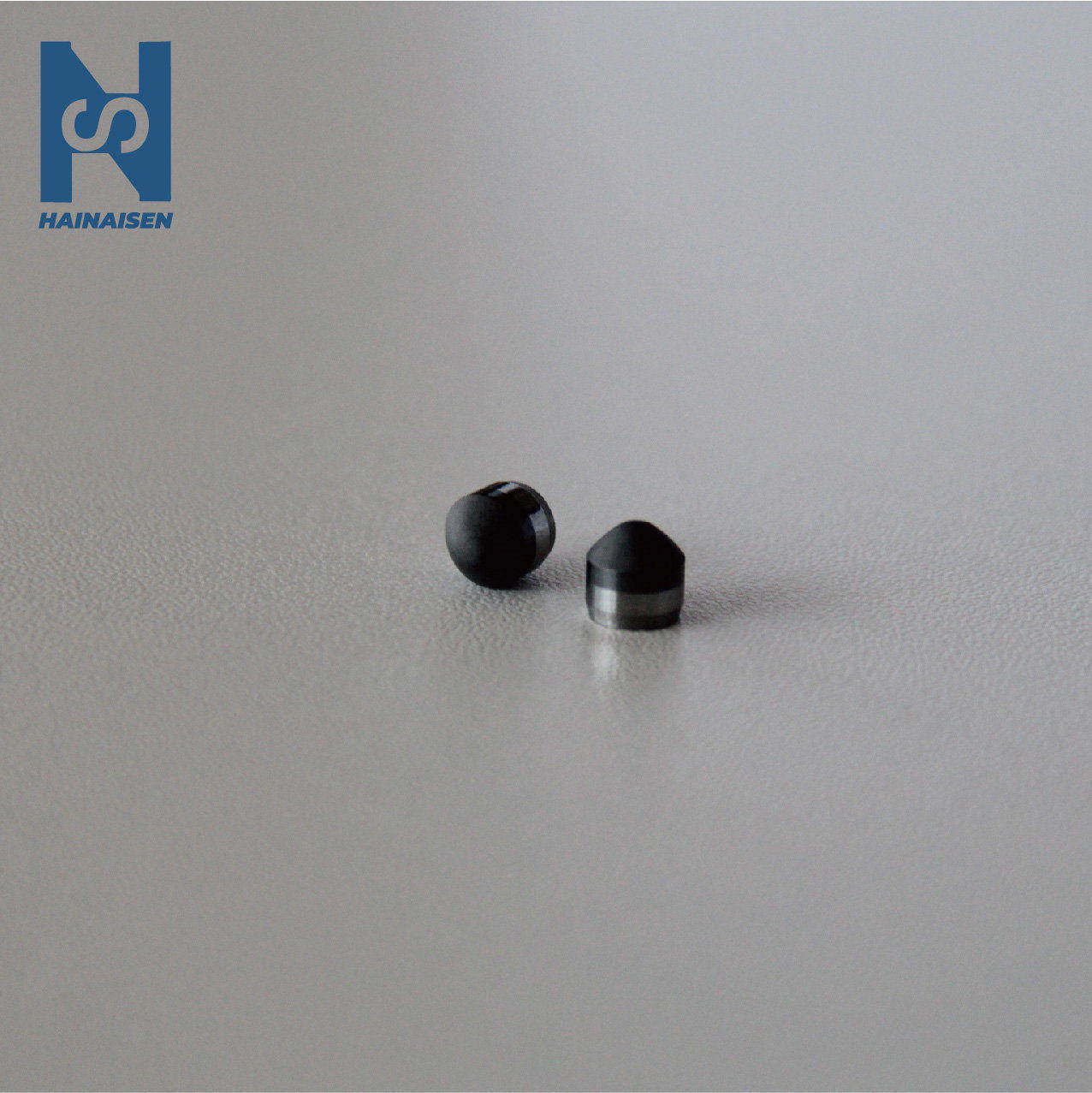

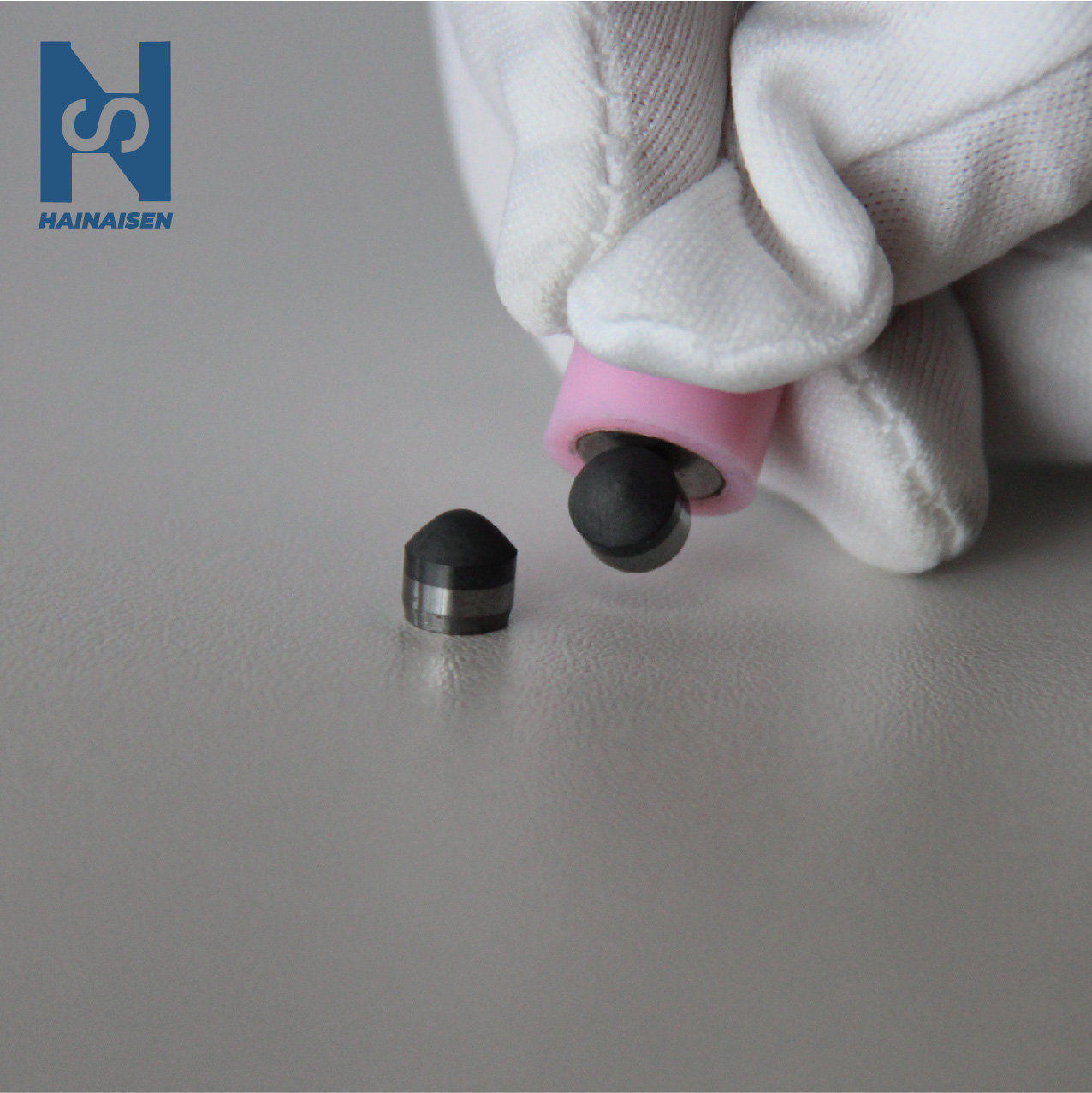

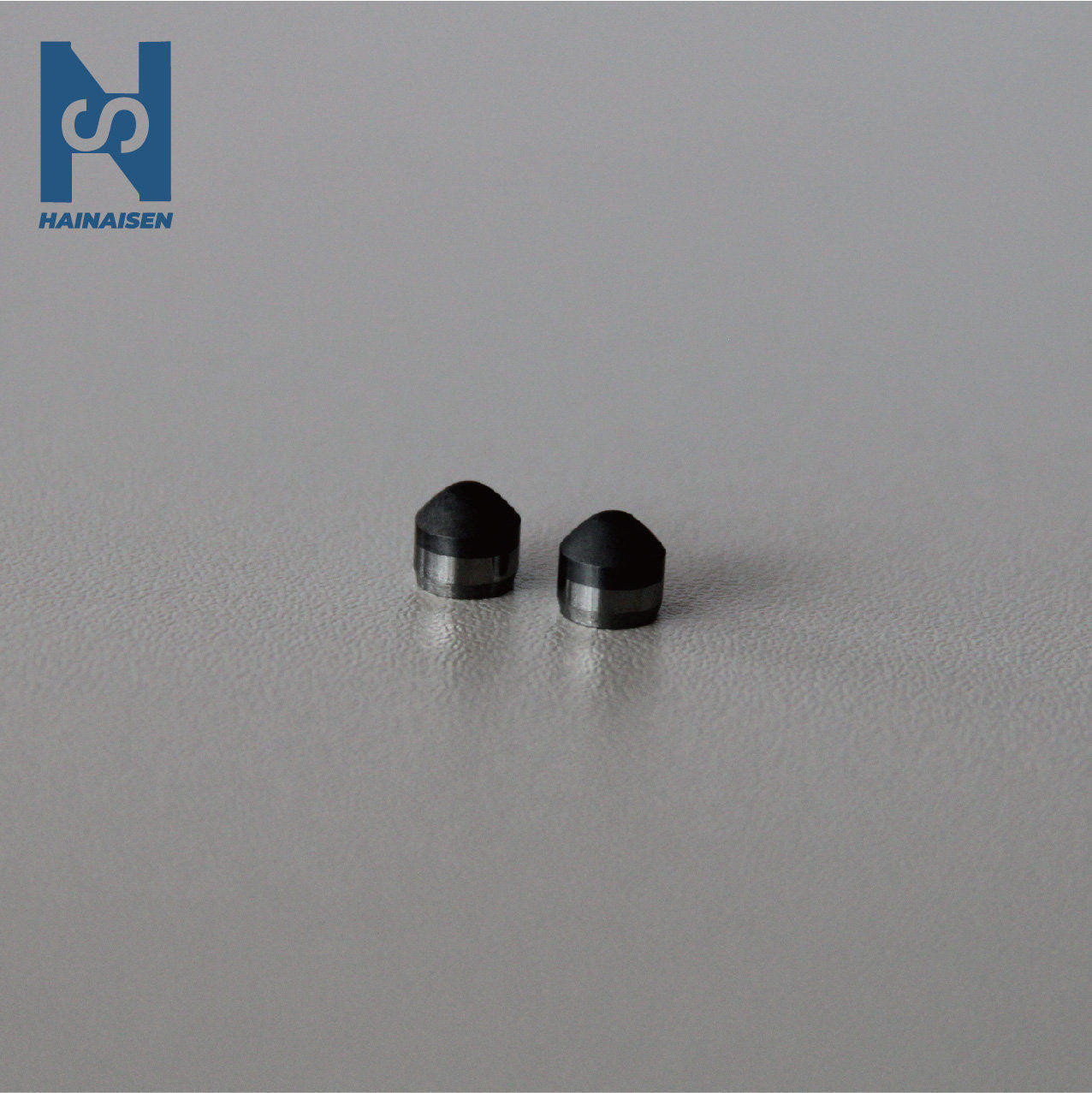

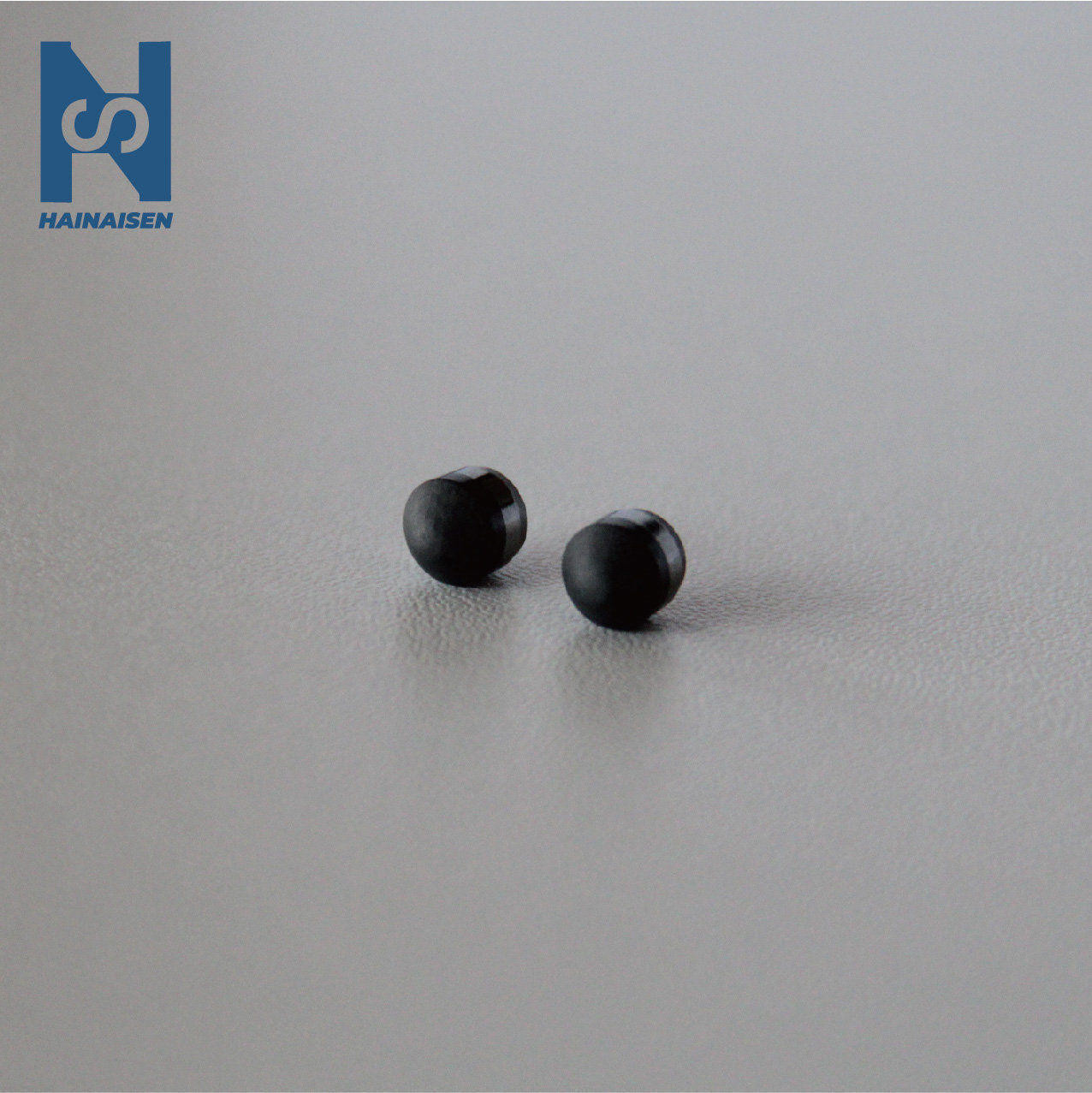

PDC Cutter Tungsten Carbide Cutters For Drilling Tools Pdc Diamond
PDC cutting tools are mainly used in oil drilling equipment and wearing parts of oil drill bits, coal drill bits and machining tools. They are made of high quality synthetic diamond powder and tungsten carbide powder. PDC tools combine the high hardness and wear resistance of diamond and tungsten carbide for a wide variety of drilling tools.
| Product Model | Diameter | Height | SR Radius of Dome | Exposed Height |
| C0606 | 6.421 | 6.350 | 2 | 2.4 |
| C0609 | 6.400 | 9.300 | 1.5 | 3.3 |
| C1114 | 11.176 | 13.716 | 2.0 | 5.5 |
| C1210 | 12.000 | 10.000 | 2.0 | 6.0 |
| C1214 | 12.000 | 14.500 | 2 | 6 |
| C1217 | 12.000 | 17.000 | 2.0 | 6.0 |
| C1218 | 12.000 | 18.000 | 2.0 | 6.0 |
| C1310 | 13.700 | 9.855 | 2.3 | 6.4 |
| C1313 | 13.440 | 13.200 | 2 | 6.5 |
| C1315 | 13.440 | 15.000 | 2.0 | 6.5 |
| C1316 | 13.440 | 16.500 | 2 | 6.5 |
| C1317 | 13.440 | 17.050 | 2 | 6.5 |
| C1318 | 13.440 | 18.000 | 2.0 | 6.5 |
| C1319 | 13.440 | 19.050 | 2.0 | 6.5 |
| C1420 | 14.300 | 20.000 | 2 | 6.5 |
| C1421 | 14.870 | 21.000 | 2.0 | 6.2 |
| C1621 | 15.880 | 21.000 | 2.0 | 7.9 |
| C1925 | 19.050 | 25.400 | 2.0 | 9.8 |
| C2525 | 25.400 | 25.400 | 2.0 | 10.9 |
| C3028 | 29.900 | 28.000 | 3 | 14.6 |
| C3129 | 30.500 | 28.500 | 3.0 | 14.6 |
Advantages of PDC cutters: 10 times longer life than carbides!
1.High hardness, high wear resistance, high impact resistance.
2. The service life is 5 to 10 times longer than ordinary cemented carbide, which significantly reduces the frequency of replacing drill bits.
3. Effective and stable drilling speed, protect equipment and reduce drilling cost (30%-40% of total cost)
Our Principle
We adhere to the principles of high quality, excellent service and innovation. We also adhere to provide efficient products and quality services. If you are interested in our drills, please feel free to contact us. We look forward to working with you!
FAQ
1. Are you a trading company or manufacturer?
We have been a professional manufacturer of PDC bits since 2013.
2. Whether accept customized according to clients' requirements?
Yes, We accept customized products, no matter what size and what type. Please feel free to contact us.
3. About lead time and shipping time?
The lead time depends on the quantity of the order. Usually, it will take 3-5 days to ship to Tianjin Port or XI'AN Airport, China. For the small order or urgent order, we can send you by air once the order is confirmed.
4. Is it produced according to the standard? And can I expect a quality product?
Yes, all our activities are accredited to ISO9001: 2015, both in products and services. At the same time, mature production technology will ensure the quality to satisfy the international request. We have strictly inspection in the production. Our bits are exported to the Middle East, Europe, North America, South America, Australia, and other countries and regions.
