Rock 1616 Tungsten Carbide 1313 Fixed Cutter Drill Bits

Rock 1616 Tungsten Carbide 1313 Fixed Cutter Drill Bits
Rock 1616 Tungsten Carbide 1313 Fixed Cutter Drill Bits Rock 1616 Tungsten Carbide 1313 Fixed Cutter Drill Bits

Large Image :  Rock 1616 Tungsten Carbide 1313 Fixed Cutter Drill Bits

Product Details:
Place of Origin: China
Brand Name: Hainaisen
Certification: ISO9001
Model Number: S2208
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: To be negotiable
Packaging Details: customized
Delivery Time: 5-7 work days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs per day

Rock 1616 Tungsten Carbide 1313 Fixed Cutter Drill Bits

Description
Application: Coal Mining,cutting,rock Drilling Size: 0804/0808/1308/1313/1608/1613/1616/1913
Usage: Oil Well,Rock Drilling Advantage: High Wear Resistant,Most Favorable Prices,Hight Effiency
Material: Tungsten Total Height: 8.0±0.1
High Light:

rock tungsten carbide

,

1616 tungsten carbide

,

1313 fixed cutter drill bits

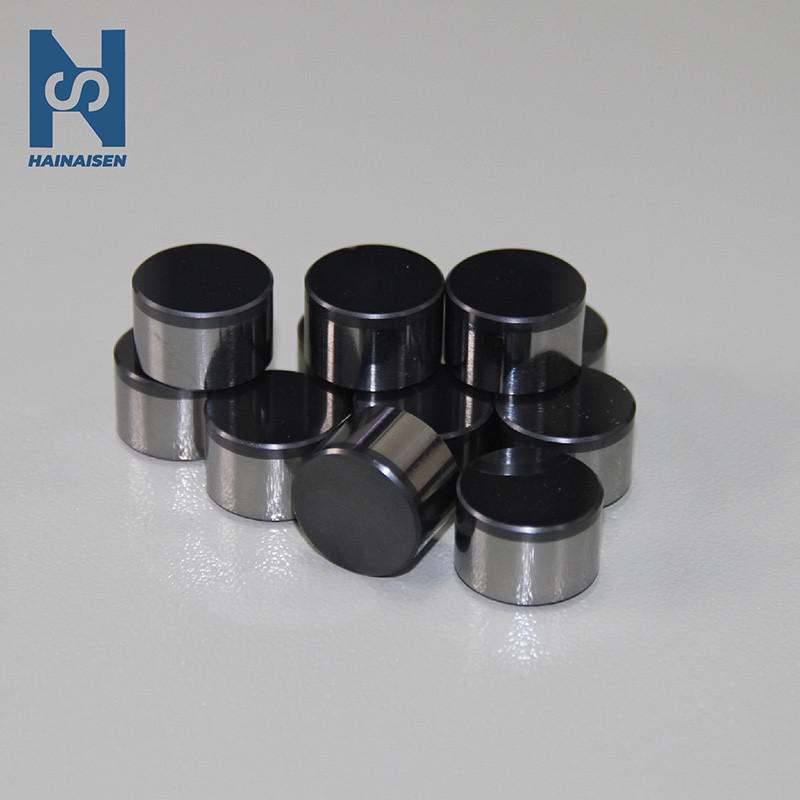

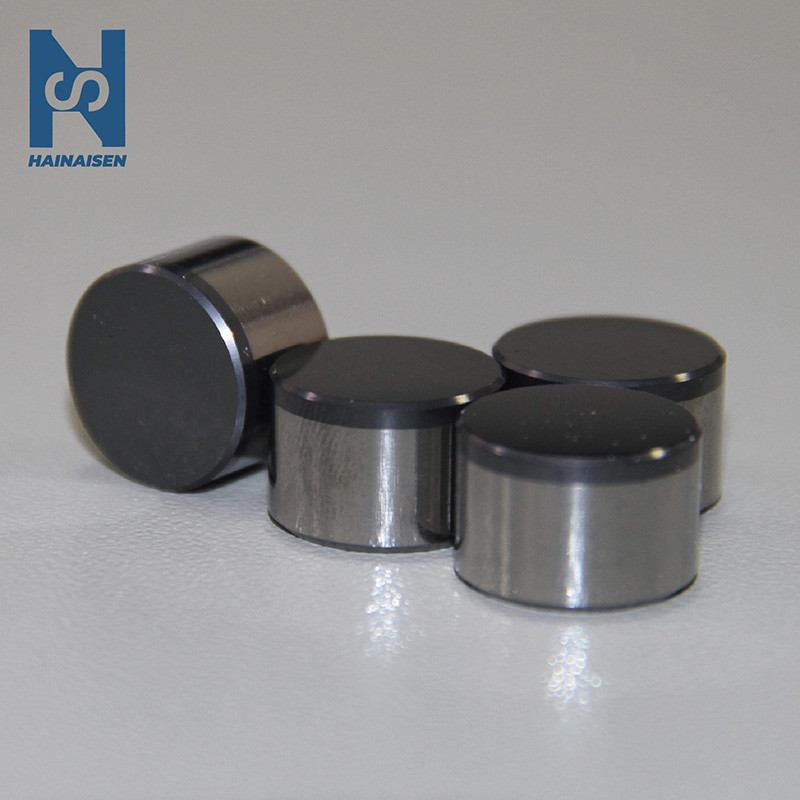

PDC Cutter Tungsten Carbide Cutters For Drilling Tools Pdc Diamond



PDC tools are mainly used for oil drilling equipment and wearing parts of oil drill bits, coal drill bits and machining tools. They are made from high-quality synthetic diamond powder and tungsten carbide powder. PDC tools combine the high hardness and wear resistance of diamond and tungsten carbide for a wide variety of drilling tools.



Cutter Model Diameter(mm) Total Height(mm) Height of Diamond Layer Chamfer of Diamond Layer
0808 8.0±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1008 10.0±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1308 13.44±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1313 13.44±0.05 13.00±0.1 2.0±0.1 0.41±0.05
1608 16.0±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1613 16.0±0.05 13.00±0.1 2.0±0.1 0.41±0.05
1616 16.0±0.05 16.0±0.1 2.0±0.1 0.41±0.05
1908 19.0±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1913 19.0±0.05 13.00±0.1 2.0±0.1 0.41±0.05
1916 19.0±0.05 16.0±0.1 2.0±0.1 0.41±0.05
2216 22.22±0.05 16.0±0.1 2.0±0.1 0.41±0.05
2219 22.22±0.05 19.0±0.1 2.0±0.1

0.41±0.05



Rock 1616 Tungsten Carbide 1313 Fixed Cutter Drill Bits 0



Our Principle

We adhere to the principles of high quality, excellent service and innovation. We also adhere to provide efficient products and quality services. If you are interested in our drills, please feel free to contact us. We look forward to working with you!



FAQ

1. Are you a trading company or manufacturer?

We have been a professional manufacturer of PDC bits since 2013.



2. Whether accept customized according to clients' requirements?

Yes, We accept customized products, no matter what size and what type. Please feel free to contact us.



3. About lead time and shipping time?

The lead time depends on the quantity of the order. Usually, it will take 3-5 days to ship to Tianjin Port or XI'AN Airport, China. For the small order or urgent order, we can send you by air once the order is confirmed.



4. Is it produced according to the standard? And can I expect a quality product?

Yes, all our activities are accredited to ISO9001: 2015, both in products and services. At the same time, mature production technology will ensure the quality to satisfy the international request. We have strictly inspection in the production. Our bits are exported to the Middle East, Europe, North America, South America, Australia, and other countries and regions.



5. How do you guarantee your quality?

We select the advanced production technology and equipment, strictly control the whole production process, and inspect the finished drill bits. We can also make several design changes according to the customer's feedback, and finally ensure the customer's excellent drilling effect.



6. What is your payment terms?
Our payment terms: T/T (normally 30% deposit ,balance 70% before shippment )
or LC at sight.
