Product Details:
|
| Application: | Cutting,rock Drilling | Size: | Required |
|---|---|---|---|
| Diameter: | Require | Advantage: | Most Favorable Prices,Hight Effiency,High Strength |
| Cutter Model: | 1908 | Material: | Tungsten |
| High Light: | rock drilling PDC Cutter,16mm PDC Cutter,1908 PDC hole cutter |
||

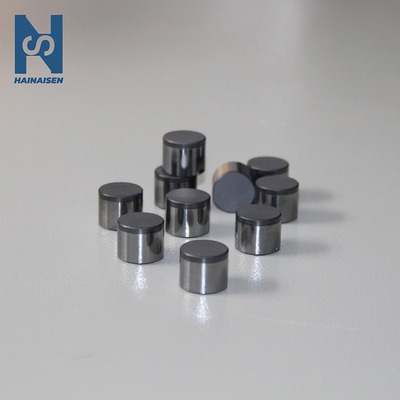

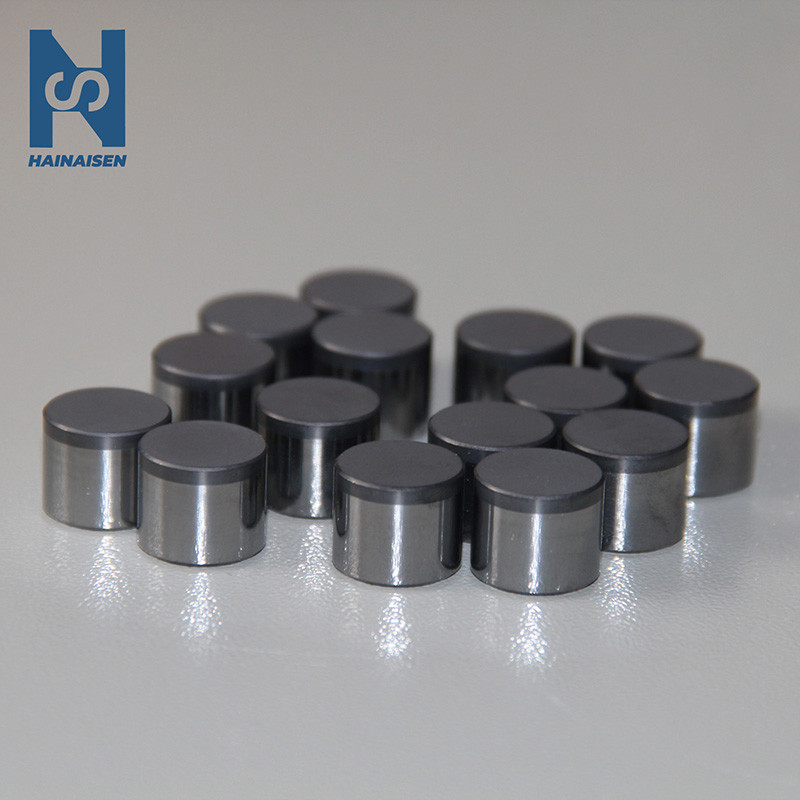

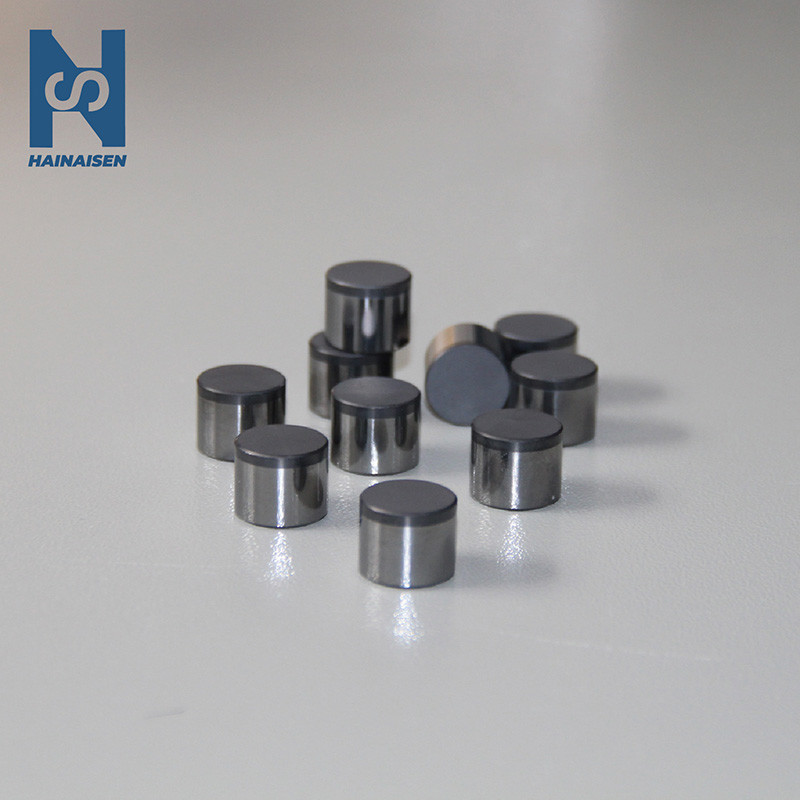

PDC Cutter Tungsten Carbide Cutters For Drilling Tools Pdc Diamond
PDC cutting tools are mainly used in oil drilling equipment and wearing parts of oil drill bits, coal drill bits and machining tools. They are made of high quality synthetic diamond powder and tungsten carbide powder. PDC tools combine the high hardness and wear resistance of diamond and tungsten carbide and can be used in a wide variety of drill tools.
| Cutter Model | Diameter(mm) | Total Height(mm) | Height of Diamond Layer | Chamfer of Diamond Layer |
| 0808 | 8.0±0.05 | 8.0±0.1 | 2.0±0.1 | 0.41±0.05 |
| 1008 | 10.0±0.05 | 8.0±0.1 | 2.0±0.1 | 0.41±0.05 |
| 1308 | 13.44±0.05 | 8.0±0.1 | 2.0±0.1 | 0.41±0.05 |
| 1313 | 13.44±0.05 | 13.00±0.1 | 2.0±0.1 | 0.41±0.05 |
| 1608 | 16.0±0.05 | 8.0±0.1 | 2.0±0.1 | 0.41±0.05 |
| 1613 | 16.0±0.05 | 13.00±0.1 | 2.0±0.1 | 0.41±0.05 |
| 1616 | 16.0±0.05 | 16.0±0.1 | 2.0±0.1 | 0.41±0.05 |
| 1908 | 19.0±0.05 | 8.0±0.1 | 2.0±0.1 | 0.41±0.05 |
| 1913 | 19.0±0.05 | 13.00±0.1 | 2.0±0.1 | 0.41±0.05 |
| 1916 | 19.0±0.05 | 16.0±0.1 | 2.0±0.1 | 0.41±0.05 |
| 2216 | 22.22±0.05 | 16.0±0.1 | 2.0±0.1 | 0.41±0.05 |
| 2219 | 22.22±0.05 | 19.0±0.1 | 2.0±0.1 | 0.41±0.05 |
Advantages of PDC inserts: 10 times longer service life than carbide!
1.high hardness, high wear resistance, high impact resistance.
2. The service life is 5-10 times longer than ordinary cemented carbide, which significantly reduces the frequency of replacing drill bits.
3. Effective and stable drilling speed, protect equipment and reduce drilling cost (30%-40% of total cost)
Our Principle
We adhere to the principles of high quality, excellent service and innovation. We also adhere to provide efficient products and quality services. If you are interested in our drills, please feel free to contact us. We look forward to working with you!
FAQ
Q1. Who are we?
We are a drill bit manufacturer started from 2013. Our main prodcuts are pdc drill bit for oil&gas, coal mining drill bit, core bit, pdc cutters and other types of pdc bits.
Q2. How can we guarantee the product quality?
We provide pre-production sample before mass production.
We provide final inspection before shipment.
Q3. Why you choose us?
We are factory of drill bits, so the price is affordable, and the quality can be controlled. Also, we can do customized products according to client's request.
Our promises: reasonable prices, short production period, and satisfactory after-sales services.
Q4. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW, Express Delivery;
Accepted Payment Type: T/T, L/C, PayPal, Western Union,Escrow;
Language Spoken: English, Chinese, Russian.
Q5. How to order the products?
Send the inquiry with detail item description or with Model number. If there is no packing demand we take it as sea-way packing. If possible please attach one reference picture to avoid any misunderstanding or any links from our website for us to get a better understanding.
