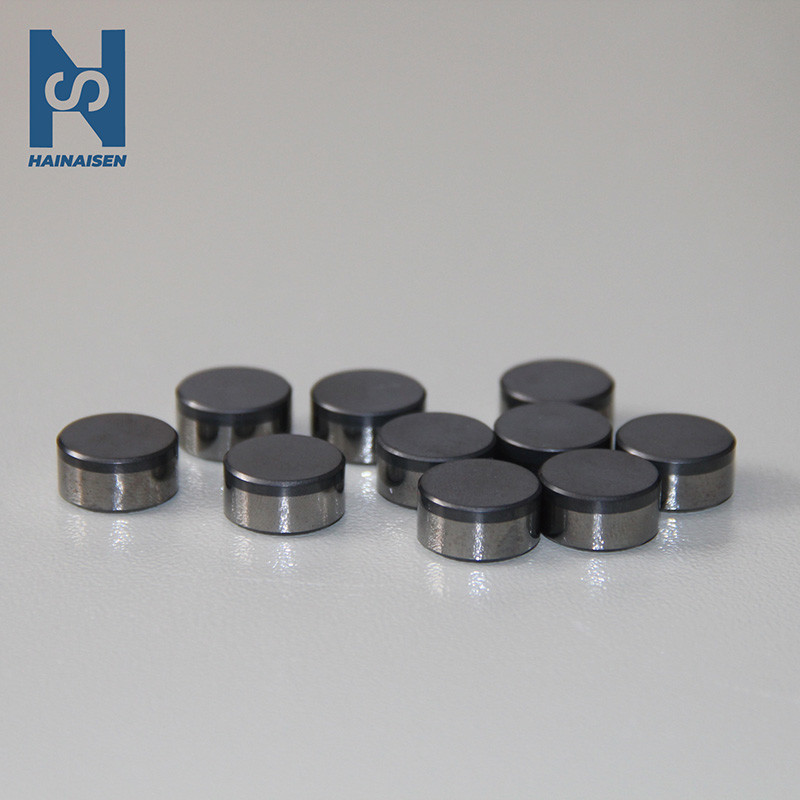

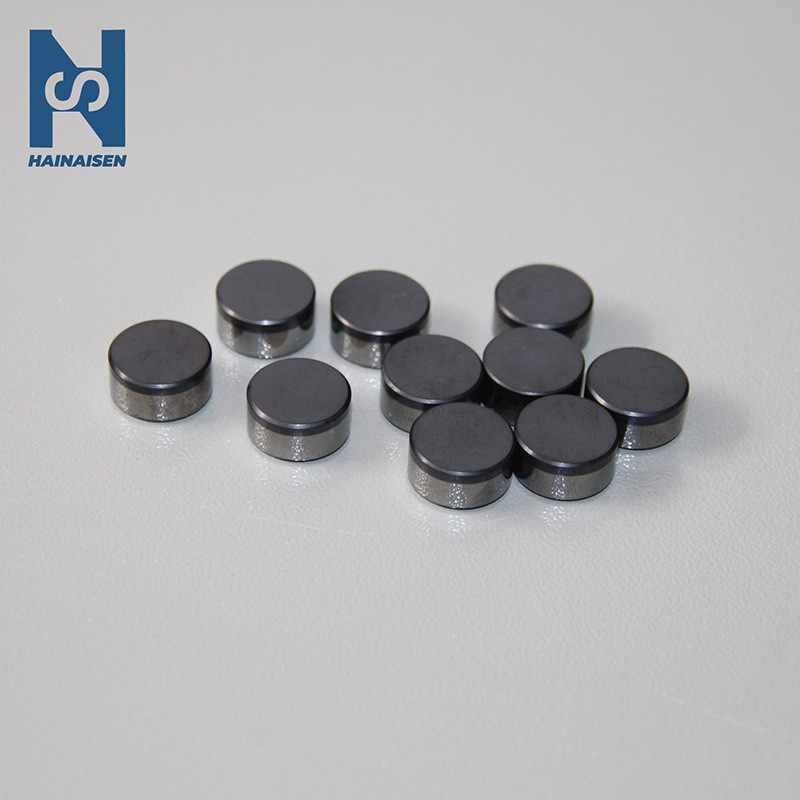

1-2.5mm Polycrystalline Diamond Cutter 19mm Cemented Carbide Buttons

1-2.5mm Polycrystalline Diamond Cutter 19mm Cemented Carbide Buttons
1-2.5mm Polycrystalline Diamond Cutter 19mm Cemented Carbide Buttons 1-2.5mm Polycrystalline Diamond Cutter 19mm Cemented Carbide Buttons

Large Image :  1-2.5mm Polycrystalline Diamond Cutter 19mm Cemented Carbide Buttons

Product Details:
Place of Origin: China
Brand Name: Hainaisen
Certification: ISO9001
Model Number: S1316
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: To be negotiable
Packaging Details: customized
Delivery Time: 5-7 work days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs per day

1-2.5mm Polycrystalline Diamond Cutter 19mm Cemented Carbide Buttons

Description
Sample: Available Feature: Top Impact-resistance,Hardness And High Heat Resistance Carbide
Packing: Plastic Box Diamond Thickness: 1-2.5mm
Material: Tungsten Layer: DIamond
High Light:

1mm polycrystalline diamond cutter

,

2.5mm polycrystalline diamond cutter

,

19mm cemented carbide buttons

PDC Cutter Tungsten Carbide Cutters For Drilling Tools Pdc Diamond



PDC cutting tools are mainly used in oil drilling equipment and wearing parts of oil drill bits, coal drill bits and machining tools. They are made of high quality synthetic diamond powder and tungsten carbide powder. PDC tools combine the high hardness and wear resistance of diamond and tungsten carbide and can be used in a wide variety of drill tools.



Cutter Model Diameter(mm) Total Height(mm) Height of Diamond Layer Chamfer of Diamond Layer
0808 8.0±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1008 10.0±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1308 13.44±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1313 13.44±0.05 13.00±0.1 2.0±0.1 0.41±0.05
1608 16.0±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1613 16.0±0.05 13.00±0.1 2.0±0.1 0.41±0.05
1616 16.0±0.05 16.0±0.1 2.0±0.1 0.41±0.05
1908 19.0±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1913 19.0±0.05 13.00±0.1 2.0±0.1 0.41±0.05
1916 19.0±0.05 16.0±0.1 2.0±0.1 0.41±0.05
2216 22.22±0.05 16.0±0.1 2.0±0.1 0.41±0.05
2219 22.22±0.05 19.0±0.1 2.0±0.1 0.41±0.05



Advantages of PDC inserts: 10 times longer service life than carbide!

1.High hardness, high wear resistance, high impact resistance.
2. The service life is 5-10 times longer than ordinary cemented carbide, which significantly reduces the frequency of replacing drill bits.
3. Effective and stable drilling speed, protect equipment and reduce drilling cost (30%-40% of total cost)



1-2.5mm Polycrystalline Diamond Cutter 19mm Cemented Carbide Buttons 0



Our Principle

We adhere to the principles of high quality, excellent service and innovation. We also adhere to provide efficient products and quality services. If you are interested in our drills, please feel free to contact us. We look forward to working with you!



FAQ

Q1: Can I expect a good-quality product?
A: Of course, all our activities in products and services are ISO9001 certified. At the same time, mature production technology ensures the quality meets international requirements.



Q2: Whether accpect customized products according to client's requirement?
A: Yes, we accept customization, no matter how much the purchase quantity is.



Q3: Are you a manufacturer or trading company?
A: We have manufactured pdc drill bits since 2013, so we have price advantages.



Q4: What is your trade terms?
A: We offer EXW, FOB, CIF.



Q5: What is your payment terms?
A: Payment terms: normally 30% deposit, balance 70% before shipment.
Payment methods: T/T, L/C.
