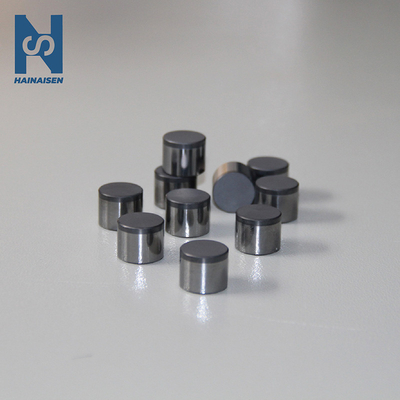

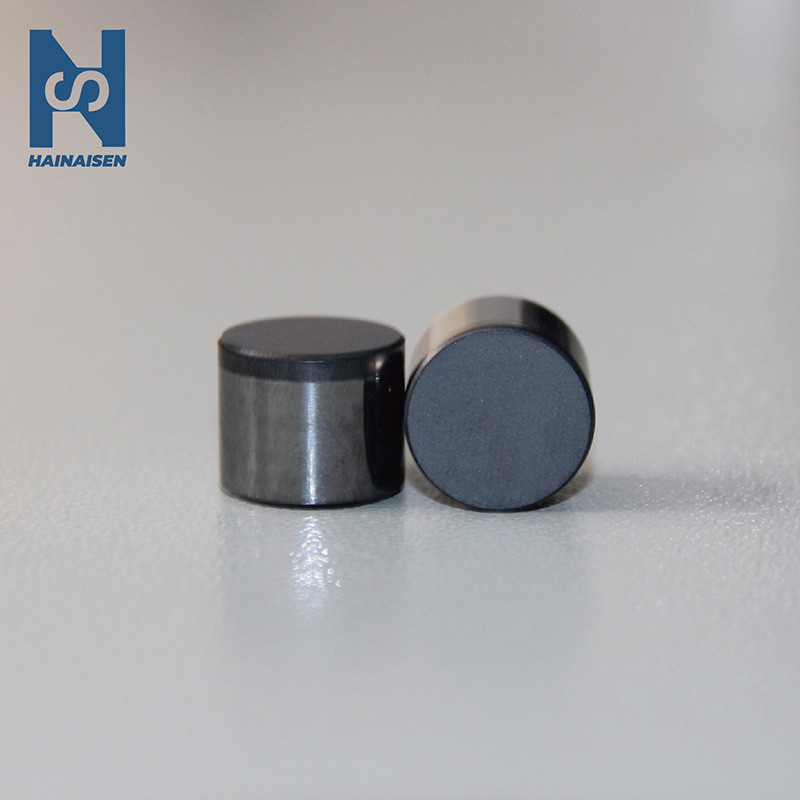

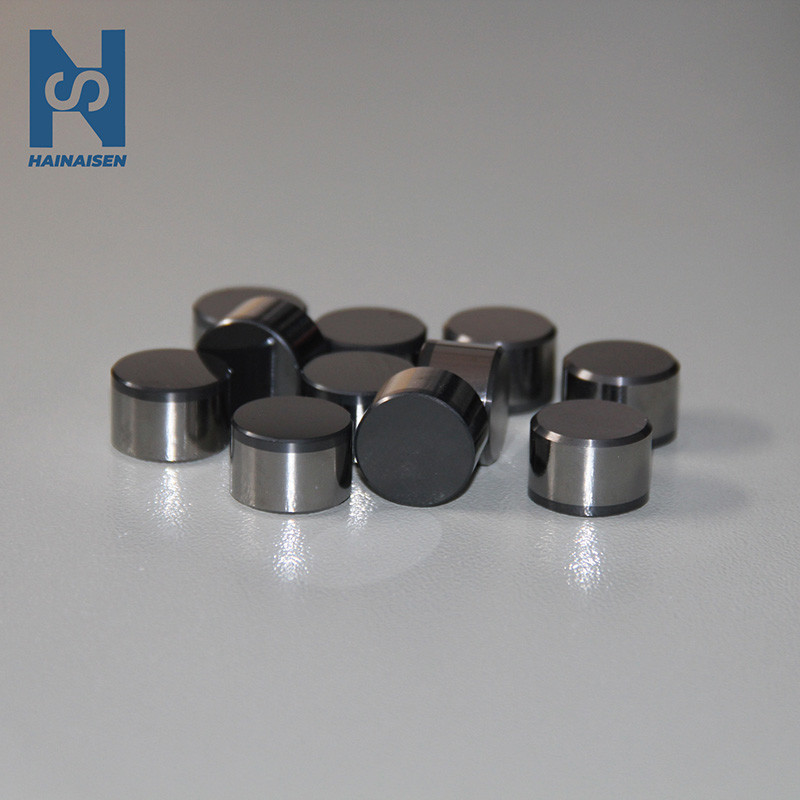

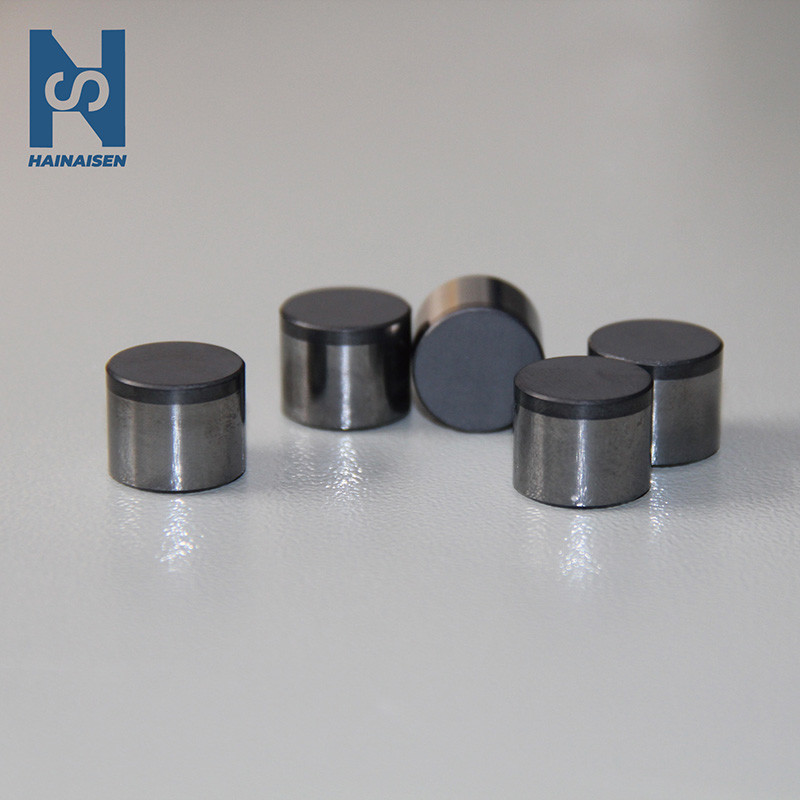

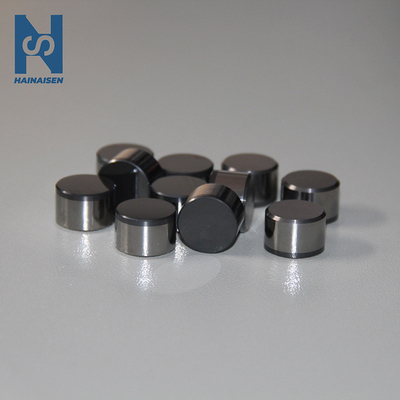

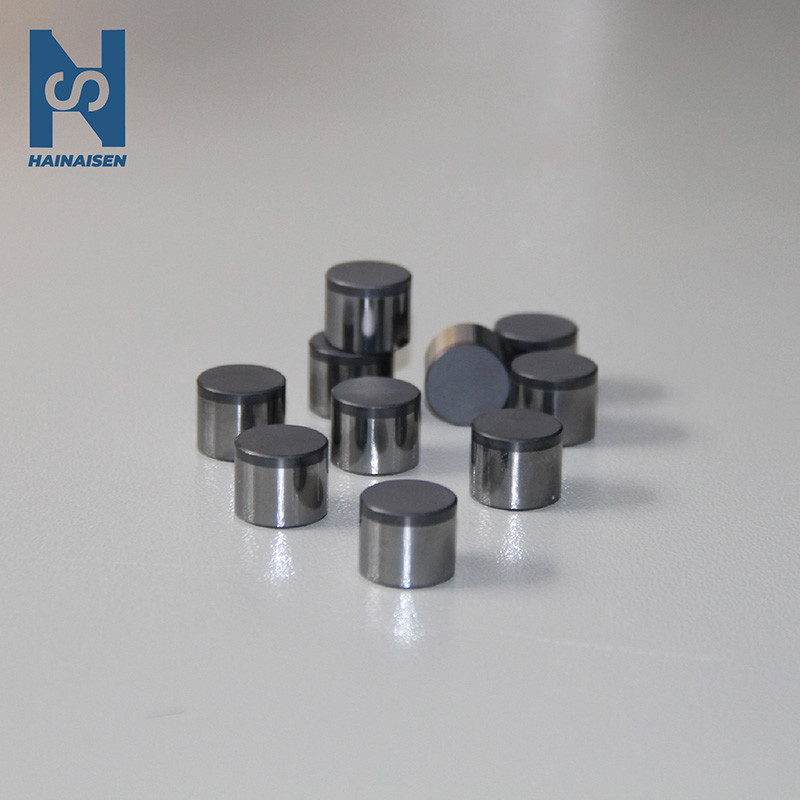

Wear Resistance 1613 Polycrystalline Diamond Inserts 1308 Fixed Cutter Bits

Wear Resistance 1613 Polycrystalline Diamond Inserts 1308 Fixed Cutter Bits
Wear Resistance 1613 Polycrystalline Diamond Inserts 1308 Fixed Cutter Bits Wear Resistance 1613 Polycrystalline Diamond Inserts 1308 Fixed Cutter Bits Wear Resistance 1613 Polycrystalline Diamond Inserts 1308 Fixed Cutter Bits Wear Resistance 1613 Polycrystalline Diamond Inserts 1308 Fixed Cutter Bits

Large Image :  Wear Resistance 1613 Polycrystalline Diamond Inserts 1308 Fixed Cutter Bits

Product Details:
Place of Origin: China
Brand Name: Hainaisen
Certification: ISO9001
Model Number: 1613
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: To be negotiable
Packaging Details: customized
Delivery Time: 5-7 work days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs per day

Wear Resistance 1613 Polycrystalline Diamond Inserts 1308 Fixed Cutter Bits

Description
Product Name: Polycrystalline Diamond Inserts Size: 1308/1313/1608/1613/1616/1913
Packing: Plastic Box,wooden Box Feature: Hardness And High Heat Resistance Carbide
Sample: Available Advantage: Wear Resistance
High Light:

wear resistance polycrystalline diamond inserts

,

1613 polycrystalline diamond inserts

,

1308 fixed cutter bits

PDC Cutter Tungsten Carbide Cutters For Drilling Tools Pdc Diamond



PDC cutters are mainly used for oil drilling equipment and wear parts of oil drill bits, coal drill bits and machining tools. They are made of high quality synthetic diamond powder and tungsten carbide powder.

Combining the high hardness and wear resistance of diamond and tungsten carbide, PDC tools are used in a wide range of different drilling tools.



Cutter Model Diameter(mm) Total Height(mm) Height of Diamond Layer Chamfer of Diamond Layer
0808 8.0±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1008 10.0±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1308 13.44±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1313 13.44±0.05 13.00±0.1 2.0±0.1 0.41±0.05
1608 16.0±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1613 16.0±0.05 13.00±0.1 2.0±0.1 0.41±0.05
1616 16.0±0.05 16.0±0.1 2.0±0.1 0.41±0.05
1908 19.0±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1913 19.0±0.05 13.00±0.1 2.0±0.1 0.41±0.05
1916 19.0±0.05 16.0±0.1 2.0±0.1 0.41±0.05
2216 22.22±0.05 16.0±0.1 2.0±0.1 0.41±0.05
2219 22.22±0.05 19.0±0.1 2.0±0.1 0.41±0.05



Advantages of PDC inserts: 10 times longer service life than cemented carbide!

1. High hardness, high wear resistance and high impact resistance.
2. The service life is 5-10 times longer than ordinary cemented carbide, which significantly reduces the frequency of replacing drill bits.
3. Effective and stable drilling speed, protecting equipment and reducing drilling cost (30%-40% of total cost)



Wear Resistance 1613 Polycrystalline Diamond Inserts 1308 Fixed Cutter Bits 0



Our Principle

We adhere to the principles of high quality, excellent service, and the courage to innovate. We also adhere to provide efficient products and quality services. Please feel free to contact us if you are interested in our drills. We are looking forward to cooperating with you!



FAQ

1. Are you manufacture?
A: Yes, we are pdc bit manufacturer since 2013.



2. Where are you located in?
A: We are located in Xi'an City Shaanxi China.



3. What are your main products?
A: Our mainly products are PDC drill bit, core drill bit, coal mining bits, pdc cutters and other drilling bits.



4. How many days with your delivery?
A: We can delivery goods with 7 days if we have goods in stock, if need produce with your demand we will negotiation with you.
