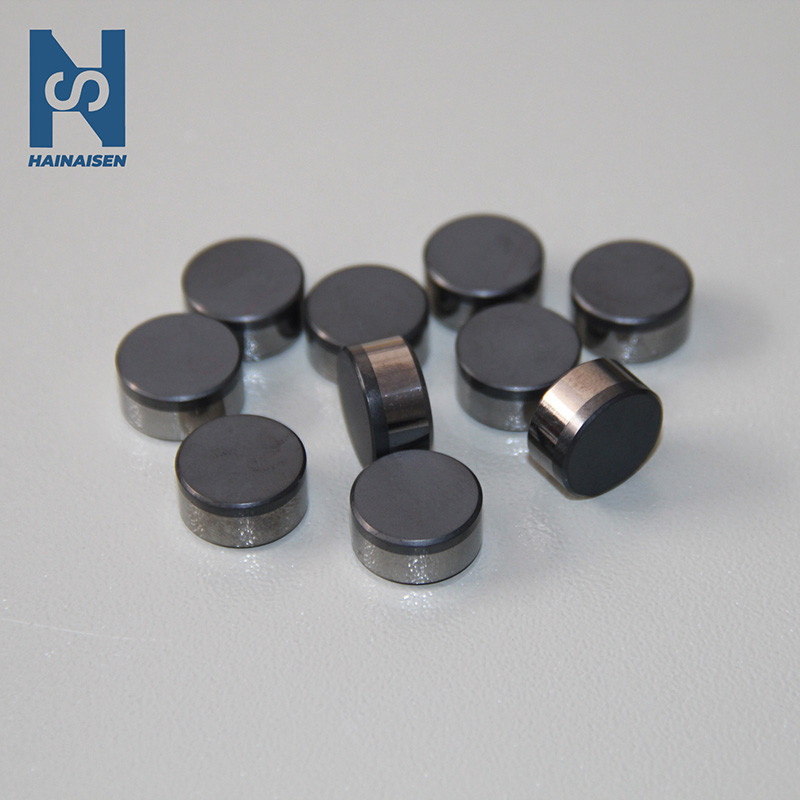

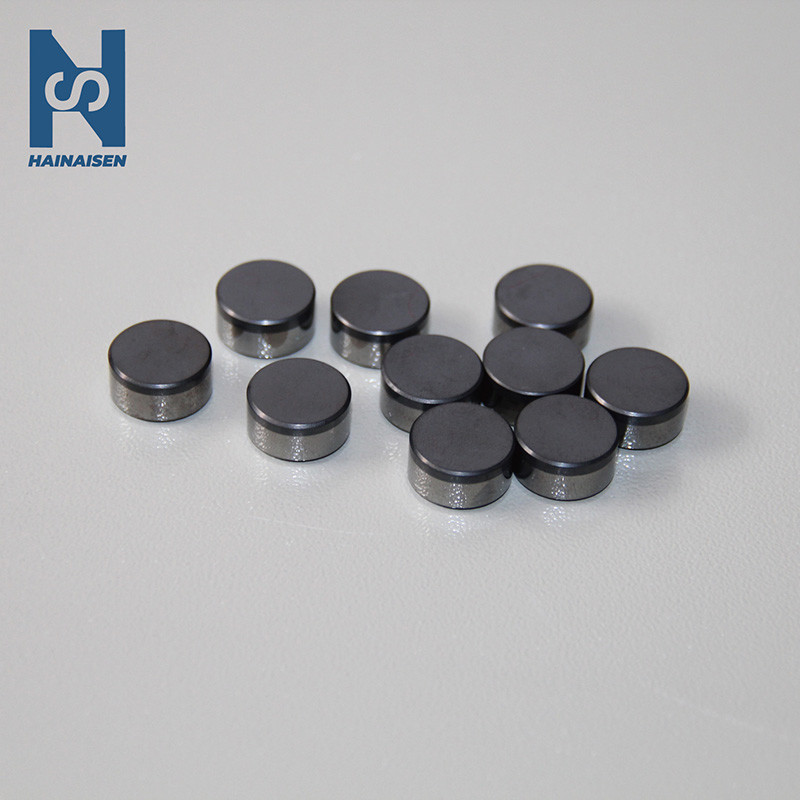

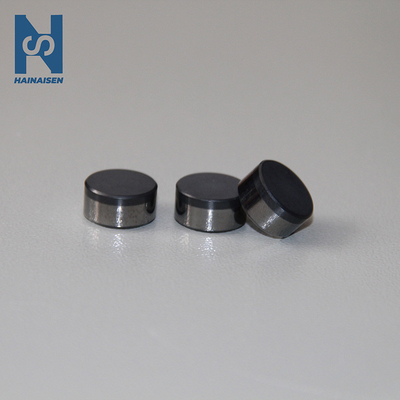

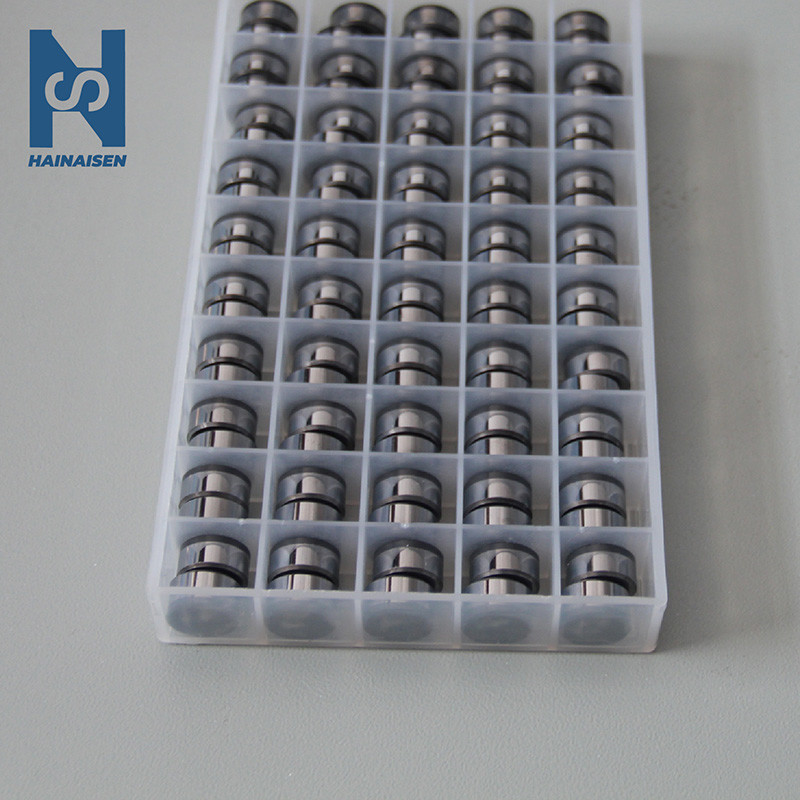

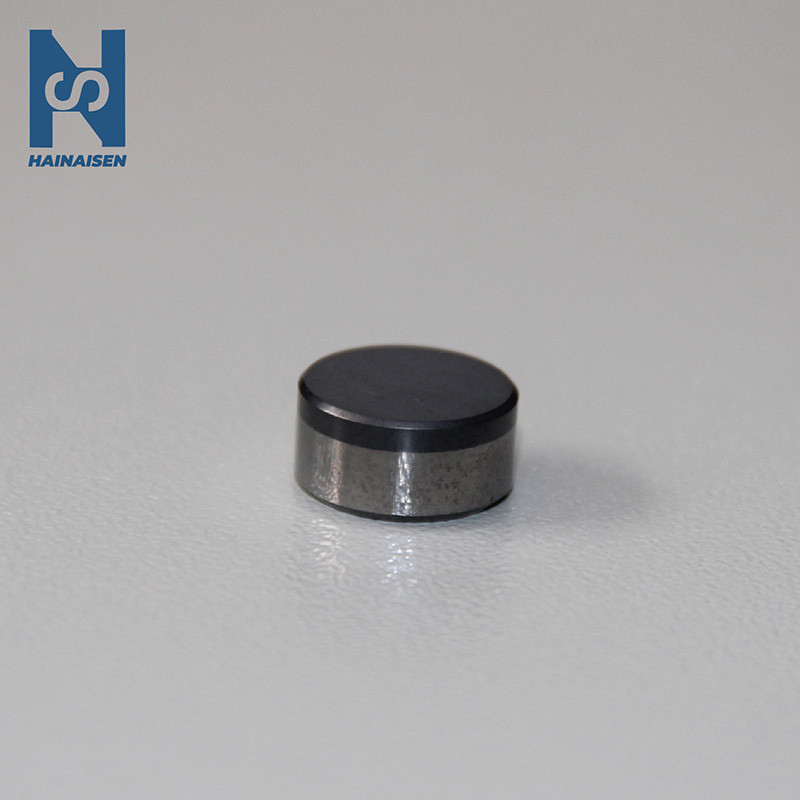

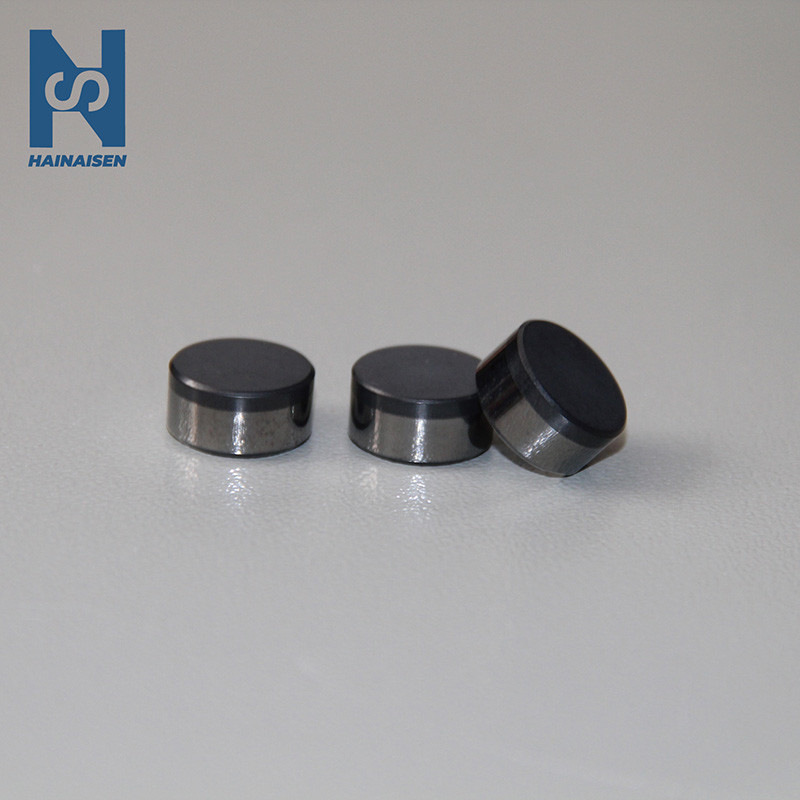

Black 0808 PDC Cutter 1908 Carbide Mining Button Drilling Tools

Black 0808 PDC Cutter 1908 Carbide Mining Button Drilling Tools
Black 0808 PDC Cutter 1908 Carbide Mining Button Drilling Tools Black 0808 PDC Cutter 1908 Carbide Mining Button Drilling Tools Black 0808 PDC Cutter 1908 Carbide Mining Button Drilling Tools Black 0808 PDC Cutter 1908 Carbide Mining Button Drilling Tools Black 0808 PDC Cutter 1908 Carbide Mining Button Drilling Tools

Large Image :  Black 0808 PDC Cutter 1908 Carbide Mining Button Drilling Tools

Product Details:
Place of Origin: China
Brand Name: Hainaisen
Certification: ISO9001
Model Number: 1608
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: To be negotiable
Packaging Details: customized
Delivery Time: 5-7 work days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs per day

Black 0808 PDC Cutter 1908 Carbide Mining Button Drilling Tools

Description
Product Name: PDC Cutter Size: 0804/0808/1308/1313/1608/1613/1616/1913
Color: Black Type: Cutting Tools
Material: Tungsten Carbide Cutter Model: 0808
High Light:

Hainaisen 1908 carbide mining button

,

Hainaisen 1908 carbide mining buttons

,

1908 carbide mining buttons

PDC Cutter Tungsten Carbide Cutters For Drilling Tools Pdc Diamond



PDC cutters are mainly used for oil drilling equipment and wear parts of oil drill bits, coal drill bits and machining tools. They are made of high quality synthetic diamond powder and tungsten carbide powder. Combining the high hardness and wear resistance of diamond and tungsten carbide, PDC tools are used in a wide range of different drilling tools.



Cutter Model Diameter(mm) Total Height(mm) Height of Diamond Layer Chamfer of Diamond Layer
0808 8.0±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1008 10.0±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1308 13.44±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1313 13.44±0.05 13.00±0.1 2.0±0.1 0.41±0.05
1608 16.0±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1613 16.0±0.05 13.00±0.1 2.0±0.1 0.41±0.05
1616 16.0±0.05 16.0±0.1 2.0±0.1 0.41±0.05
1908 19.0±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1913 19.0±0.05 13.00±0.1 2.0±0.1 0.41±0.05
1916 19.0±0.05 16.0±0.1 2.0±0.1 0.41±0.05
2216 22.22±0.05 16.0±0.1 2.0±0.1 0.41±0.05
2219 22.22±0.05 19.0±0.1 2.0±0.1 0.41±0.05



Advantages of PDC inserts: 10 times longer service life than cemented carbide!

1. High hardness, high wear resistance and high impact resistance.
2. The service life is 5-10 times longer than ordinary cemented carbide, which significantly reduces the frequency of replacing drill bits.
3. Effective and stable drilling speed, protecting equipment and reducing drilling cost (30%-40% of total cost)



Black 0808 PDC Cutter 1908 Carbide Mining Button Drilling Tools 0



Our Principle

We adhere to the principles of high quality, excellent service and innovation. We also adhere to provide efficient products and quality services. If you are interested in our drills, please feel free to contact us. We look forward to working with you!



FAQ

1. Accepted Payment Terms:
T/T, L/C, D/P, Paypal, Western Union, etc.


2. Guarantee and Warranty of Quality:
We are API&ISO certified factory, we have one integral set of system to control quality in production and make after-sale service.


3. Referenced Letters:
We have many Referenced Letter issued by our customers from many countries for checking our quality and service.


4. Can I visit your factory online?
Yes, we can show our workshop, warehouse, offices online by WeChat, Whatsapp or Skype.



If you have any questions, please feel free to contact us. No matter how far away we are, communication is no boundaries.
