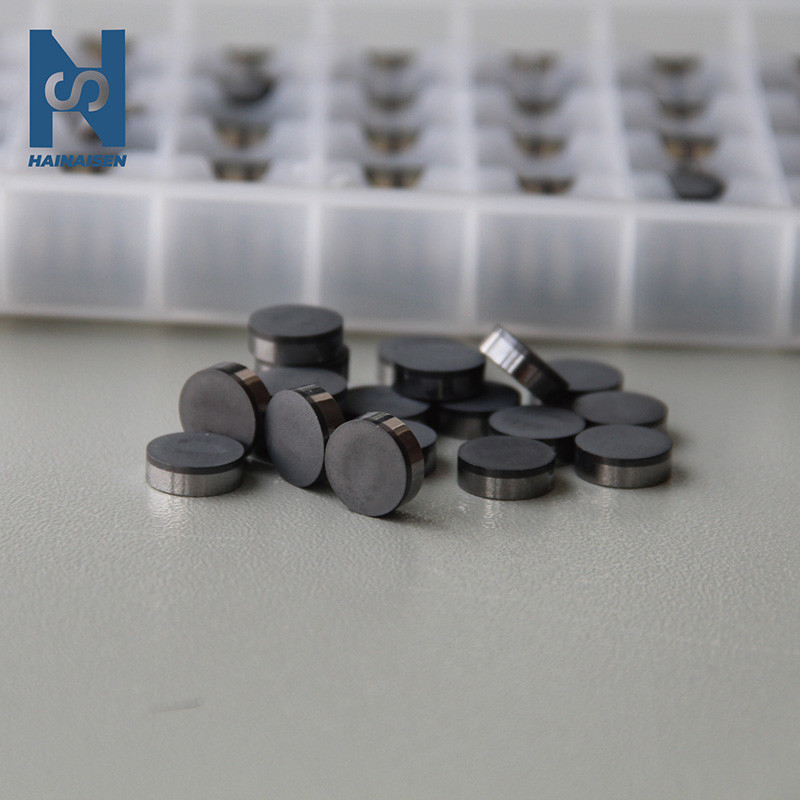

Anti Abrasion PDC Cutter Synthetic Tungsten PDC Insert

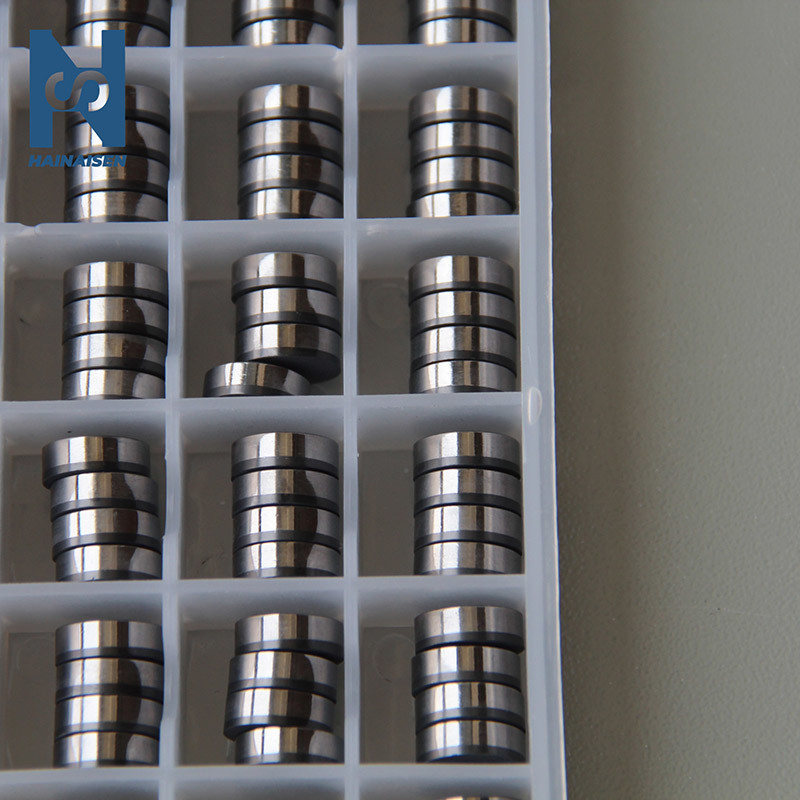

Anti Abrasion PDC Cutter Synthetic Tungsten PDC Insert

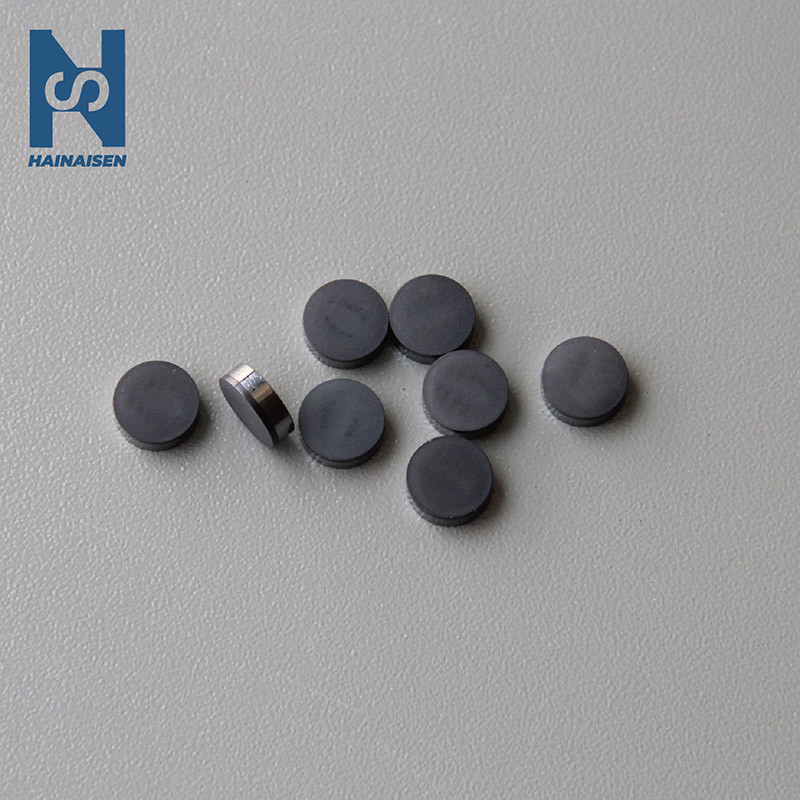

Anti Abrasion PDC Cutter Synthetic Tungsten PDC Insert Anti Abrasion PDC Cutter Synthetic Tungsten PDC Insert Anti Abrasion PDC Cutter Synthetic Tungsten PDC Insert Anti Abrasion PDC Cutter Synthetic Tungsten PDC Insert

Large Image :  Anti Abrasion PDC Cutter Synthetic Tungsten PDC Insert

Product Details:
Place of Origin: China
Brand Name: Hainaisen
Certification: ISO9001
Model Number: 1305
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: To be negotiable
Packaging Details: customized
Delivery Time: 5-7 work days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs per day

Anti Abrasion PDC Cutter Synthetic Tungsten PDC Insert

Description
Material: Steel, Tungsten Carbide Condition: New
Application: Drill Bits Shipment: By Sea, By Air
Advantage: High Hardness
High Light:

Anti Abrasion PDC Cutter

,

synthetic PDC Cutter

,

tungsten PDC insert

PDC Cutter Tungsten Carbide Cutters For Drilling Tools Pdc Inserts



PDC cutting tools are mainly used for oil drilling equipment and wear parts of oil drill bits, coal drill bits and machining tools. They are made of high quality synthetic diamond powder and tungsten carbide powder. Combining the high hardness and wear resistance of diamond and tungsten carbide, PDC tools are used in a wide range of different drilling tools.



Cutter Model Diameter(mm) Total Height(mm) Height of Diamond Layer Chamfer of Diamond Layer
0808 8.0±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1008 10.0±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1308 13.44±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1313 13.44±0.05 13.00±0.1 2.0±0.1 0.41±0.05
1608 16.0±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1613 16.0±0.05 13.00±0.1 2.0±0.1 0.41±0.05
1616 16.0±0.05 16.0±0.1 2.0±0.1 0.41±0.05
1908 19.0±0.05 8.0±0.1 2.0±0.1 0.41±0.05
1913 19.0±0.05 13.00±0.1 2.0±0.1 0.41±0.05
1916 19.0±0.05 16.0±0.1 2.0±0.1 0.41±0.05
2216 22.22±0.05 16.0±0.1 2.0±0.1 0.41±0.05
2219 22.22±0.05 19.0±0.1 2.0±0.1 0.41±0.05



PDC cutting insert's advantage: 10 times longer use life than tungsten carbide!

1. High hardness, high abrasion resistance and high impact resistance.
2. 5-10 times longer useful life compared with normal tungsten carbide, obviously reduce the frequency of replace the drill bit.
3. Effective and stable drilling speed to protect the equipment and reduce the drilling cost(30%-40% overall cost)

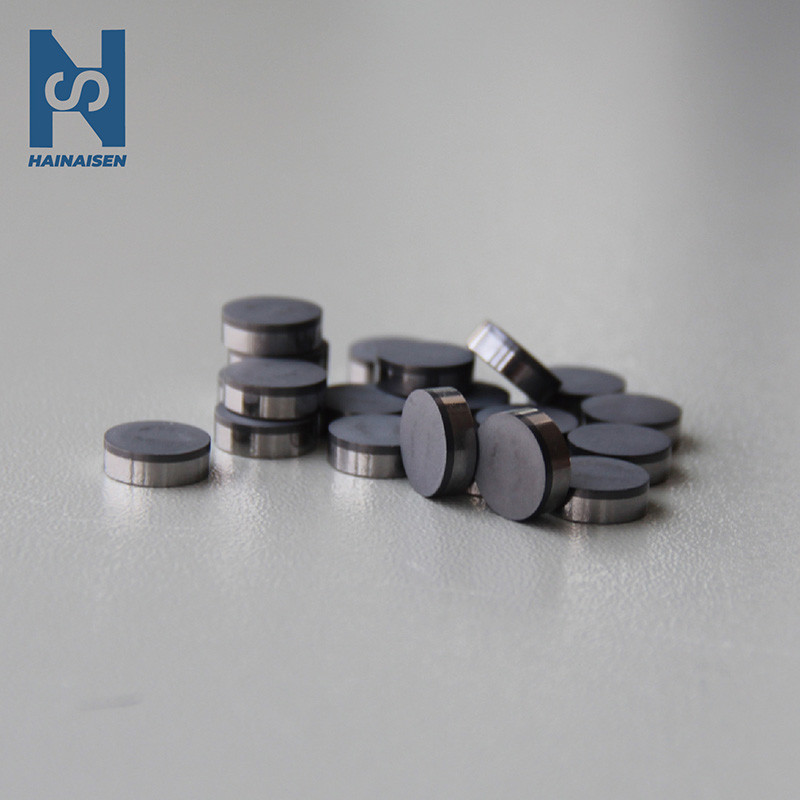

Anti Abrasion PDC Cutter Synthetic Tungsten PDC Insert 0



Our Principle

We are insisting in the principle of high quality, superior service and the courage to innovate. We are also adhering to providing the efficient products and excellent services. If you are interested in our drill bits, please feel free to contact us. We are looking forward to cooperating with you!



FAQ

1. Are you a trading company or manufacturer?

We have been a professional manufacturer of PDC cutters since 2013.



2. About lead time and shipping time?

The lead time depends on the quantity of the order. Usually, it will take 3-5 days to ship to Tianjin Port or XI'AN Airport, China. For the small order or urgent order, we can send you by air once the order is confirmed.



3. Is it produced according to the standard? And can I expect a quality product?

Yes, all our activities are accredited to ISO9001: 2015, both in products and services. At the same time, mature production technology will ensure the quality to satisfy the international request. We have strictly inspection in the production. Our bits are exported to the Middle East, Europe, North America, South America, Australia, and other countries and regions.



4. Why you choose us?
We are factory of drill bits, so the price is affordable, and the quality can be controlled. Also, we can do customized products according to client's request.
Our promises: reasonable prices, short production period, and satisfactory after-sales services.



If you have any questions, please feel free to contact us. No matter how far away we are, communication is no boundaries.
