6 Blade PDC Tricone Drill Bit 9 Nozzle PDC Reamer

Place of Origin China
Brand Name Hainaisen
Certification ISO9001
Model Number 12-1/4 HS6633TB
Minimum Order Quantity 1 piece
Price To be negotiable
Packaging Details iron case
Delivery Time 5-7 business days
Payment Terms T/T, L/C
Supply Ability 20pcs per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size 12.25", 311.15mm Make-Up Torque 33.03~43.3(9.56) KN·m(Mpa)
Application Oil & Nature Gas API Connection 6-5/8 REG
Angle 18-25° Number Of Nozzle 9
High Light

6 Blade Tricone Drill Bit

,

9 Nozzle Tricone Drill Bit

,

China 9 nozzle PDC reamer

Leave a Message
Product Description

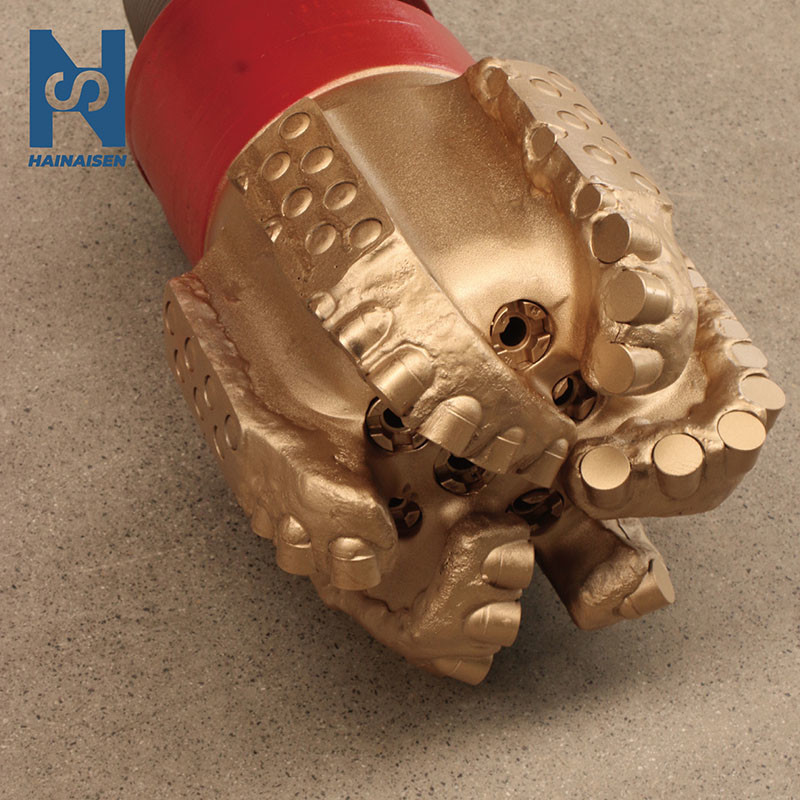

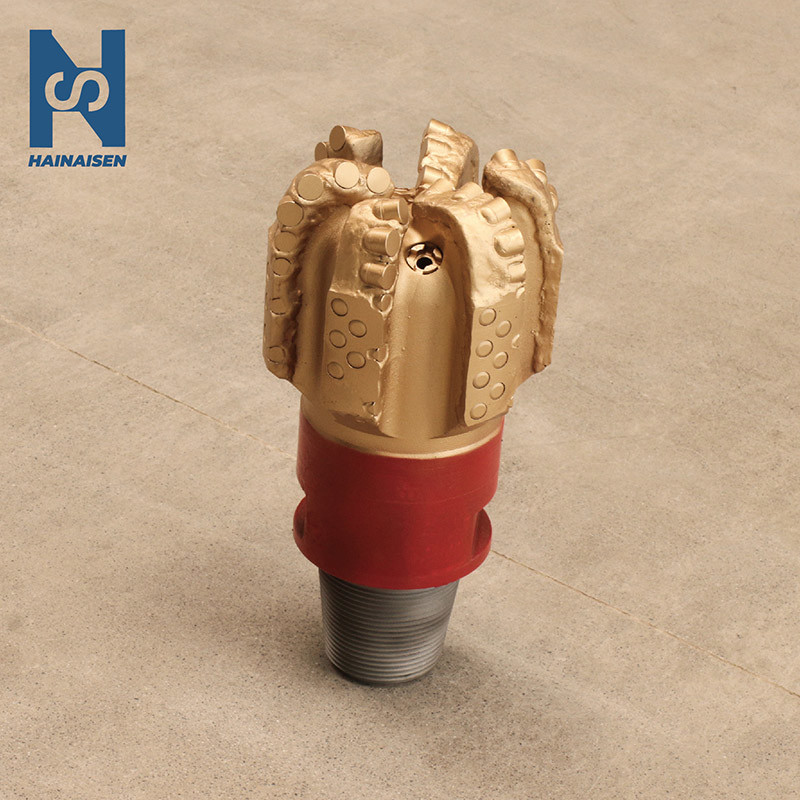

12 1/4 Inch 6 Blades High Quality Drill Bits Tricone Drill Bit



1. The crown face of the drill bit is a short casting face, suitable for the formation of hard and neutral abrasives.
2. The taper surface is shallow, so the drill has good orientation, strong cleaning power and strong aggressiveness.
3. The PDC tool angle is 18-25°, which enables the drill to have higher machinability.
4. There are double rows of PDC cutters embedded in the shoulder of the drill bit, which can be drilled and ground at the same time, which complement each other. They take on the cutting tasks separately so that the bit can drill holes at relatively high speeds.
5. The wider ranging surface is adopted to increase the stability of the drill bit for better well construction. The gauge surface is embedded/inlaid with double-row PDC cutter gauge teeth to enhance wear resistance.



PRODUCT SPECIFICATIONS
Size 12 1/4 inch (Φ311.15mm)
Model number 12-1/4 HS6633TB
Body type steel body
Number of blade 6
Primary PDC cutter size 1613
Number of nozzle 9
Gauge length 101.3mm
API connection 6-5/8 REG
Make-Up Torque(KN.m) 33.03~43.3(9.56) KN·m(Mpa)
Application Oil & Nature Gas
Quality High Level
Package Iron Case
MOQ 5 Pieces
Certificate ISO 9001
OEM Yes
Customized Size Yes



6 Blade PDC Tricone Drill Bit 9 Nozzle PDC Reamer 0

6 Blade PDC Tricone Drill Bit 9 Nozzle PDC Reamer 1

Package&Delivery

Our bits will be shipped within 5 business days after 50% of the full payment is received by sea or air as you require.

Please contact us freely if you have any other requests.


6 Blade PDC Tricone Drill Bit 9 Nozzle PDC Reamer 2
Our Principle

Our principle is to provide our customers with the highest quality tools, accessories, and services in the industry. Years of experience, well-trained professionals and a complete mechanical workshop support us. Reducing costs, speeding up drilling, and ensuring safety have always been our mission.
