|Size:||9 In, 228.6mm||Cutter Size:||13, 16, 19mm|
|Material:||High Manganese Steel,Carbon Steel,Polycrystalline Diamond Compact||Application:||Well Drilling,rock Drilling,Water/oil/mining,natural Gas|
|Number Of Nozzle:||6||Customized Size:||Yes|
9 Inch Diamond PDC Bit,
228.6mm Diamond PDC Bit,
9 Inch PDC Bit For Well Drilling

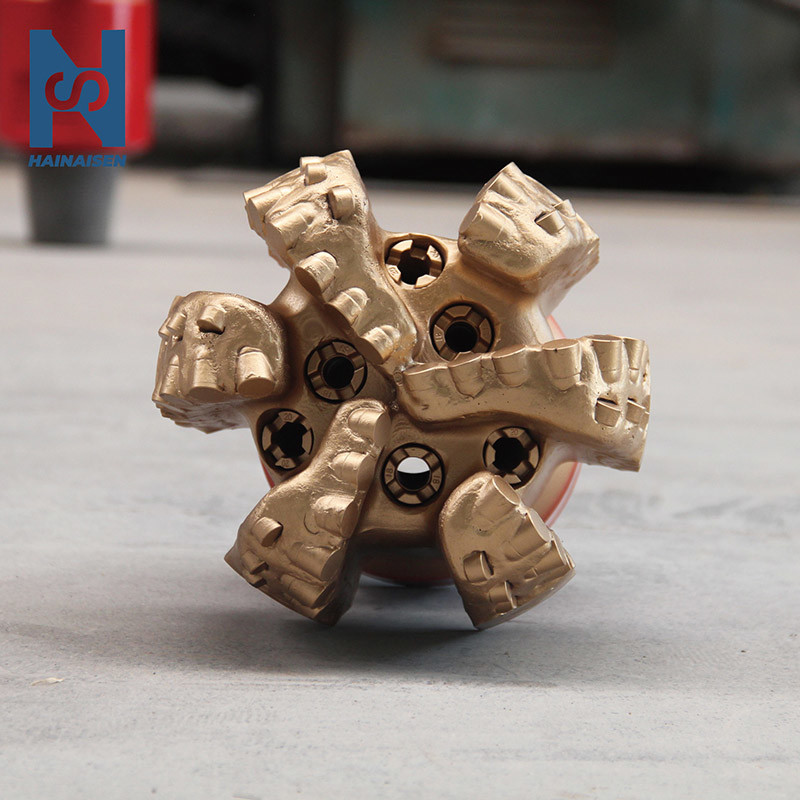

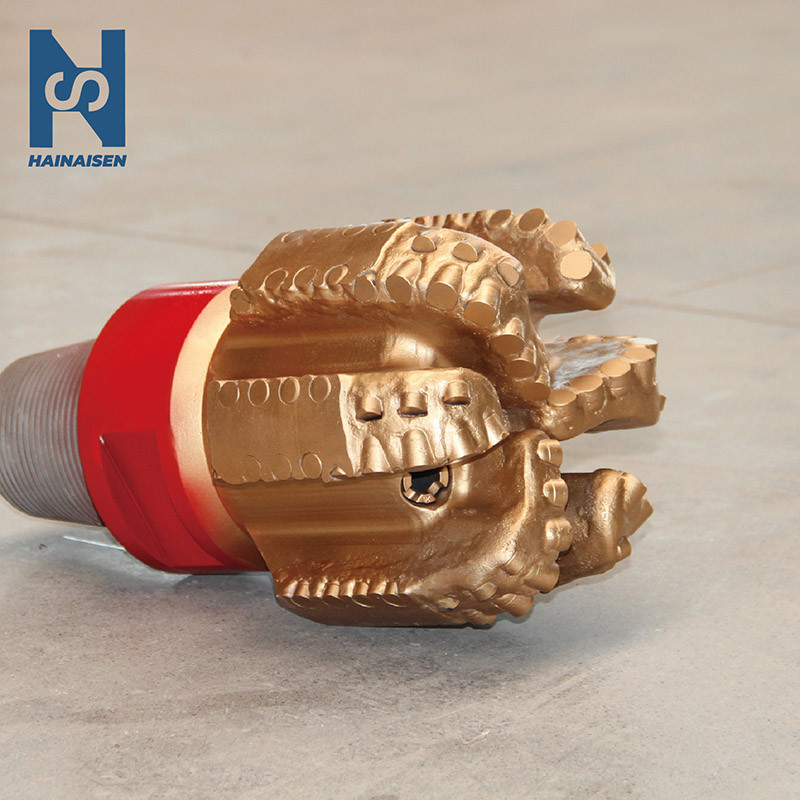

9 Inch 6 Blades PDC Core Bit Oil Drill Bit Mining Drill Bits
1. Cutting structure is force balanced and bit blade is asymmetrically designed so that the load on
bit is balanced that
resulting better stability of the bit.
2. Main cutter are high performance PDC cutters to insure service life of the bit while improving ROP.
3. Cutter exposure is optimized to insure the bit can achieve higher ROP is soft to medium formations.
4. Shock absorbers are designed to make the bit capable of drilling through formations with hard strigers.
5. Hydraulic system of the bit is optimized using dynamic flow pattern simulation technology to enhance
cleaning and cooling effects of the bit to effectively prevent bit from balling.
|Size||9 inch (Φ228.6mm)|
|Model number||9 HS66330C|
|Body type||steel body|
|Number of blade||6|
|Primary PDC cutter size||1613|
|Number of nozzle||6|
|API connection||6-5/8 REG|
|Make-Up Torque(KN.m)||33.03~43.3(9.56) KN·m(Mpa)|
|Application||Oil & Nature Gas|
Our bits will be shipped within 4 days after 50% full payment is received by sea or air as you require.
Please contact us freely if you have any other requests.
Our principle is to provide our customers with the highest quality tools, accessories, and services in the industry. Years of experience, well-trained professionals and a complete mechanical workshop support us. Reducing costs, speeding up drilling, and ensuring safety have always been our mission.
1. Why you choose us?
We are factory of drill bits, so the price is affordable, and the quality can be controlled. Also, we can do customized products according to client's request.
Our promises: reasonable prices, short production period, and satisfactory after-sales services.
2. What is the time about the delivery?
Ready to deliver within 1 week, if in stock.
Depends on order quantity, when out of stock, 7-30 business days.
3. How to order the products?
Send an inquiry with details of the item description or with Model number. If there is no packing demand we take it as sea-way packing. If possible, please attach one reference picture to avoid any misunderstanding or any links from our website so that we can get a better understanding.
4. Can I visit your factory online?
Yes, we can definitely show our workshop, warehouse, office online through WeChat, Whatsapp or Skype.
