8.5 Inch 9 Blade PDC Rock Bit Forging Well Drilling

Certification
China Shaanxi Hainaisen Petroleum Technology Co.,Ltd certification
China Shaanxi Hainaisen Petroleum Technology Co.,Ltd certification
I'm Online Chat Now

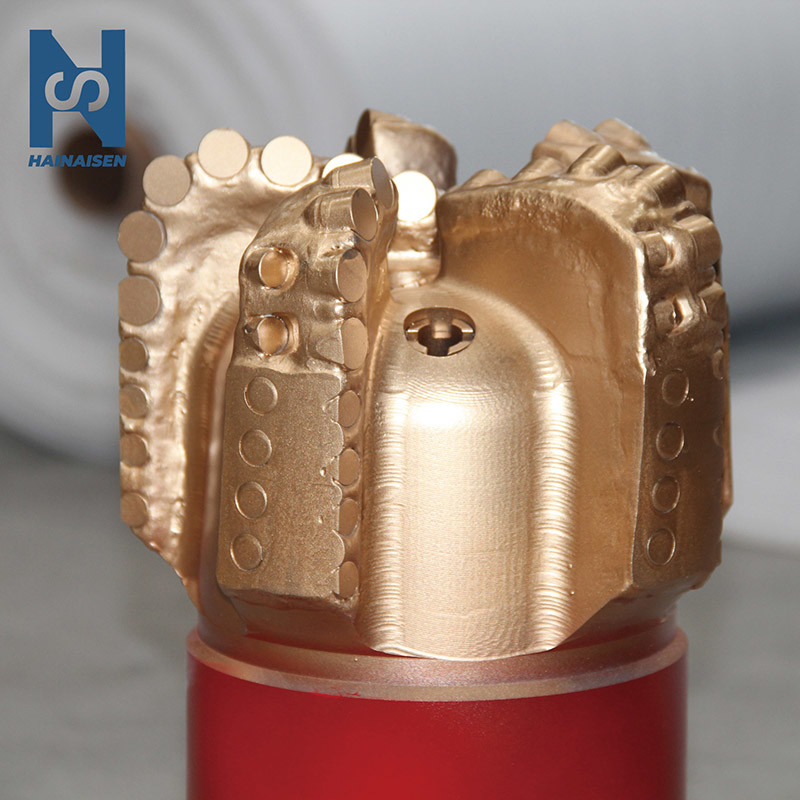

8.5 Inch 9 Blade PDC Rock Bit Forging Well Drilling

8.5 Inch 9 Blade PDC Rock Bit Forging Well Drilling
8.5 Inch 9 Blade PDC Rock Bit Forging Well Drilling 8.5 Inch 9 Blade PDC Rock Bit Forging Well Drilling

Large Image :  8.5 Inch 9 Blade PDC Rock Bit Forging Well Drilling

Product Details:
Place of Origin: China
Brand Name: Hainaisen
Certification: ISO 9001
Model Number: 8-1/2 HS6532TB
Payment & Shipping Terms:
Minimum Order Quantity: 5 pieces
Price: To be negotiable
Packaging Details: iron case
Delivery Time: 5-7 business days
Payment Terms: T/T, L/C
Supply Ability: 20pcs per day

8.5 Inch 9 Blade PDC Rock Bit Forging Well Drilling

Description
Diameter: 8 1/2inch, 215.9mm Blades: 4-9 Blades
Process: Forging, Welding Package: Bubble Wrap, Carton Box / Wooden Case
Use: Coal Mining,oil And So On Product Name: Cheap Price PDC Concave Center Well Drilling Drill Bit
High Light:

8.5 inch PDC rock bit

,

9 blade PDC rock bit

,

forging well drilling bit

8-1/2inch 5 Blades PDC Core Bits Oilfield Drill Bit Gauge Length



Diamond PDC drills are designed to operate at high penetration rates, even in applications that require higher insert and tool counts. Its unique cutting structure layout combines the penetration potential of traditional "single set" tool layouts with the life-extending properties of "multi-set" tool layouts, adding another dimension to drill stability and smooth operation. The result is 20% faster than traditional Pdc drills with minimal drill wear.



PRODUCT SPECIFICATIONS
Size 8 1/2 inch (Φ215.9mm)
Model number 8-1/2 HS6532TB
Body type steel body
Number of blade 5
Primary PDC cutter size 1613
Number of nozzle 7
Gauge length 60mm
API connection 4-1/2 REG
Make-Up Torque(KN.m) 16.3~21.7(4.79) KN·m(Mpa)
Application Oil & Nature Gas
Quality High Level
Package Iron Case
MOQ 5 Pieces
Certificate ISO 9001
OEM Yes
Customized Size Yes



8.5 Inch 9 Blade PDC Rock Bit Forging Well Drilling 0

8.5 Inch 9 Blade PDC Rock Bit Forging Well Drilling 1


Package&Delivery

Our bits will be shipped within 5 days after 40% full payment is received. They will be shipped by sea

or air according to your requirements. Please feel free to contact us if you have any other requests.


8.5 Inch 9 Blade PDC Rock Bit Forging Well Drilling 2


Our Principle

Our goal is to provide the best quality products and services to our clients. We have professional R&D team, domestic most advanced production equipment and precision instruments to reduce costs, speed up drilling and ensure safety.
Win-win cooperation is our ultimate pursuit. If you are looking for drill bit manufacturers, we are definitely who you want :)



FAQ

1. Who are we?
We are a drill bit manufacturer started from 2013. Our main prodcuts are pdc drill bit for oil&gas, coal mining drill bit, core bit, pdc cutters and other types of pdc bits.

Our promises: reasonable prices, short production period, and satisfactory after-sales services.

2. Can I expect a good-quality product?
Of course. Both our products and services are accredited to ISO9001. At the same time, mature production technology ensures that the quality meets international requirements.
Our bits have been exported to the Middle East, North America, South America, Australia, and other regions around the world, and gained a very good reputation.

3. How to order the products?
Send an inquiry of the details of the item or Model number you want. If there is no packing demand, we will take it as sea-way packing. Please attach a reference picture or any links to avoid any misunderstanding. Thanks so much!

4. What services can we provide?
Accepted Delivery Terms: FOB, CIF;
Accepted Payment Type: T/T, L/C, PayPal, Western Union,Escrow.

Also, we have a series of former and after services for our products.


Communication knows no boundaries, no matter where you are.

If you have any requests, please feel free to contact us at anytime!
