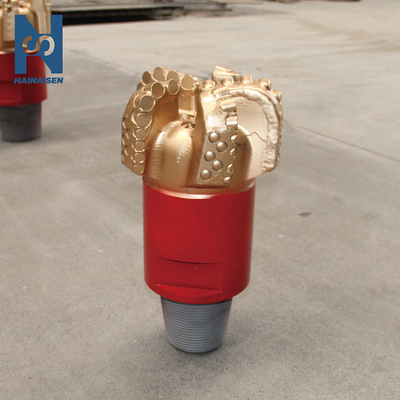

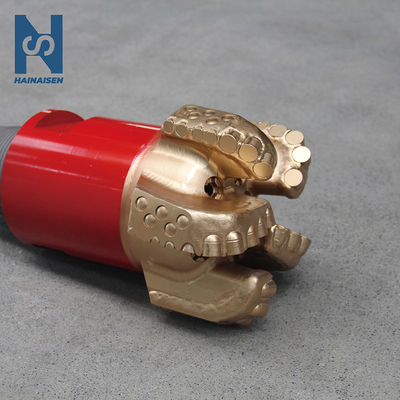

Double Row Steel Body PDC Bit 8.5 Inch Helical Blade Fixed Cutter Drill Bits

Double Row Steel Body PDC Bit 8.5 Inch Helical Blade Fixed Cutter Drill Bits
Double Row Steel Body PDC Bit 8.5 Inch Helical Blade Fixed Cutter Drill Bits Double Row Steel Body PDC Bit 8.5 Inch Helical Blade Fixed Cutter Drill Bits

Large Image :  Double Row Steel Body PDC Bit 8.5 Inch Helical Blade Fixed Cutter Drill Bits

Product Details:
Place of Origin: China
Brand Name: Hainaisen
Certification: ISO 9001
Model Number: 8-1/2 HS6512TA
Payment & Shipping Terms:
Minimum Order Quantity: 5 pieces
Price: To be negotiable
Packaging Details: iron case
Delivery Time: 5-7 business days
Payment Terms: T/T, L/C
Supply Ability: 20pcs per day

Double Row Steel Body PDC Bit 8.5 Inch Helical Blade Fixed Cutter Drill Bits

Description
Diameter: 8.5inch Or 215.9mm Name: Drilling Bits,PDC Drill Bit
Usage: Oil Exploration, Water Well Drilling Type: Core Drill Bit
Optimize: Force Balance Analysis Number Of Nozzle: 7
High Light:

8.5 inch Steel Body PDC Bit

,

double row Steel Body PDC Bit

,

helical blade fixed cutter drill bits

8-1/2in 5 Blades PDC Drill Bits Cutting Drill Bit PDC Cutters Rock Bit


Double row knives extend aggression and durability.
FEA software for tool distribution and layout makes drilling more efficient and reduces NPT.
The tool angle is optimized axially and radially by FBS (Force Balance Analysis) software, resulting in a more aggressive and durable drill.
Through a series of empirical calculations and optimization of the DOC (depth) of the drill bit, the tool enters the formation more reasonably.
The helical blade effectively improves the stability and ROP of the drill bit.


PRODUCT SPECIFICATIONS
Size 8 1/2 inch (Φ215.9mm)
Model number 8-1/2 HS6512TA
Body type steel body
Number of blade 5
Primary PDC cutter size 1613
Number of nozzle 7
Gauge length 72.4mm
API connection 4-1/2 REG
Make-Up Torque(KN.m) 16.3~21.7(4.79) KN·m(Mpa)
Application Oil & Nature Gas
Quality High Level
Package Iron Case
MOQ 5 Pieces
Certificate ISO 9001
OEM Yes
Customized Size Yes


Double Row Steel Body PDC Bit 8.5 Inch Helical Blade Fixed Cutter Drill Bits 0
Double Row Steel Body PDC Bit 8.5 Inch Helical Blade Fixed Cutter Drill Bits 1
Package&Delivery
Our bits will be shipped within 5 days after 40% full payment is received. They will be shipped by sea or air according to your requirements. Please feel free to contact us if you have any other requests. Thanks!


Double Row Steel Body PDC Bit 8.5 Inch Helical Blade Fixed Cutter Drill Bits 2


Our Principle
We adhere to the principle of high quality, great after-service and great communication. We also adhere to providing efficient products and excellent service. Please contact us if you are interested. We look forward to hearing from you!


FAQ

1. Is your company a distributor or a manufacturer?
A: We are a professional pdc drill bits manufacturer in China.

2. Can I expect a good-quality product?
Of course. All our activities are accredited to ISO9001, both in products and services, at the same time, mature production technology ensuring the quality satisfy international request.
Our bits are exported to the Middle East, Europe, North America, South America, Australia, and other countries and regions.


3. How to order the products?
Send an inquiry of the details of the item or Model number you want. If there is no packing demand, we will take it as sea-way packing. Please attach a reference picture to avoid any misunderstanding or any links from our website. Thanks so much!


4. Whether accpect customized products according to client's requirement?
Yes, we accept customization, no matter how much the purchase quantity is, and no matter what size and color you want. Send us a message, and we will let you know :)


Communication knows no boundaries, no matter where you are.

If you have any requests, please feel free to contact us at anytime!
