6 Blade Polycrystalline Sintered Diamond Drill Bits , Steel Polycrystalline Diamond Compact Bits

6 Blade Polycrystalline Sintered Diamond Drill Bits , Steel Polycrystalline Diamond Compact Bits
6 Blade Polycrystalline Sintered Diamond Drill Bits , Steel Polycrystalline Diamond Compact Bits 6 Blade Polycrystalline Sintered Diamond Drill Bits , Steel Polycrystalline Diamond Compact Bits

Large Image :  6 Blade Polycrystalline Sintered Diamond Drill Bits , Steel Polycrystalline Diamond Compact Bits

Product Details:
Place of Origin: China
Brand Name: Hainaisen
Certification: ISO 9001
Model Number: 8-5/8 HS66320B
Payment & Shipping Terms:
Minimum Order Quantity: 5 pieces
Price: To be negotiable
Packaging Details: iron case
Delivery Time: 5-7 business days
Payment Terms: T/T, L/C
Supply Ability: 20pcs per day

6 Blade Polycrystalline Sintered Diamond Drill Bits , Steel Polycrystalline Diamond Compact Bits

Description
Advantage: Excellent Post Service Usage: Petreleum, Well Water Drilling, Coal Mining
Size: 8 5/8 Inch, 212.7mm Certificate: ISO, API
Blade: 6 Material: Steel
High Light:

6 blade sintered diamond drill bits

,

Polycrystalline sintered diamond drill bits

,

steel polycrystalline diamond compact bits

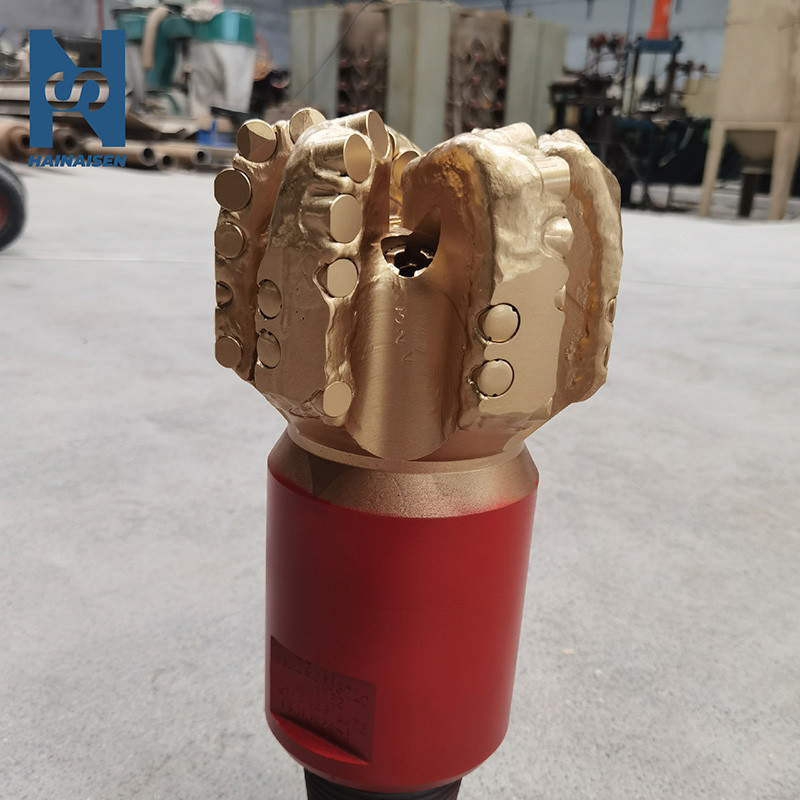

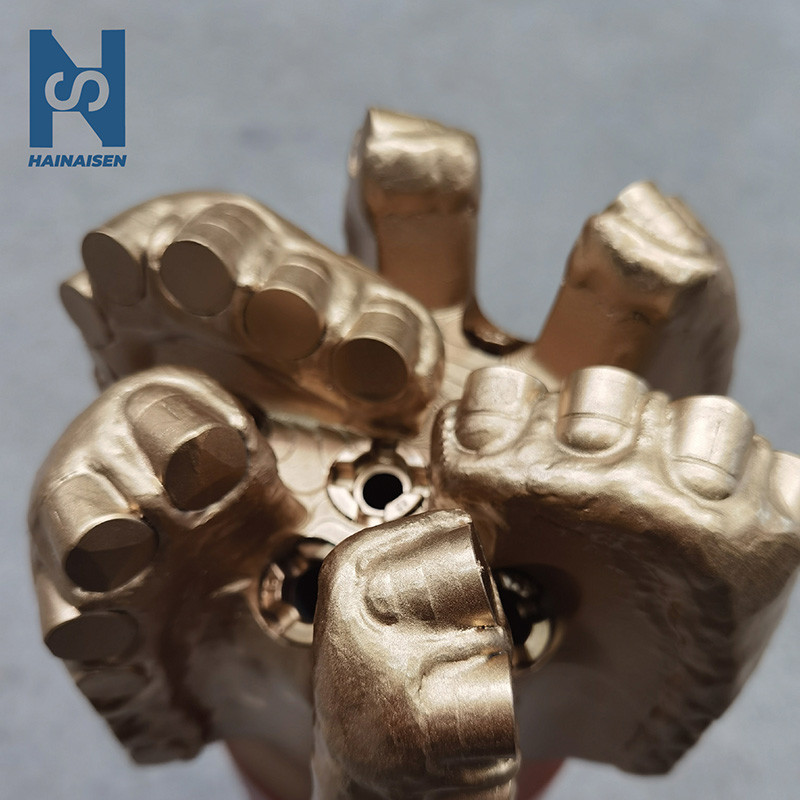

8-5/8 6 Blades Polycrystalline Diamond Composite Drill Bit Diamond Bit



Polycrystalline diamond composite drill bits are round composite chips that are inserted and welded on a cylindrical tool, which is inserted into the drill body to become a PDC bit. Mainly used for oil and gas field drilling. At present, oilfield composite drill bits are the most expensive and most demanding among all composite drill bits. It can be said that it is a noble in compound diamonds.



PRODUCT SPECIFICATIONS
Size 8 5/8 inch (Φ212.7mm)
Model number 8-5/8 HS66320B
Body type steel body
Number of blade 6
Primary PDC cutter size 1613
Number of nozzle 6
Gauge length 78mm
API connection 4-1/2 REG
Make-Up Torque(KN.m) 16.3~21.7(4.79) KN·m(Mpa)
Application Oil & Nature Gas
Quality High Level
Package Iron Case
MOQ 5 Pieces
Certificate ISO 9001
OEM Yes
Customized Size Yes


6 Blade Polycrystalline Sintered Diamond Drill Bits , Steel Polycrystalline Diamond Compact Bits 0
6 Blade Polycrystalline Sintered Diamond Drill Bits , Steel Polycrystalline Diamond Compact Bits 1

Package&Delivery
Our drills will ship within 5 days after 50% full payment is confirmed. Drills will be shipped by sea or air according to your requirements. Please feel free to contact us if you have any other questions. Thanks!



6 Blade Polycrystalline Sintered Diamond Drill Bits , Steel Polycrystalline Diamond Compact Bits 2


Our Principle
We adhere to the principle of high quality, high quality service and innovation. We also insist on providing efficient products and excellent service. If you are interested in our drills, please feel free to contact us. We look forward to working with you!



FAQ

1. Whether accept customized according to clients' requirements?
Yes, We accept customized products, no matter what size and what type. Please feel free to contact us.

2. About lead time and shipping time?
The lead time depends on the quantity of the order. Usually, it will take 3-5 days to ship to Tianjin Port or XI'AN Airport, China. For the small order or urgent order, we can send you by air once the order is confirmed.

3. Is it produced according to the standard? And can I expect a quality product?
Yes, all our activities are ISO9001: 2015 certified, both products and services. At the same time, mature production technology will ensure the quality meets international requirements. We have carried out strict inspection in production. Our drill bits are exported to Middle East, Europe, North America, South America, Australia and other countries and regions.



No matter where you are, communication is no boundaries. So if you have any questions, please contact us at any time :)
