Home ProductsPDC Oil Drill Bit

8in Diamond Drilling Bit Sintering 6 Blade PDC Water Well

Certification
China Shaanxi Hainaisen Petroleum Technology Co.,Ltd certification
China Shaanxi Hainaisen Petroleum Technology Co.,Ltd certification
I'm Online Chat Now

8in Diamond Drilling Bit Sintering 6 Blade PDC Water Well

8in Diamond Drilling Bit Sintering 6 Blade PDC Water Well
8in Diamond Drilling Bit Sintering 6 Blade PDC Water Well 8in Diamond Drilling Bit Sintering 6 Blade PDC Water Well

Large Image :  8in Diamond Drilling Bit Sintering 6 Blade PDC Water Well

Product Details:
Place of Origin: China
Brand Name: Hainaisen
Certification: ISO 9001
Model Number: 8-5/8 HS96330C
Payment & Shipping Terms:
Minimum Order Quantity: 5 pieces
Price: To be negotiable
Packaging Details: iron case
Delivery Time: 5-7 business days
Payment Terms: T/T, L/C
Supply Ability: 20pcs per day

8in Diamond Drilling Bit Sintering 6 Blade PDC Water Well

Description
Size: 8 5/8 Inch / 212.7mm Advantage: High Effciency, Reasonable Price
Packing: Steel Case Use: Coal Mining, Water Well
Processing Type: Sintering, Other Machine Type: Drilling Tools
High Light:

Hainaisen sintering Diamond Drilling Bit

,

8in Diamond Drilling Bit

,

Hainaisen 6 blade diamond pdc drill bit

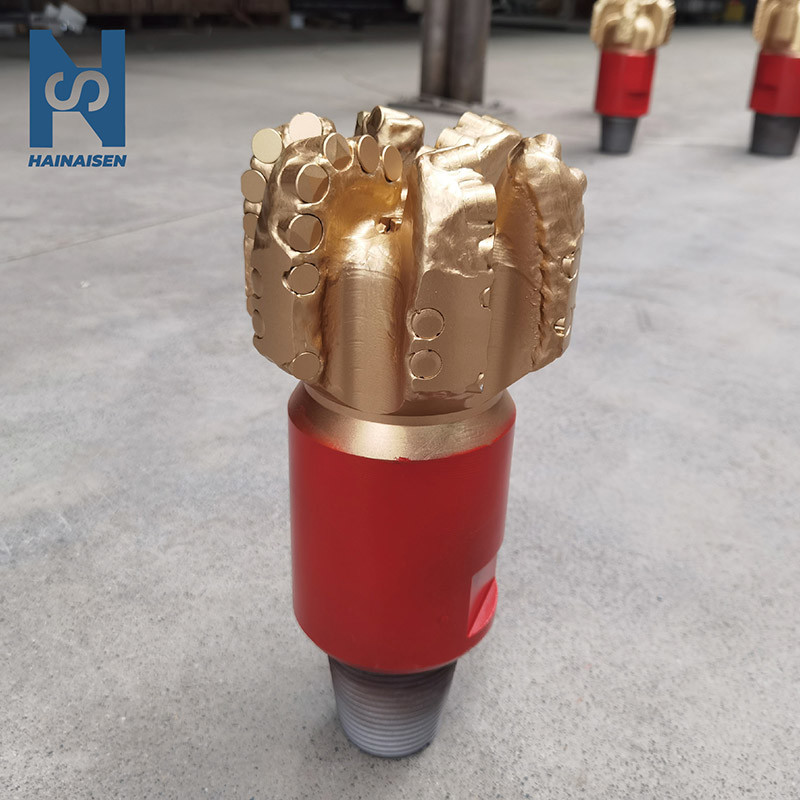

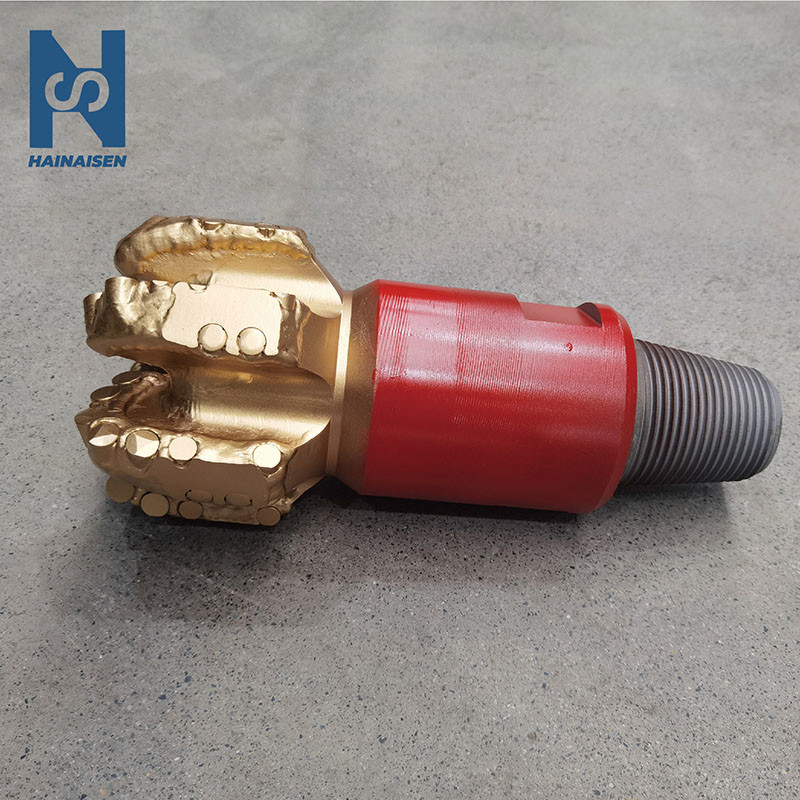

8-5/8 6 Blades Diamond Drill Bit Water Well PDC Drills Drilling Machine



The polycrystalline diamond composite drill bit is a round shape of the composite chip, which is inserted and welded on a cylindrical cutting tool, and the cutting tool is inserted on the drill bit body to become a PDC drill bit. PDC drills are less expensive than natural diamond drills. After the successful manufacture and use of PDC drills in the early 1970s, development has grown rapidly. It can be used at lower drilling pressure and higher rotational speed, with higher bit footage and lower cost per footage.



PRODUCT SPECIFICATIONS
Size 8 5/8 inch (Φ212.7mm)
Model number 8-5/8 HS96330C
Body type steel body
Number of blade 6
Primary PDC cutter size 1913
Number of nozzle 6
Gauge length 79.35mm
API connection 4-1/2 REG
Make-Up Torque(KN.m) 16.3~21.7(4.79) KN·m(Mpa)
Application Oil & Nature Gas
Quality High Level
Package Iron Case
MOQ 5 Pieces
Certificate ISO 9001
OEM Yes
Customized Size Yes


8in Diamond Drilling Bit Sintering 6 Blade PDC Water Well 0

8in Diamond Drilling Bit Sintering 6 Blade PDC Water Well 1

Package&Delivery

Our drills will ship within 5 days after 50% full payment is confirmed. The drill bits will be shipped by sea or air as your request. And if you have any other questions, please contact us freely. Thanks!

8in Diamond Drilling Bit Sintering 6 Blade PDC Water Well 2



Our Principle

We adhere to the principles of high quality, high quality service, and innovation. We also insist on providing efficient products and quality services. If you are interested in our drills, please feel free to contact us. We are looking forward to cooperating with you!



FAQ

1. Who are we?
We are a drill bit manufacturer started from 2013. Our main prodcuts are pdc drill bit for oil&gas, coal mining drill bit, core bit, pdc cutters and other types of pdc bits.



2. How can we guarantee the product quality?
We provide pre-production sample before mass production.
We provide final inspection before shipment.



3. Why you choose us?
We are factory of drill bits, so the price is affordable, and the quality can be controlled. Also, we can do customized products according to client's request.

Our promises: reasonable prices, short production period, and satisfactory after-sales services.



No matter where you are, communication is no boundaries. So if you have any questions, please contact us at any time :)
