8 5/8 PDC Well Drilling Bit Sintering Diamond PDC Rock Bit

Certification
China Shaanxi Hainaisen Petroleum Technology Co.,Ltd certification
China Shaanxi Hainaisen Petroleum Technology Co.,Ltd certification
I'm Online Chat Now

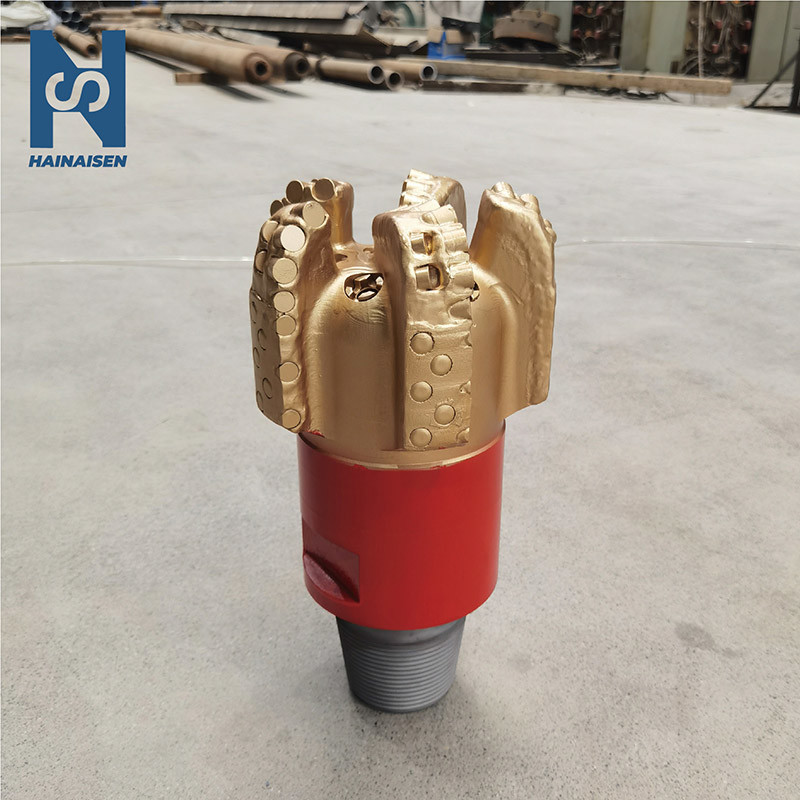

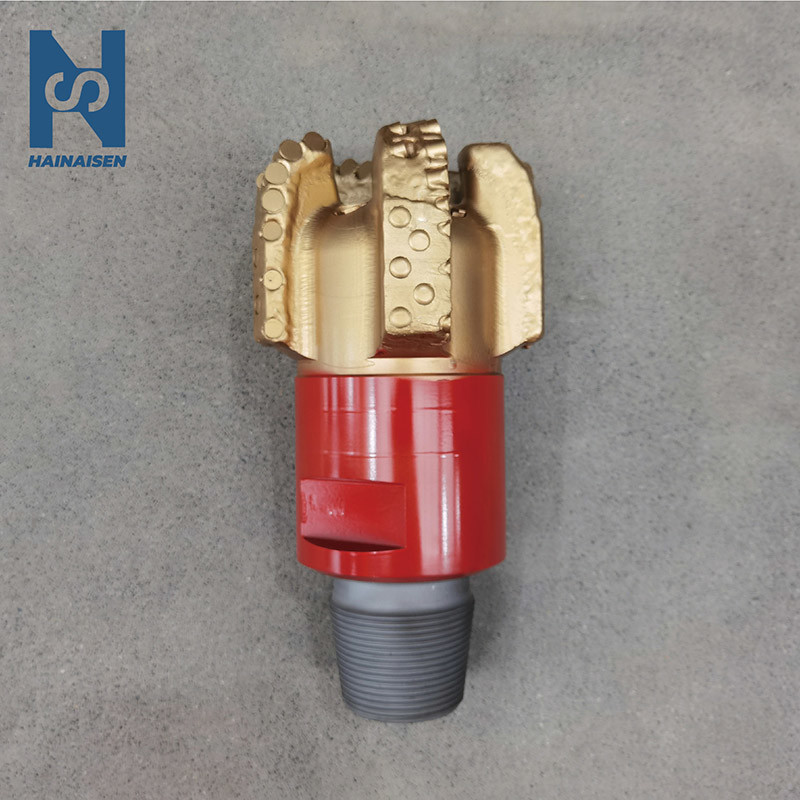

8 5/8 PDC Well Drilling Bit Sintering Diamond PDC Rock Bit

8 5/8 PDC Well Drilling Bit Sintering Diamond PDC Rock Bit
8 5/8 PDC Well Drilling Bit Sintering Diamond PDC Rock Bit 8 5/8 PDC Well Drilling Bit Sintering Diamond PDC Rock Bit

Large Image :  8 5/8 PDC Well Drilling Bit Sintering Diamond PDC Rock Bit

Product Details:
Place of Origin: China
Brand Name: Hainaisen
Certification: ISO 9001
Model Number: 8-5/8 HS95320C
Payment & Shipping Terms:
Minimum Order Quantity: 5 pieces
Price: To be negotiable
Packaging Details: iron case
Delivery Time: 5-7 business days
Payment Terms: T/T, L/C
Supply Ability: 20pcs per day

8 5/8 PDC Well Drilling Bit Sintering Diamond PDC Rock Bit

Description
Diameter: 8 5/8 Inch / 212.7mm Advantage: High Effciency, Good Price
Packing: Wooden Case Use: Oil Well Mining
Processing Type: Sintering Item Machine Type: Drilling Tool
High Light:

8 5/8 PDC Well Drilling Bit

,

sintering PDC Well Drilling Bit

,

8 5/8 PDC Rock Bit

8-5/8 5 Blade Rock Drill Bit Water Well Drill Bit Drilling Machine



PDC drills are less expensive than natural diamond drills. After the successful manufacture and use of PDC drills in the early 1970s, development has grown rapidly. It can be used at lower drilling pressure and higher rotational speed, with higher bit footage and lower cost per footage. Some domestic oil fields use diamond polycrystalline composite sheets to weld on the scraper, and good results have also been obtained.



PRODUCT SPECIFICATIONS
Size 8 5/8 inch (Φ212.7mm)
Model number 8-5/8 HS95320C
Body type steel body
Number of blade 5
Primary PDC cutter size 1913
Number of nozzle 6
Gauge length 54.2mm
API connection 4-1/2 REG
Make-Up Torque(KN.m) 16.3~21.7(4.79) KN·m(Mpa)
Application Oil & Nature Gas
Quality High Level
Package Iron Case
MOQ 5 Pieces
Certificate ISO 9001
OEM Yes
Customized Size Yes


8 5/8 PDC Well Drilling Bit Sintering Diamond PDC Rock Bit 0
8 5/8 PDC Well Drilling Bit Sintering Diamond PDC Rock Bit 1
Package&Delivery
Our drills will ship within 5 days after 50% full payment is confirmed.
The drill bits will be shipped by sea or air as your request. And if you have any other questions,
please contact us freely. Thanks!



8 5/8 PDC Well Drilling Bit Sintering Diamond PDC Rock Bit 2
Our Principle

We adhere to the principles of high quality, high quality service, and innovation. We also insist on providing efficient products and quality services. If you are interested in our drills, please feel free to contact us. We are looking forward to cooperating with you!



FAQ

1. Is your company a distributor or a manufacturer?
A: We are a professional Rock Bits manufacturer in China.

2. How can we guarantee the product quality?

We offer pre-production samples prior to mass production.
We offer final inspection before shipment.


3. Why you choose us?
We are a drill factory, so the price is affordable and the quality is controllable. In addition, we can customize products according to clents' requirement.
Our commitment: Reasonable price, short production cycle, satisfactory after-sales service.


4. How to order the products?
Send inquiries with detailed item descriptions or model numbers. If there is no packing requirement, we consider it as sea shipping packing. Please attach a reference image to avoid any misunderstanding or any link to our website so that we can understand better.


No matter how far away we are, communication is no boundaries. So if you have any questions, please contact us at any time :)
