Diamond Concave Drill Bit 4 5/8 Inch 5 Blades

Place of Origin China
Brand Name Hainaisen
Certification ISO 9001
Model Number 118HS3532SA
Minimum Order Quantity 5 pieces
Price To be negotiable
Packaging Details iron case
Delivery Time 5-7 business days
Payment Terms T/T, L/C
Supply Ability 20pcs per day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Size 4 5/8 Inch (Φ118mm) Use Oil&Gas
Body Type Steel Body Condition New
Market Global Video Outgoing-Inspection Provided
Showroom Location Xi'an, China Machinery Test Report Provided
High Light

diamond Concave Drill Bit


5 blades Concave Drill Bit


4 5/8 Inch Concave Drill Bit

Leave a Message
Product Description

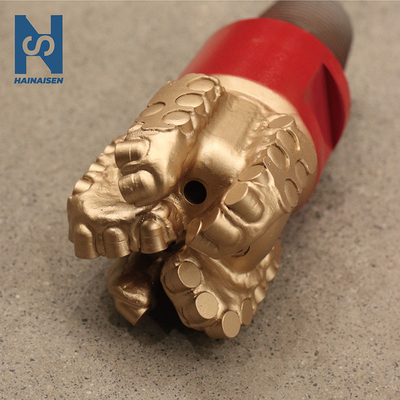

4 5/8 Inch 5 Blades Diamond Core Drill Bit Oil Drilling Bit



1. The crown surface of the bits is long cast surface which is suitable for abrasive formation.
2. The conical surface is shallow, so the bit has good orientation,good cleaning effect and strong aggressivity.
3. The relatively short gauge length can reduce the torque due to the contact between the bits and the well wall. The gauge area has been reduced and contact force of the gauge surface has been increased. The design can enhance the lateral cutting force of the bits which helps the control of the well deviation. The gauge surface is inset by single-row PDC cutters gauge teeth in order to improve abrasive resistance.
4. The exposed PDC cutter is welded at the bottom of the gauge surface,which prevents the bit from being sticked when it is lifted.


Size 4- 5/8 inch (Φ118mm)
Model number 118HS3532SA
Body type High Manganese Steel
Number of blade 5
Primary PDC cutter size 1308
Number of nozzle 5
Diameter of nozzle 12mm
Gauge length 34.67mm
API connection API 2-7/8 REG
Make-Up Torque(KN.m) 8.2~9.5(2.09)KN·m(Mpa)
Suitable formation Abrasive formation
Weight On Bit(WOB) 4-16 T
Rotary Speed(RPM) 60-240r/min
Application Oil & Nature Gas
Quality High Level
Package Iron Case
MOQ 5 Pieces
Certificate ISO 9001
Customized Size Yes


Diamond Concave Drill Bit 4 5/8 Inch 5 Blades 0

Diamond Concave Drill Bit 4 5/8 Inch 5 Blades 1




Our drill bits will be shipped out within xx days after the 50%/full payment is confirmed.

We ship the bits by sea, by air. Or if you have any other demands, please feel free to let us know.


Diamond Concave Drill Bit 4 5/8 Inch 5 Blades 2


Our Principle

We are insisting in the principle of high quality, superior service and the courage to innovate. We are also adhering to providing the efficient products and excellent services. If you are interested in our drill bits, please feel free to contact us. We are looking forward to cooperating with you!
