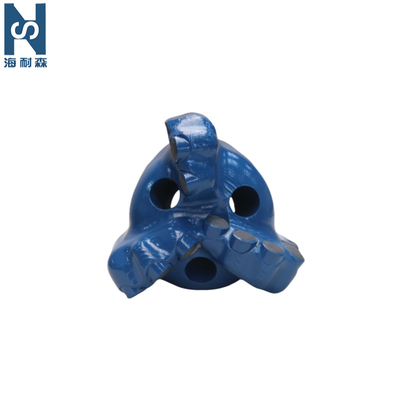

3 Nozzle PDC Rock Drill Bit 113mm API Low Pressure PDC Mining Bit

Place of Origin China
Brand Name HAINAISEN
Certification API & ISO 9001
Model Number φ113WA33
Minimum Order Quantity 10 pieces
Price To be negotiable
Packaging Details customized
Delivery Time 5-7 business days
Payment Terms T/T, L/C
Supply Ability 300pcs per day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Primary PDC Cutter Size 1613 Number Of Nozzle  3
Advantage High Level Body Type High Manganese Steel
Certificate ISO 9001 & API Customized Size YES
High Light

113mm PDC Rock Drill Bit

,

3 nozzle PDC Rock Drill Bit

,

API PDC Mining Bit

Leave a Message
Product Description

113mm PDC Rock Drill Bit PDC Drill Bit Well Drill Bit Mining Bit



Characteristics:

1. The crown surface of the bit is medium cast surface which makes the bit suitable for normal hard to hard formation.It can used in high rotation speed operation.

2. The mid-surface design has high stability, good orientation, high abrasiveness and high impact resistance. There are 3 water holes distributed on the cone surface, which can better clean the drill bit and remove cuttings when drilling, and prevent the repeated cutting of cutting teeth and cutting.

3. The staggered arrangement of teeth of the drill bit performs full coverage and cutting of the formation. The drill bit has evenly arranged teeth, and the back inclination is controlled at 15°-20°. The mechanical speed is high and the drilling is stable.

4. The gauge surface is welded by double-row alloyed gauge strip in separating way which makes the bit have strong abrasive resistance and good protecting gauge effect.

5. Different angles are adopted between the three blades of the drill bit, which can ensure high-speed fluid chip removal in the process of high rotation speed, avoid the drill bit from wrapping chips, and further improve the drilling efficiency.



PRODUCT SPECIFICATIONS
Size 113mm
Model number φ113WA33
Body type High Manganese Steel
Number of blade 3
Primary PDC cutter size 1613
Number of nozzle 3
Diameter of nozzle 16
Gauge length 31.2
API connection 73 with stingers
Suitable formation F≤12
Application Mining&Coal&Well
Quality High Level
Package Corrugated carton
MOQ 10 Pieces
Certificate ISO 9001
OEM Yes
Customized Size Yes





Package&Delivery
Our drills will ship within 5 days after 50% full payment is confirmed. The drill bits will be shipped by sea or air as your request. And if you have any other questions, please contact us freely. Thanks!

3 Nozzle PDC Rock Drill Bit 113mm API Low Pressure PDC Mining Bit 0



Our Principle

We adhere to the principles of high quality, high quality service, and innovation. We also insist on providing efficient products and quality services. If you are interested in our drills, please feel free to contact us. We are looking forward to cooperating with you!



FAQ

1. Who are we?
We are a drill bit manufacturer started from 2013. Our main prodcuts are pdc drill bit for oil&gas, coal mining drill bit, core bit, pdc cutters and other types of pdc bits.



2. How can we guarantee the product quality?
We provide pre-production sample before mass production. We provide final inspection before shipment.



3. Why you choose us?
We are factory of drill bits, so the price is affordable, and the quality can be controlled. Also, we can do customized products according to client's request.


Our promises: reasonable prices, short production period, and satisfactory after-sales services.
