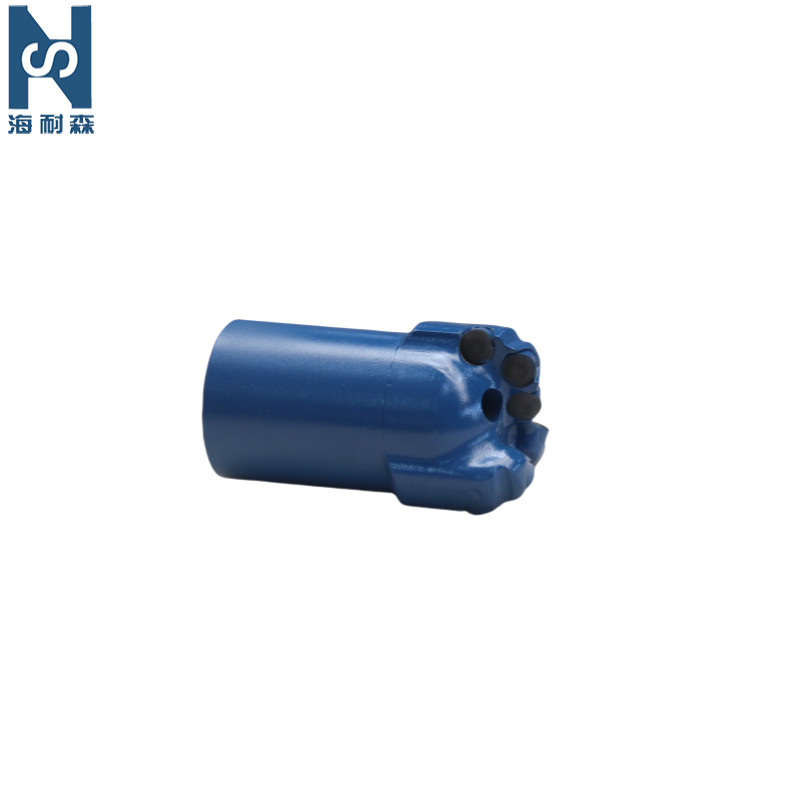

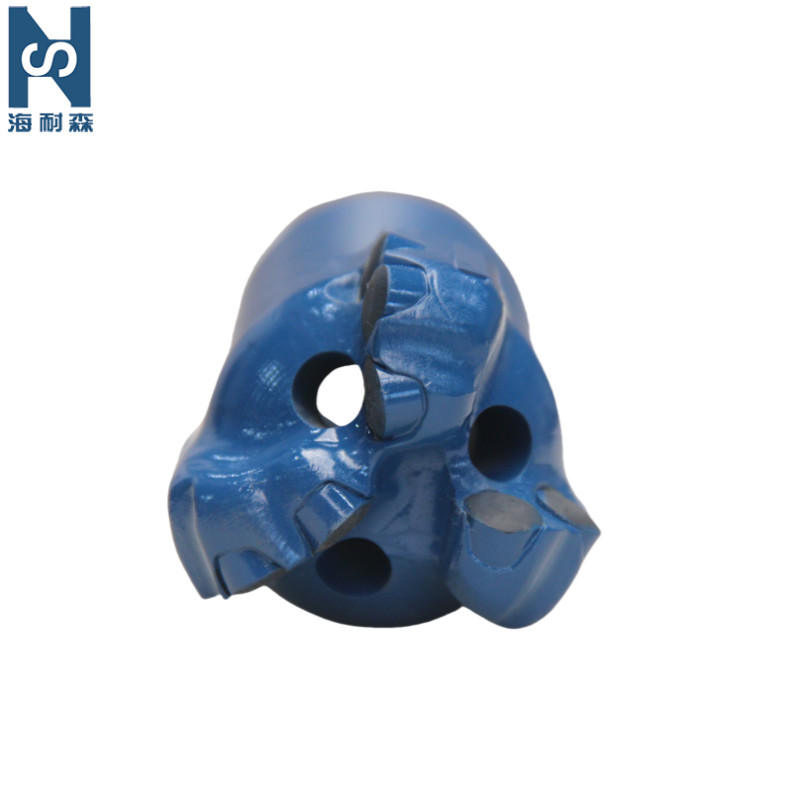

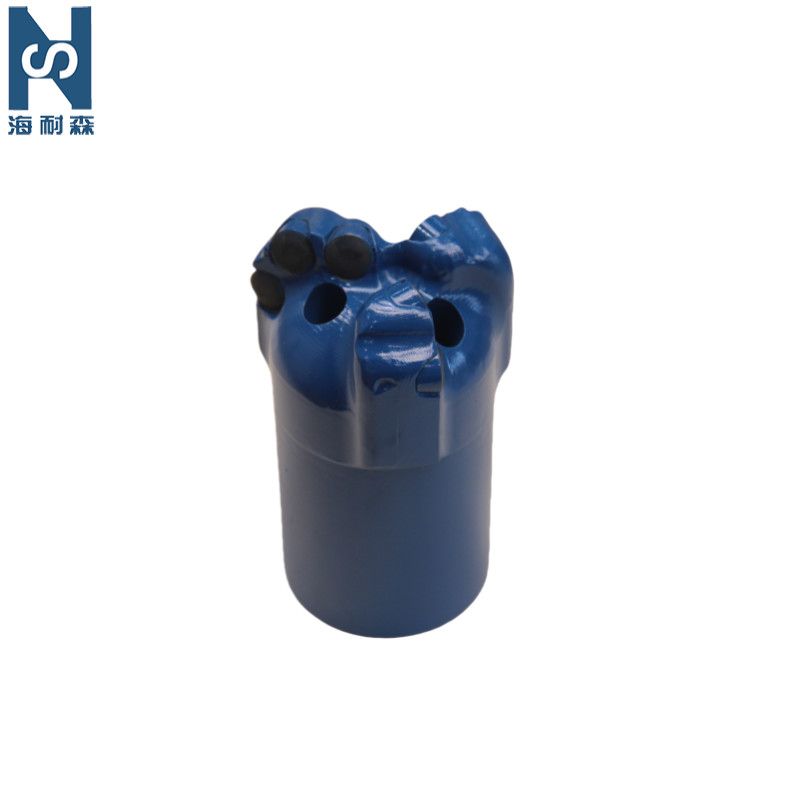

3" API Polycrystalline Diamond Drill Bits Rock Mining Drill Steel

3" API Polycrystalline Diamond Drill Bits Rock Mining Drill Steel
3" API Polycrystalline Diamond Drill Bits Rock Mining Drill Steel 3" API Polycrystalline Diamond Drill Bits Rock Mining Drill Steel 3" API Polycrystalline Diamond Drill Bits Rock Mining Drill Steel

Large Image :  3" API Polycrystalline Diamond Drill Bits Rock Mining Drill Steel

Product Details:
Place of Origin: China
Brand Name: HAINAISEN
Certification: API & ISO 9001
Model Number: φ75WA23
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: To be negotiable
Packaging Details: customized
Delivery Time: 5-7 business days
Payment Terms: T/T, L/C
Supply Ability: 300pcs per day

3" API Polycrystalline Diamond Drill Bits Rock Mining Drill Steel

Description
Name: PDC Rock Drill Bit Primary PDC Cutter Size: 1308
Advantage: Best Service Number Of Nozzle : 3
API Connection : 50 With Stingers Quality: High Level
High Light:

3" polycrystalline diamond drill bits

,

API polycrystalline diamond drill bits

,

rock mining drill steel

3inch PDC Rock Drill Bit PDC Drill Bit Mining Drilling Bit



Characteristics:

1.The crown surface of the drill bit is a medium-polished surface, which is suitable for medium-hard to hard and highly abrasive formations and high-speed operations.

2. The design of medium cast surface has the advantages of good stability,good guidance quality and strong impact resistance. There are 3 nozzles in the conical surface which can clean the bit better and clean away the rock debris so that it can prevent repeatedly cuting rock debris during the drilling.

3. The staggered arrangement of teeth of the drill bit performs full coverage and cutting of the formation. The drill bit has evenly arranged teeth, and the back inclination angle is controlled at 15°-20°. The mechanical speed is high, and the drilling is stable.

4. The gauge surface is inlaid with spaced double-row alloy gauge bars, with enhanced wear resistance and good gauge gauge effect.

5. The angle of the 3 blades is different, so the fluid rock debris can expel from the hole quickly and the bit will not be wrapped by the mud when it drills in a high rotary speed. The efficiency will be improved.



PRODUCT SPECIFICATIONS
Size 75mm
Model number φ75WA23
Body type High Manganese Steel
Number of blade 3
Primary PDC cutter size 1308
Number of nozzle 3
API connection 50 with stingers
Suitable formation F≤12
Application Mining&Coal&Well
Quality High Level
Package Corrugated carton
MOQ 10 Pieces
Certificate ISO 9001
OEM Yes
Customized Size Yes





3" API Polycrystalline Diamond Drill Bits Rock Mining Drill Steel 0

3" API Polycrystalline Diamond Drill Bits Rock Mining Drill Steel 1



Package&Delivery
Our drills will ship within 5 days after 50% full payment is confirmed. The drill bits will be shipped by sea or air as your request. And if you have any other questions, please contact us freely. Thanks!

3" API Polycrystalline Diamond Drill Bits Rock Mining Drill Steel 2

Our Principle

We adhere to the principles of high quality, high quality service, and innovation. We also insist on providing efficient products and quality services. If you are interested in our drills, please feel free to contact us. We are looking forward to cooperating with you!



FAQ

1. Are you a trading company or manufacturer?

We have been a professional manufacturer of PDC bits since 2013.



2. Whether accept customized according to clients' requirements?

Yes, We accept customized products, no matter what size and what type. Please feel free to contact us.



3. About lead time and shipping time?

The lead time depends on the quantity of the order. Usually, it will take 3-5 days to ship to Tianjin Port or XI'AN Airport, China. For the small order or urgent order, we can send you by air once the order is confirmed.



4. Is it produced according to the standard?

Yes, all our activities are accredited to ISO9001: 2015, both in products and services.
