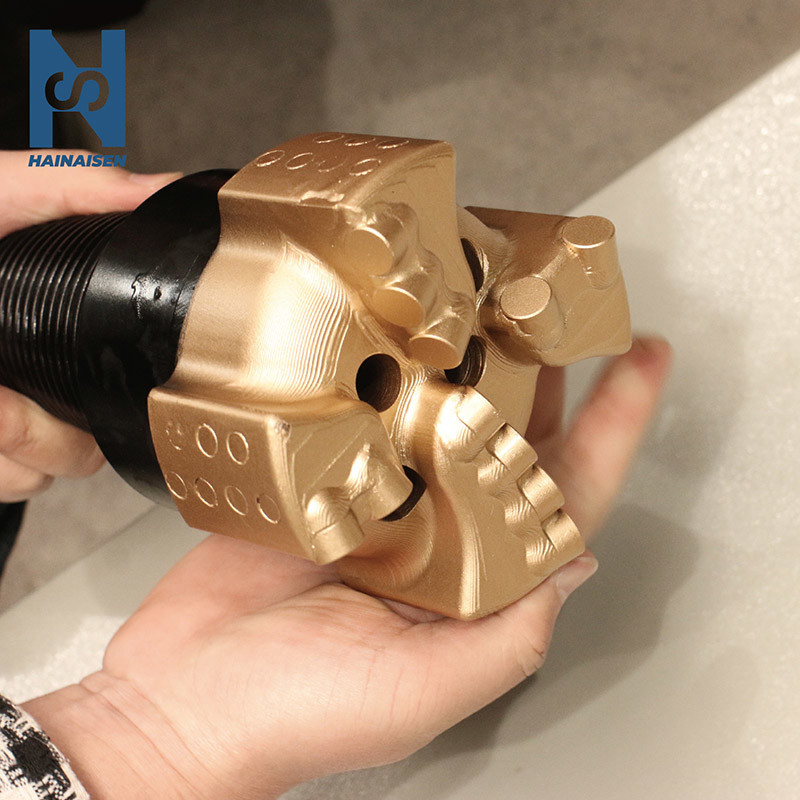

4 5/8" Well Drilling Directional Drill Bit 4 Blades Tungsten Carbide

Place of Origin China
Brand Name Hainaisen
Certification ISO 9001
Model Number 4 Blades
Minimum Order Quantity 10 pieces
Price To be negotiable
Packaging Details customized
Delivery Time 5-7 business days
Payment Terms T/T, L/C
Supply Ability 300pcs per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Directional Drill Bit Usage Minning , Coal , Well Water
Machine Steel Body Customized Size Yes
Material Tungsten Carbide Machine Type Drilling Equipment
High Light

Well Drilling Directional Drill Bit


4 5/8" Directional Drill Bit


Directional Drill Bit 4 Blades

Leave a Message
Product Description

4 5/8 Inch Directional Drill Bit 4 Blades Well Drill Bits PDC Cuttter



1. The bit crown is a flat polished surface, suitable for hard non-abrasive formations. Can be used for strongly directional operations with good directionality.

2. The top of the drill bit is a shallow conical surface, which has good orientation, strong cleaning power and strong aggressiveness. 4 nozzles on the drill bit help remove cuttings from the bottom of the hole.

3. The drill bit is inserted into the PDC cutter in a counterclockwise staggered manner, so that the cutter can cut any area of the well with good cutting effect, and also reduces the number of drill bits to drill a hole. And the bit is at high speed and more stable.

4. The high-impact tool is embedded symmetrically on the drill. Caster angle is 13° to 16°. Knife model 1308 is very aggressive.

5. The blade of this drill is designed as a micro helix. The gauge surface is inlaid/inlaid with PDC knife gauge teeth to enhance the wear resistance and improve the gauge effect. Therefore, the tool can be fully utilized to improve the stability of the drill.


Size 4- 5/8 inch (Φ113mm)
Model number 113DA24
Body type High Manganese Steel
Number of blade 4
Primary PDC cutter size 1308
Number of nozzle 4
Diameter of nozzle 15mm
Gauge length 43.5mm
API connection API 2-7/8 REG
Suitable formation F≤12
Application Mining&Coal&Well
Quality High Level
Package Corrugated carton
MOQ 10 Pieces
Certificate ISO 9001
Customized Size Yes



4 5/8" Well Drilling Directional Drill Bit 4 Blades Tungsten Carbide 0
4 5/8" Well Drilling Directional Drill Bit 4 Blades Tungsten Carbide 1
Our drills will ship within 5 days after 50% full payment is confirmed. The drill bits will be shipped by sea or air as your request. And if you have any other questions, please contact us freely. Thanks!
4 5/8" Well Drilling Directional Drill Bit 4 Blades Tungsten Carbide 2

Our Principle

We adhere to the principles of high quality, high quality service, and innovation. We also insist on providing efficient products and quality services. If you are interested in our drills, please feel free to contact us. We are looking forward to cooperating with you!



Q1: Can I expect a good-quality product?
A: Of course, all our activities in products and services are ISO9001 certified. At the same time, mature production technology ensures the quality meets international requirements.
Q2: Whether accpect customized products according to client's requirement?

A: Yes, we accept customization, no matter how much the purchase quantity is.
Q3: Are you a manufacturer or trading company?

A: We have manufactured pdc drill bits since 2013, so we have price advantages.
Q4: What is your trade terms?

A: We offer EXW, FOB, CIF.

Q5: What is your payment terms?
A: Payment terms: normally 30% deposit, balance 70% before shipment.
Payment methods: T/T, L/C.
